0.1dB FTTH Fiber Optic Adapters fast/quick connector SC UPC/SC APC

0.1dB FTTH Fiber Optic Adapters fast/quick connector SC UPC/SC APC
0.1dB FTTH Fiber Optic Adapters fast/quick connector SC UPC/SC APC 0.1dB FTTH Fiber Optic Adapters fast/quick connector SC UPC/SC APC 0.1dB FTTH Fiber Optic Adapters fast/quick connector SC UPC/SC APC 0.1dB FTTH Fiber Optic Adapters fast/quick connector SC UPC/SC APC

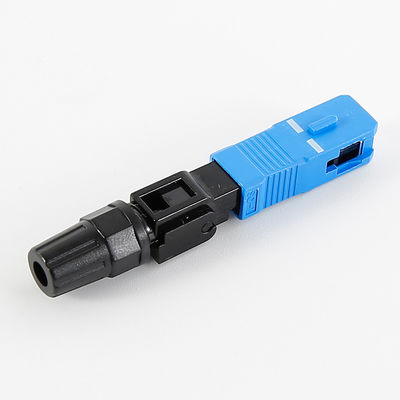

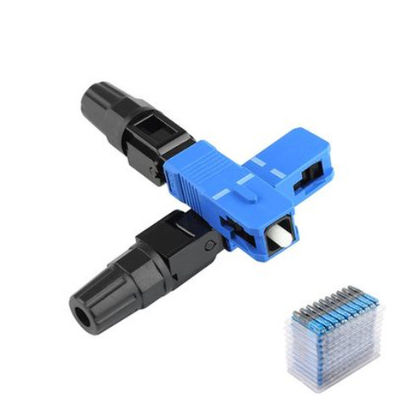

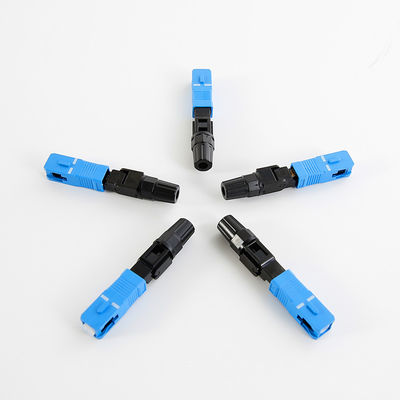

Large Image :  0.1dB FTTH Fiber Optic Adapters fast/quick connector SC UPC/SC APC

Product Details:
Place of Origin: China
Brand Name: Topulink
Model Number: SC fast connectors
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable

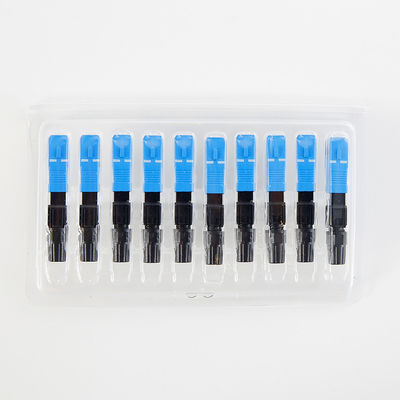

Packaging Details: Plastic boxes
Delivery Time: 3Days
Payment Terms: T/T, Western Union
Supply Ability: 10000

0.1dB FTTH Fiber Optic Adapters fast/quick connector SC UPC/SC APC

Description
Use: FTTH Repeatability: 0.1dB
Products Name: LC APC SC Ftth Fiber Optic Fast Connector Interchangeability: 0.2db
Connector Type: SC,LC,FC,SC/UPC Warranty: 1 Year
High Light:

FTTH fiber optic fast connector

,

SC UPC Fiber Optic Adapters

,

0.1DB Fiber Optic Adapters

0.1dB FTTH Fiber Optic Adapters fast/quick connector SC UPC/SC APC



Description:

ZGT provide SC and SC/APC fast field assembly connectors, for 3.0mm round cable and 2.0*3.0mm flat cable.The monthly production capacity is 500k pcs, mainly used in FTTH, FTTX and Outside Plant.

Features:

  • Pre-embedded fiber and pre-polished ceramic ferrule (PC/APC) ensures excellent optical performance
  • Matching oil (Same refractive index as fiber) used in the high precision core parts to ensure the high stability and reliability of the connector
  • ALL connectors tested for insertion loss and return loss before leaving the factory
  • Less than 1 minute operation time, easy to assembly
  • Over 98% splicing success rate for single time assemble, total splicing success rate more than 99
  • More than 10 times for re-assembling
  • Life Span over 20 years



Specifications



Product Name
fiber fast connector
Connector Type
SC
Ferrule
UPC or APC
Fiber Mode
SM MM
Application
FTTH
Insertion Loss
0.1DB
Return Loss
≤ -40dB
Operation Temperature
-40~+75℃



Highlights
No-epoxy/no-polish or other consumables required
Quick and easy installation, less than one minute per connector on average
100 percent factory tested for insertion loss
Typical insertion loss of 0.2 dB for UPC and 0.3 dB for APC connectors
Factory-polished end face
Low insertion loss and high-performance return loss
Reliable, proven mechanical splice technology
Over 70 million connectors deployed in various applications
No need for electrical power for ovens or lights
Reduces complexity
Angled Fiber Stub
Inside all OptiSnap connectors regardless of polish to maximize back reflection performance



Standards
Intermateability Connectors are FOCIS
Compliant with TIA/EIA 604-
3 (SC), FOCIS 10 (LC)
Approvals and Listings Passed EIA/TIA 568-B.3
Design and Test Criteria Telcordia GR-1209 and GR-1221



Technical Specifications
Insertion Loss Average ≤ 0.2dB,Max ≤ 0.4dB
Return Loss UPC ≥ 40dB, 55dB typical at 25 degrees C + 5degrees
APC ≥ 55dB, 60dB typical at 25 degrees C +/- 5degrees
One-Time Assembly Yield ≥ 97%
Assembly Repeatability ≥ 5 times
Average Assembly Time ≤ 3 minutes
Life-Time ≥ 30 years
Tensile Strength ≥ 30N(2.0x3.0 drop cable.)
Operation Temperature -40℃~+85℃





0.1dB FTTH Fiber Optic Adapters fast/quick connector SC UPC/SC APC 00.1dB FTTH Fiber Optic Adapters fast/quick connector SC UPC/SC APC 1



Packing

1. All products will be packed in carton, so the product can get effective protection to avoid damage.

2. Packaging according to customer requirement.

Shipping

1. We shipping via DHL / FedEx / TNT etc for samll orders. Yow can get your packages in about 3-5 days all over the world.

2. For big order, we will arrange Air cargo for your shipment, so it will be much cheaper than DHL, UPS etc.

3. You can choose your own shipping agent, we will provide good cooperation for it.
