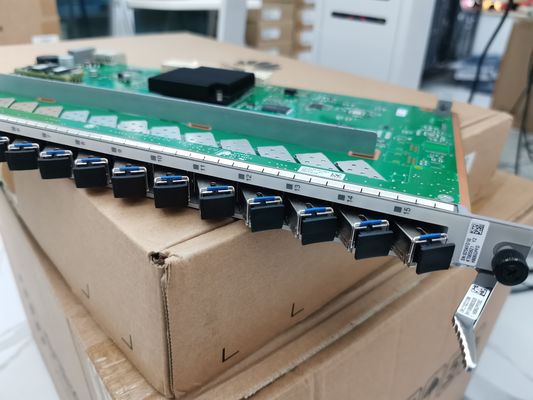

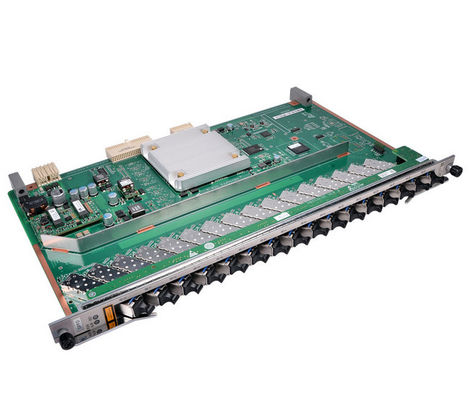

HuaWei MA5683T MA5608T GPFD 16port GPON FTTH OLT Service Board with 16 port C+ Modules

HuaWei MA5683T MA5608T GPFD 16port GPON FTTH OLT Service Board with 16 port C+ Modules
HuaWei MA5683T MA5608T GPFD 16port GPON FTTH OLT Service Board with 16 port C+ Modules
HuaWei MA5683T MA5608T GPFD 16port GPON FTTH OLT Service Board with 16 port C+ Modules HuaWei MA5683T MA5608T GPFD 16port GPON FTTH OLT Service Board with 16 port C+ Modules HuaWei MA5683T MA5608T GPFD 16port GPON FTTH OLT Service Board with 16 port C+ Modules HuaWei MA5683T MA5608T GPFD 16port GPON FTTH OLT Service Board with 16 port C+ Modules

Large Image :  HuaWei MA5683T MA5608T GPFD 16port GPON FTTH OLT Service Board with 16 port C+ Modules

Product Details:
Place of Origin: Guangdong, China
Brand Name: HuaWei
Model Number: GPFD
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable

HuaWei MA5683T MA5608T GPFD 16port GPON FTTH OLT Service Board with 16 port C+ Modules

Description
Fiber Type: GPON OLT Name: GPFD
Ports: 16ports Or 8ports Module: 16 Or 8 SFP Modules Included
Selling Units: Single Item Single Package Size : 50X25X10 Cm
Single Gross Weight: 3.000 Kg Package Type: NEW IN THE HUAWEI BOX
High Light:

GPON Optical Line Terminal

,

MA5683T GPON Optical Line Terminal

,

GPON 16pcs Modules

 HuaWei MA5683T MA5608T GPFD 16port GPON FTTH OLT Service Board with 16 port C+ Modules


Product Attributes

1. The MA5680T series is based on Huawei's iMAP hardware platform and IAS software platform, with advanced architecture and design concepts.
Backplane switching capacity is 3.2Tbit / s.
2. The bidirectional switching capacity of the MPU is up to 480 Gbit / s.
3. The GPBD board supports eight GPON ports. The whole frame supports up to 8K ONTs.
4. The EPBD board supports eight EPON ports. According to the split ratio of 1: 64, the EPBD board supports up to 8K ONTs.

5. The MA5680T and Huawei Technologies Co., Ltd. share the development platform for broadband equipment, and also accumulate Layer 2 and Layer 3 features of broadband equipment, providing user-oriented and future-oriented functional support.
GPON access capability

* High-speed, support downlink 2.488Gbit / s, uplink 1.244Gbit / s transfer rate.
* The maximum logical distance of the ONT is 60 km, and the physical distance between the furthest and nearest ONTs is 20 km.
* High-splitter ratio, 8-port GPON access board supports 1: 128 splitter ratio, thereby increasing capacity, saving fiber resources.
* High-density, providing 8-port or 4-port GPON access board, to improve system capacity.
* Powerful GPON / EPON integrated access capabilities

GPON access to the board

* 8-port high-density GPON card
* Support for SFP pluggable optical modules (Class B / Class B + / Class C + optical modules are optional)
* Each PON port supports 4k GEM ports and 1k T-CONTs
* Maximum support 1: 128 split ratio
* Long-emitting ONT detection and isolation
* Flexible DBA operating mode, low latency or high bandwidth efficiency mode
In this case,
* Fast Ethernet Fast Ethernet access card

Each board is 48 * FE interface, SFP pluggable optical module
Single-fiber bi-directional optical module support
The DHCP relay agent and the PPPoE relay agent are supported
Support Ethernet OAM
In this case,
· Frame size (width and depth)

MA5680T Insert Frame: 490mm × 275.8mm × 447.2mm
MA5683T insert frame: 442mm × 283.2mm × 263.9mm
In this case,
· Runtime environment
· Operating ambient temperature: -25 ° C to + 55 ° C
In this case,
· Power input

-48 Vdc, support dual power input ports
Operating voltage range: -38.4 V to -72 V



HuaWei MA5683T MA5608T GPFD 16port GPON FTTH OLT Service Board with 16 port C+ Modules 0HuaWei MA5683T MA5608T GPFD 16port GPON FTTH OLT Service Board with 16 port C+ Modules 1HuaWei MA5683T MA5608T GPFD 16port GPON FTTH OLT Service Board with 16 port C+ Modules 2


































Highlights Convergence And Access Integration:

• Provides super large convergence switching capacity. Specifically, an MA5600T series device supports 3.2 Tbit/s backplane
capacity, 1,920 Gbit/s switching capacity, and 512,000 MAC addresses.
• Provides super high-density cascading capability. Specifically, an MA5600T series device supports a maximum of 46 x 10GE
or 768 GE services, with no additional convergence switches.















































Specification

Specification GPFD
Port quantity 16
MAX Split ratio (Class B+) 1: 64
MAX Split ratio (Class C+/Class C++) 1: 128
D-CMTS No
ONU-based shaping Yes
Optical performance monitor Yes
RSSI detection and controlled optical signal transmission of the optical module Yes
ONU-based rate limitation
CAR group
Temperature query and high temperature alarm Yes
Automatic power shutdown in case of a high temperature Yes
Maximum differential fibre distance (km) 40
Maximum Number of Service Flows Supported by the Board 16368
Maximum Number of MAC address Supported by the Board 32768
Available DBA bandwidth (based on single port) (kbit/s) 1238784
Number of T-CONT supported by each GPON port 1024
Board supporting downstream FEC Yes
Board supporting upstream FEC Yes
Rogue ONT detection Yes
Number of ONUs supported by a GPON port 128
Number of GEM ports supported by each board 16384
Number of GEM ports supported by each GPON port 3872
Number of service ports supported by each GEM port 8184
HQoS (four levels)

H802GPFD: ×

H805GPFD: √

9216-byte Jumbo frames

H802GPFD: ×

H805GPFD: √

Power budget supported by a GPON port

Class B+ (28.5 dB, mostly used),

Class C+ (32 dB long reach transmission)

Class C++: 35 dB

Minimum bandwidth supported by a T-CONT

1 Mbit/s (in the minimum delay mode)

128 kbit/s (in the maximum bandwidth usage
