Product Details:
|
Product Name: | ETTO | Ports: | 8-port - ETTO |
---|---|---|---|
Optical Connector Type: | SC/PC | XPON: | 10G EPON |
Single Package Size : | 395.5mm X 22.5 Mm X 225 Mm (H XW X D) | Weight: | 0.965kg |
Power Consumption: | Static 5W; Max.: 80W; Typical: 70W | Form: | XFP / SFP+ |
High Light: | C300 OLT Optical Line Terminal,EPON 8pcs Modules,C320 Zte Olt |

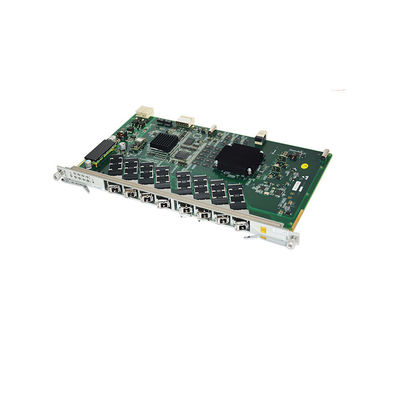

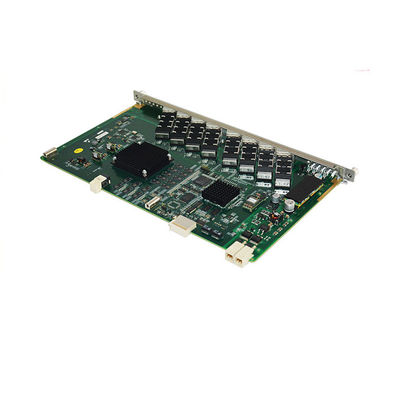

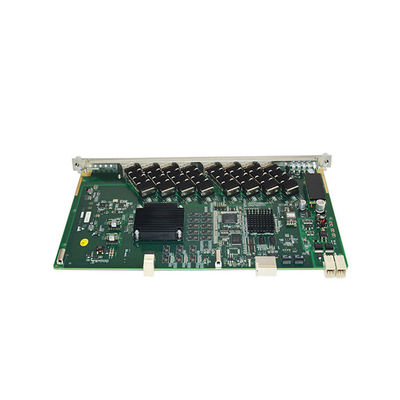

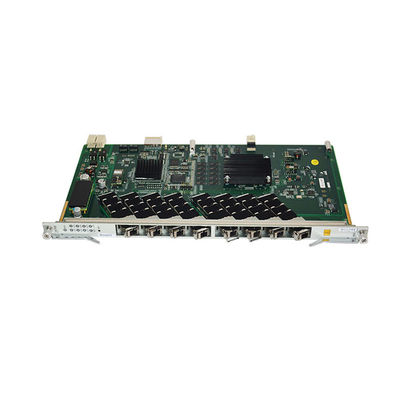

ZTE C320 C300 OLT board ETTO PR30 symmetrical module 8-port 10G EPON business board
ETTO Basic Principle Introduction:
Control module to complete the single board software loading, operation control, management and other functions.
Exchange module to achieve the convergence of 8 EPON port signals.
Interface module to realize the mutual conversion between EPON optical signal and Ethernet message.
The power supply module provides a working power supply for each function module in a single board.
The clock module provides a working clock for each function module in a single board.
Application of ETTO
Subscriber Card |
XPON |
Optical Module |
Used for OLT |
8-port - ETTO |
10G EPON |
PR30, PRX30 |
C300 / C320 |
PR30 / PRX30 Optical Module:
Form |
Rate |
Optical Connector Type |
Fiber Type |
Max. Split Ratio |
XFP / SFP+ |
10Gb/s |
SC/PC |
Single Mode |
1:128 |
Technical Parameter
Dimension |
395.5mm x 22.5 mm x 225 mm (H xW x D) |
Power Consumption |
Static 5W; Max.: 80W; Typical: 70W |
Weight |
0.965kg |
Operating Temp. |
48V |
Specification | ETTO |
Port quantity | 8 |
MAX Split ratio | 1: 128 |
Forwarding Rate | 80Gbit/s |
Rate model |
Symmetric Rate model Asymmetric Rate Model |
Maximum Number of LLID | 256 |
Maximum Number of Service Flows Supported by the Board | 16368 |
Maximum frame length | 2052 bytes |
Maximum Number of MAC | 16384 |
Maximum differential fibre distance (km) | 40 |
Board supporting downstream FEC | Yes |
Board supporting upstream FEC | Yes |
CAR | Yes |
Temperature query and high temperature alarm | Yes |
Automatic power shutdown in case of a high temperature | Yes |
Rogue ONT detection | Yes |
1588v2 |
EPON model:Yes 10G EPON model:No |
High temperature automatic concern | Yes |
Rogue ONT Detection and Isolation Support | Yes |
Working temperature | -40℃~+65℃ |
Maximum Power waste | 65w |
Dimensions (W x D x H) | 490 mm x 325mm x 75mm |
Item | Technique parameters |
GTGO | 8GPON Port (SFP Optical Module:Class B+,C+,C++), Version G/K |
GTGH | 8GPON Port (SFP Optical Module:Class B+,C+,C++),Version G/K |
ETGO | 8EPON Port (SFP Optical Module:PX20+), Version D/F/K |
ETGH | 8EPON Port (SFP Optical Module:PX20+), Version D/F/K |
GTXO | 8*10G GPON Port (SFP Optical Module:XGPON N1/XGPON N2) |
ETTO | 8*10G EPON Port (SFP Optical Module:10GEPON PRX30/10GEPON PR30) Version D/F/K |
