Product Details:
|
Output Type: | Single | Input Voltage: | 220V, 220V |
---|---|---|---|
Product Name: | 731 A41 | Output Power: | >500W |
Output Frequency: | 45-65HZ | Output Voltage: | 48V |
Single Package Size : | 85X55X20 Cm | Single Gross Weight: | 20.000 Kg |
High Light: | 731 A41 Rectifier Modules,Rectifier R48-3000e3,emerson netsure rectifiers |

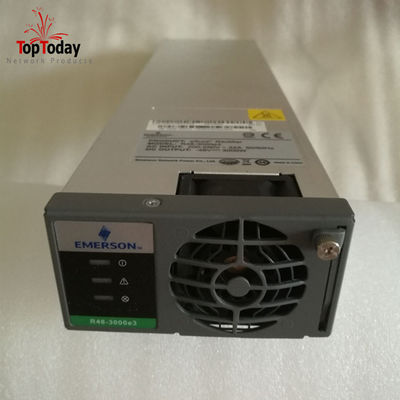

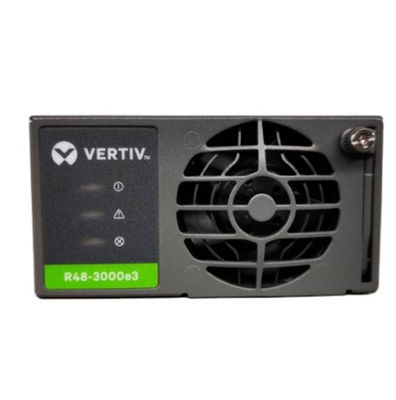

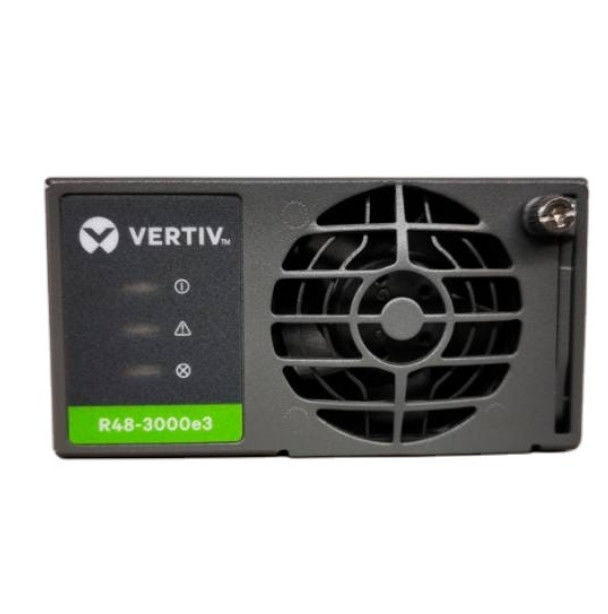

Emerson R48-3000e3 48V/3000W 50A Network Power supply Rectifier Module VERTIV
Descriptions
Vide R48-3000e3 power module adopts hot-swappable technology. In a live power system, inserting or pulling out the rectifier module will not produce sparks and will not damage the terminals. The replacement time of the rectifier module is less than 1 minute, and the impulse current is less than or equal to 1.5 times of the rated input steady-state peak current. When the module is inserted into the system, it will not cause disturbance of the output voltage of the system.
The output power of Vidi R48-3000e3 power supply module changes according to the change of input voltage and output voltage. When the input voltage is between 176Vac~290Vac (the hysteresis is less than 3V), the rectifier module can output high power (2900W); when the input voltage is between 85Vac~176Vac, the module works normally, but will enter the limited power mode
Features
1. Output characteristics
When the output voltage is between 48V and 58V, the maximum output power is 2900W.
When the output voltage is lower than 48V, the output current is maintained at 60.5A.
When the output voltage is 58V, the maximum output current is 50A.
When the load exceeds 2900W, the rectifier module will limit the current output in order to output constant power. 2. Temperature limit power When the ambient temperature is 45°C or below, the rectifier module can output full power. With an ambient temperature of 55°C, the maximum output power of the rectifier module is 2320W (54V/43A). With an ambient temperature of 60°C, the allowable output power of the module is 1450W. 65℃ ambient temperature, module output power is 0.
Specifications
1. what's the way to pay?
We support T/T, WESTERN UNION,Paypal
2.What's your shipping way?
Shopped by air sea express
3.What is the product used for packing?
We always use catron, Unless you have different packing needs
Packing
1. All products will be packed in carton, so the product can get effective protection to avoid damage.
2. Packaging according to customer requirement.
Shipping
1. We shipping via DHL / FedEx / TNT etc for samll orders. Yow can get your packages in about 3-5 days all over the world.
2. For big order, we will arrange Air cargo for your shipment, so it will be much cheaper than DHL, UPS etc.
3. You can choose your own shipping agent, we will provide good cooperation for it.
