HuaWei AP4050DN-E indoor POE power supply gigabit dual-band wireless access point WIFI

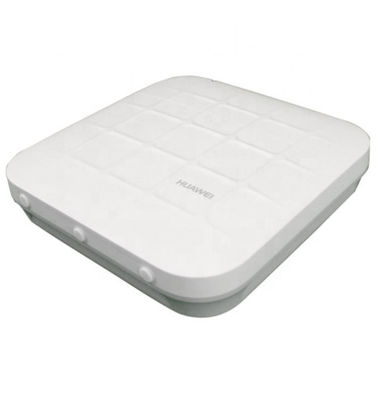

Huawei AP4050DN-E Access Point Overview
1. Huawei AP4050DN-E is an IoT-type wireless access point that supports 802.11ac Wave 2, 2 x 2 MIMO, and two spatial streams.
2. It provides comprehensive service support capabilities and features high reliability, high security, simple network deployment, automatic AC discovery and configuration, and real-time management and maintenance, which meets network deployment requirements.
3. The AP complies with 802.11n and 802.11ac protocols and can provide gigabit access for wireless users.
4. The AP4050DN-E has built-in Bluetooth (BLE4.0) and can work with eSight to implement Bluetooth-based precise positioning.
5. In addition, it provides three module slots for function expansion, applicable to commercial chains, medical, warehousing, manufacturing, and logistics environments.
Huawei AP4050DN-E Usage Scenarios
1. 802.11ac Wave 2 compliance, MU-MIMO (2SU-2MU), delivering services simultaneously on 2.4G and 5G radios, at a rate of up to 400 Mbit/s at 2.4 GHz, 867 Mbit/s Mbit/s at 5 GHz, and 1.267 Gbit/s for the device.
2. Built-in Bluetooth (BLE4.1) to implement precise positioning with eSight.
3. IoT module slots for flexible expansion of IoT functions.

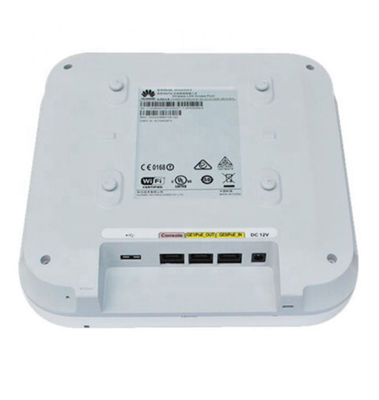

4. Dual Ethernet interfaces support link aggregation and traffic load balancing to ensure link reliability. The Ethernet interface GE0 supports the PoE in function. When the AP uses 802.3at PoE power supply, the Ethernet interface GE1 supports the PoE out function and can be used to provide power for other devices.
5. USB interface used for external power supply and storage. 6,Supports the Fat, Fit, and cloud modes and enables Huawei cloud-based management platform to manage and operate APs and services on the APs, reducing network O&M costs.
Huawei AP4050DN-E Access Point Specifications
AP4050DN-E Basic specifications
|
|
Item
|
Description
|
|
Physical specifications
|
Dimensions (H x W x D)
|
53 mm x 220 mm x 220 mm
|
|
Weight
|
0.86kg
|
|
System memory
|
* 256 MB DDR3L
* 64 MB NOR FLASH
|
|
Power specifications
|
Power input
|
* DC: 12 V ± 10%
* PoE power supply: in compliance with IEEE 802.3af/at
|
|
Maximum power consumption
|
16.0 W (excluding the output power of the USB port, IoT card, or PoE_OUT port)
NOTE:The actual maximum power consumption depends on local laws and regulations.
|
|
Environment specifications
|
Operating temperature
|
* -60 m to +1800 m: -10°C to +50°C
* 1800 m to 5000 m: Temperature decreases by 1°C every time the altitude increases 300 m.
|
|
Storage temperature
|
-40°C to +70°C
|
|
Operating humidity
|
5% to 95% (non-condensing)
|
|
IP rating
|
IP41
|
|
Atmospheric pressure
|
53 kPa to 106 kPa
|
AP4050DN-E Radio specifications
|
|
Item
|
Description
|
|
Antenna type
|
Built-in omnidirectional dual-band antenna
|
|
Antenna gain
|
* 2.4 GHz: 3 dBi
* 5 GHz: 4 dBi
|
|
Maximum number of users
|
Fit AP: ≤ 512
Fat AP: ≤ 512
Cloud AP: ≤ 512
NOTE:The actual number of users varies according to the environment.
|
|
Maximum number of VAPs for each radio
|
16
|
|
Maximum transmit power
|
* 2.4 GHz: 23 dBm (combined power)
* 5 GHz: 23 dBm (combined power)
NOTE:The actual transmit power depends on local laws and regulations.
|
|
Maximum number of non-overlapping channels
|
2.4 GHz (2.412 GHz to 2.472 GHz)
* 802.11b/g * 20 MHz: 3
* 802.11n * 20 MHz: 3
* 40 MHz: 1
|
5 GHz (5.18 GHz to 5.825 GHz)
* 802.11a * 20 MHz: 13
* 802.11n * 20 MHz: 13
* 40 MHz: 6
* 802.11ac * 20 MHz: 13
* 40 MHz: 6
* 80 MHz: 3
|
NOTE:The table uses the number of non-overlapping channels supported by China as an example. The number of non-overlapping
channels varies in different countries. For details, see the Country Codes & Channels Compliance.
|
|
Channel rate supported
|
* 802.11b: 1, 2, 5.5, and 11 Mbit/s
* 802.11a/g: 6, 9, 12, 18, 24, 36, 48, and 54 Mbit/s
* 802.11n: 6.5 to 400 Mbit/s
* 802.11ac: 6.5 to 867 Mbit/s
|
