Product Details:
|
Brand Name: | HuaWei | Model Number: | R4830G R4830G1 |
---|---|---|---|
Height×Width×Depth: | 40.8mm×95.5mm×208mm | Weight: | ≤1.5kg |
Working Voltage Range: | 85V AC~300V AC Or 85V DC~420V DC | AC Input Frequency: | 45Hz~66Hz |
Altitude: | ≤5000m (Note: 2000m~5000m, The Temperature Decreases By 1°C For Every 200m Increase In Altitude) | Warranty: | 1 Year |
High Light: | ETP4890 Rectifier Power Supply,ETP4890 Smps Power Supply,ETP4890 Switching Mode Power Supply |

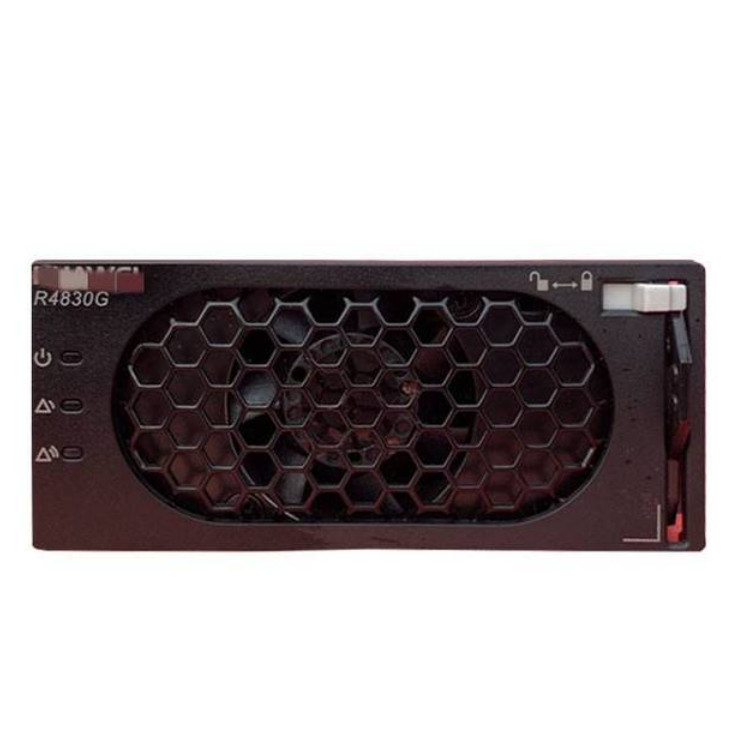

HuaWei ETP4890 Rectifier Power Supply R4830G R4830G1 48V 200A Module
HuaWei ETP4890 rectifier power supply R4830G R4830G1 embedded 1U communication power supply module 48V 200A
Overviews
R4830G 30A rectifier.
* Apply to ETP4890-A2.
* Wide range of AC input voltage from 85V to 300V.
* Maximum output power: 1600W
* Wide operation temperature range of rectifier from -40℃ to 75℃.
* High rectifier efficiency over 96% helps to save energy.
R4830G1 is a high-power density digital rectifier module that supports 85V AC~300V AC or 85V DC~420V DC input, and 53.5V DC default output. It has the advantages of low noise, can be used in parallel, and perfect protection functions such as soft start. Using new power monitoring technology, real-time monitoring of rectifier module status and load, and background adjustment of output voltage can be realized
Tech Specs
Specification | |
Basic parameters |
Efficiency point: ≥96%≥95% (230V AC, 30%~90% load) Height×Width×Depth: 40.8mm×95.5mm×208mm; Weight: ≤1.5kg Cooling method: built-in fan (fan has temperature control and speed regulation function) |
Input characteristics |
Working voltage range: 85V AC~300V AC or 85V DC~420V DC AC input frequency: 45Hz~66Hz; rated value is 50Hz/60Hz Input current: ≤13A power factor ≥0.99 (load ≥50%) THD: ≤3% (230VAC, load ≥50%) |
Input characteristics |
Working voltage range: 85V AC~300V AC or 85V DC~420V DC AC input frequency: 45Hz~66Hz; rated value is 50Hz/60Hz Input current: ≤13A power factor ≥0.99 (load ≥50%) THD: ≤3% (230VAC, load ≥50%) |
Use environment |
Working temperature: -40°C~+80°C; Storage temperature: -40°C~+80°C; Relative humidity: 5%~95% (non-condensing) Altitude: ≤5000m (Note: 2000m~5000m, the temperature decreases by 1°C for every 200m increase in altitude) |
