Product Details:
|
| Model Number: | LSS7X48SX6S0 | Dimensions (w×d× H): | 397.2mm×430.4mm×35.1mm |
|---|---|---|---|
| Weight: | 3.2kg | MAXIMUM POWER CONSUMPTION: | 192W |
| Connector Type: | SFP+ | Basic Functionality: | Provides Data Access And Switching Of 48 Gigabit/10 Gigabit Ethernet Optical Interfaces |
| Hot-swappable: | Backing | Warranty: | 1 Year |
| High Light: | 192W 10G Ethernet Optical Board,CCC Ethernet Optical Board,SFP+ OLT Optical Board |
||

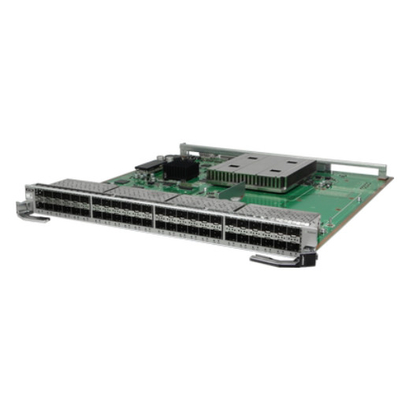

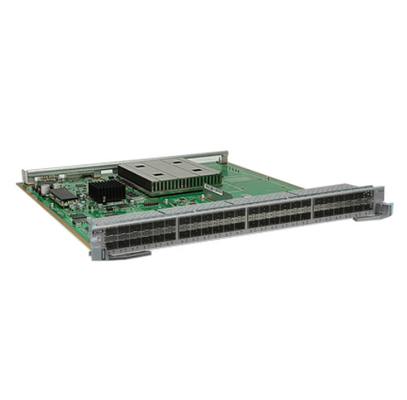

HuaWei S77 series board LSS7X48SX6S0 48-port 10 Gigabit Ethernet optical interface board (X6S SFP+)
|
Veneer name |
S7700 FRAME |
|---|---|
| LSS7X48SX6S0 |
S7703 CHASSIS: V200R013C02 AND LATER SUPPORTED S7703 PoE Frame, S7706 Frame, S7706 PoE Frame, S7710 Frame, S7712 Frame: V200R019C00 and later versions supported Illustrate:
Newly processed veneers from june 2021:
|
The LSS7X48SX6S0 can be installed in:
|
Function |
Description |
|---|---|
| Basic functionality | Provides data access and switching of 48 gigabit/10 gigabit ethernet optical interfaces |
| Distributed forwarding | Data is forwarded in parallel through a distributed data plane |
| Hot-swappable | Backing |
10GBASE SFP+/1000BASE-X OPTICAL INTERFACE
THE INTERFACE RATE OF THE 10GBASE SFP+/1000BASE-X OPTICAL INTERFACE CAN BE ADAPTED TO 10 GIGABIT.
|
Attribute |
Description |
|---|---|
| Connector type | SFP+ |
| Optical interface properties | This is determined by the selected SFP optical module. For more information about the optical modules supported by the LSS7X48SX6S0 and their properties, see GE eSFP packaged optical transceivers, GE-CWDM eSFP packaged color optical modules, and GE-DWDM eSFP packaged color optical modules. |
| Complies with standards | IEEE802.3z |
| Support frame formats | Ethernet_II,Ethernet_SAP,Ethernet_SNAP |
| Supports network protocols | IP |
|
Attribute |
Description |
|---|---|
| Connector type | SFP+ |
| Optical interface properties |
Determined by the selected SFP+ - SFP+ high-speed cable (1m, 3m, 5m, 10m), QSFP+ - 4*SFP+ high-speed cable (1m, 3m, 5m), SFP+ optical module or SFP+ optical cable. For more information about the optical modules supported by the LSS7X48SX6S0 and their properties, see 10GE SFP+ package optical modules (OSXD22N00 is not supported), 10GE-CWDM SFP+ package color optical modules, and 10GE-DWDM SFP+ package color optical modules. Illustrate:
The single board is used in S7703, S7706 and S7712 and does not support SFP-10G-ZR, 10GE-CWDM SFP+ package color optical modules and 10GE-DWDM SFP+ package color optical modules. |
| Complies with standards | IEEE 802.3ae |
| Support frame formats | Ethernet_II,Ethernet_SAP,Ethernet_SNAP |
| Supports network protocols | IP |
|
Attribute |
Description |
|---|---|
| Connector type | SFP+ |
| Optical interface properties |
THIS IS DETERMINED BY THE SELECTED SFP PHOTOELECTRIC MODULE. For more information about the optoelectronic modules supported by the single board and their properties, see GE SFP package optoelectronic modules (support 100M/1000M rates). |
| Use cable specifications | SFP PHOTOELECTRIC MODULE + NETWORK CABLE |
|
Parameter items |
Description |
|---|---|
| Physical parameters |
|
