Product Details:
|
| Product Name: | EDFA | Warranty: | 1 Year |
|---|---|---|---|
| ARP/router Table: | 64K | Use: | FTTH |
| Mounting: | 2U | Out Power: | 16DB |
| RF Connector: | SC/APC Or FC/APC | ||
| High Light: | 16DB EDFA Amplifier,32dbm EDFA Amplifier,16 Port EDFA |
||

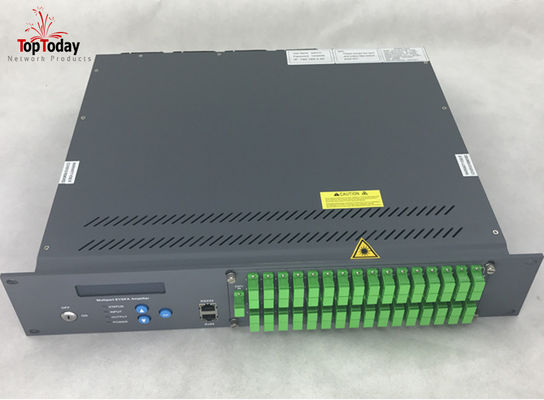

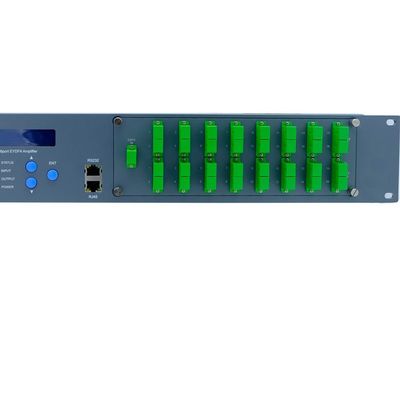

1550nm High Power WDM 16 port *23dBm 32dbm EDFA for CATV/HFC/PON optical amplifier
Descriptions
Type of EDFA is a high power optical amplifier with gain spectrum band within 1540~1563nm,

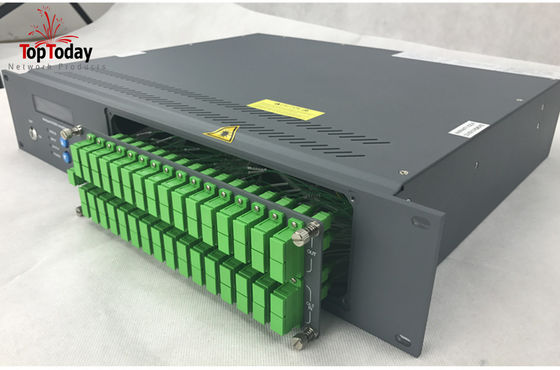

The 16 port 32dbm edfa equipment adopts modular design plug and play,easy to replace and easy to function expansion,if you have any problem of edfa accessory and do not depot repair.Only need send necessary accesssory and save time and money.
Specifications
| Place of Origin | China |
| Model Number | EDFA-32 |
| Brand Name | Toplink |
| Product name | EDFA-32 |
| Size (mm) | 370(L)X486(W)X88(H) |
| NW (kg) | 13KG |
| Voltage (V) | 220VAC(90~265),-48VDC |
| Working Temp | -0~55 |
| Range of output adjustment (dBm) | Up 0.5,down 4.0 |
| Item | Unit | Specification |
| Wavelength | nm | 1540-1565 |
| Input optical power | dBm | -10 ~ 10dBm |
| Noise Figure Ratio(+3dBm@1550nm) | dB | 5.0 -6.0 |
| Link C/CSO | dB | ≥63 |
| Link C/CTB | dB | ≥63 |
| C/N | dB | ≥50 |
| Max total power | dBm | 25-38 |
| Power consumption | W | 60 |
| Dimension | Mm | 483*468*8 |
Packing
1. All products will be packed in carton, so the product can get effective protection to avoid damage.
2. Packaging according to customer requirement.
Shipping
1. We shipping via DHL / FedEx / TNT etc for samll orders. Yow can get your packages in about 3-5 days all over the world.
2. For big order, we will arrange Air cargo for your shipment, so it will be much cheaper than DHL, UPS etc.
3. You can choose your own shipping agent, we will provide good cooperation for it.
