Product Details:
|
Product Name: | Huawei | Model Name: | ETP4830-A1 |
---|---|---|---|
Voltage Range: | -43.2 V DC To -57.6 V | Rated Output Voltage: | 53.5 V DC |
Maximum Input Current: | 15A | Operating Temperature Rang: | -33°C To +65°C |
High Light: | MA5608T Rectifier Modules,EPS30-4815AF,ETP4830-A1 |

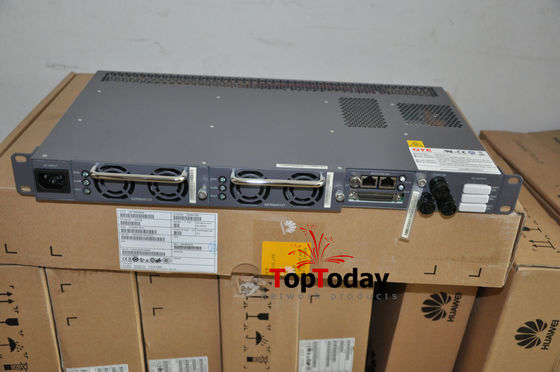

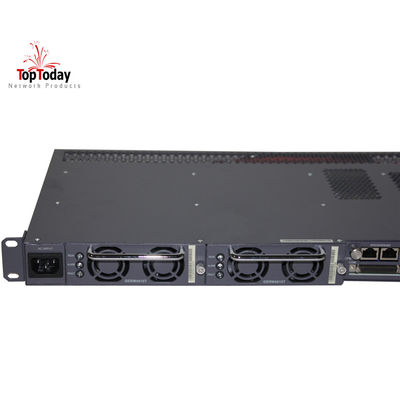

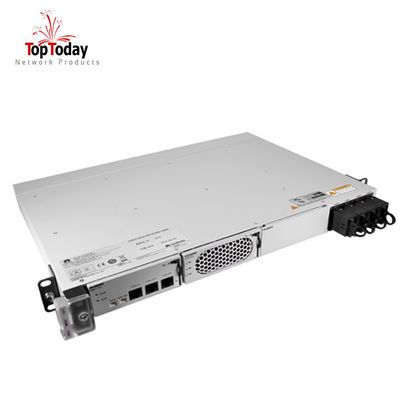

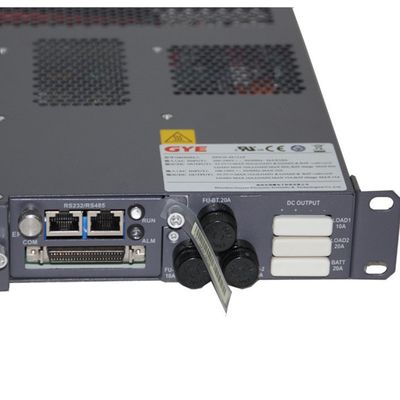

HuaWei Power System ETP4830-A1 30A for OLT HW ZTE C320 rectifier power supply 30A
Descriptions
ETP4830-A1 can convert from 220V or dual-wire of 110V input to stabilized - 48V DC output. It can also be configured with 48V/15A rectifiers and provide 30A output. All the function units have standard sized design with 1U. ETP4830-A1 can be embedded in 19-inch rack or cabinet or other scenarios. The system can provide excellent performance such as intelligent battery management, remote monitoring, etc.
Features
Wide range of AC input voltage from 85V to 300V.
Wide operation temperature range of rectifier from -40℃ to 75℃.
Online-swappable rectifier provides easy installation and maintenance.
Standard installation structure design, adapting to various scenarios.
Compact design, saving space and installation cost.
High rectifier efficiency over 96% helps to save energy.
Excellent rectifier dormancy function helps to increase system efficiency.
Intelligent battery management and protection helps to prolong battery lifespan.
Support environment monitoring and remote management through dry contact, serial interface or Ethernet interface.
Specification
System |
Dimension |
442mm(W)×255mm(D)×43.6mm(1U,H) |
||
Weight |
≤8kg(fully loaded) |
|||
Cooling mode |
Natural cooling |
|||
Installation mode |
Installed on 19-inch rack or cabinet |
|||
Cabling mode |
Front inlet and front outlet |
|||
Maintenance mode |
Front access, support module grade change |
|||
Protection level |
IP20 |
|||
AC Distribution |
Input mode |
220VAC single phase or 110VAC dual-live wire |
||
Input frequency |
45~66Hz, rated value: 50Hz/60Hz |
|||
SPD |
5kA/10kA, 8/20μs |
|||
DC Distribution |
Output voltage |
42~58VDC, rated value: 53.5VDC |
||
Maximum capacity |
2kW |
|||
Battery breakers |
1×20A(fuse) |
|||
Load breakers |
2×20A(fuse) |
|||
Environment |
Operating temperature |
-40℃~+65℃ |
||
Storage temperature |
-40℃~+70℃ |
|||
Operating humidity |
5%~95%(non-condensing) |
|||
Altitude |
0~4000m (If the altitude is within the range of 2000m to 4000m, the maximum operatingtemperature decreases by 1℃ as the altitude increases by 200m.) |
|||
Rectifier |
Rated power |
870W(176~300VAC) |
1000W(176~300VAC) |
|
Input voltage |
85VAC~300 VAC, rated 220VAC |
|||
Working temperature |
-40℃~+75℃ (derated output above 65℃) |
-40℃~+75℃ (derated output above 55℃) |
||
Dimension |
95.5mm(W)×208mm(D)×40.8mm(1U, H) |
|||
Weight |
≤1.5kg |
≤1.1kg |
||
Cooling mode |
Forced cooling |
|||
Power factor |
≥0.99 |
|||
THD |
≤5% |
|||
Controller |
Type |
SMU01A |
SMU01B |
SMU01C |
Signal input |
7 digital input, 2 analog input |
2 digital input |
||
Alarm output |
8 dry contact output |
4 dry contact |
||
Communication port |
FE, RS232/485 |
RS232/485 |
||
Display mode |
LCD |
Our service
1. Strict quality control is carried out in every link from raw material procurement, processing, testing to packaging.
2. The waybill or bill of lading will be provided in time for tracking.
3. 12 months warranty.
