Product Details:
|

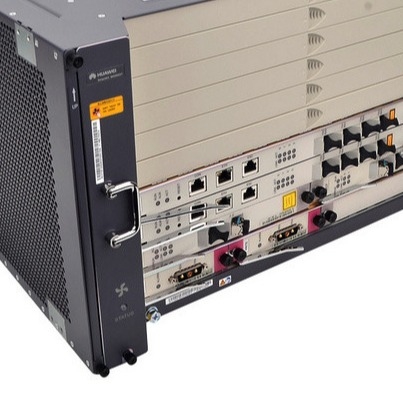

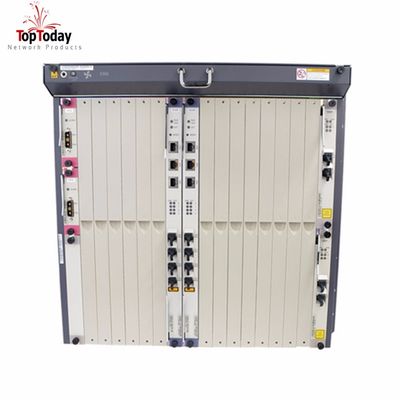

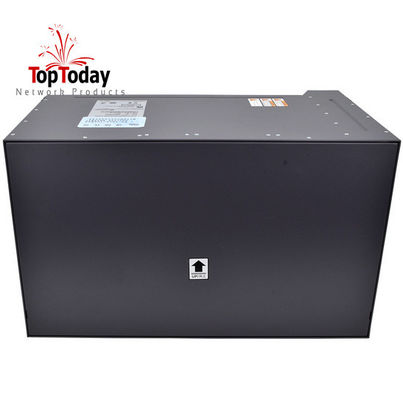

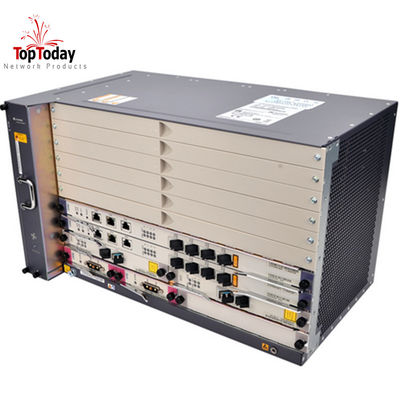

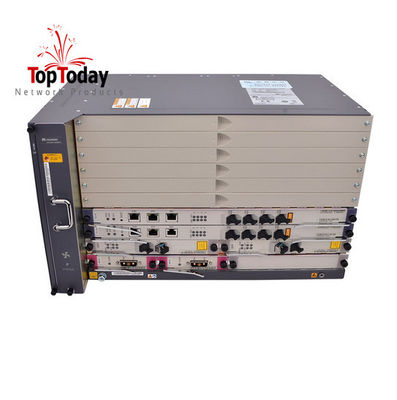

| Product Name: | MA5680T | Brand: | HUAWEI |
|---|---|---|---|
| Power Supply Mode: | DC Or AC | MCUD: | Mini GE Control Unit |
| Weight (empty Chassis): | 3.55kg | Selling Units: | Single Item |
| Single Package Size : | 50X60X50 Cm | Single Gross Weight: | 30.000 Kg |
| Package Type: | New In The Huawei Box | ||
| High Light: | GEPON OLT,EPON OLT series,GPON GEPON OLT |
||
| Port Type | Port | Description |
| Upstream port |
GE optical /electrical port |
All GE optical ports use the small form-factor pluggable (SFP) optical transceivers. Through different SFP modules, the optical ports support different transmission distances. Single-mode SFP transceivers and multi-mode SFP transceivers are available.
Multi-GE upstream transmission is supported to meet the multi-edge network requirements of the carrier. |
| 10GE optical port | It provides the 10GE upstream transmission function | |
| E1 port | It provides the E1 upstream transmission function. | |
| STM-1 port |
It supports the upstream transmission through the STM-1 optical port and supports the ESFP/SFP module. |
|
| Service port | GPON port |
It provides the GPON access. It supports a maximum upstream rate of 1.244 Gbit/s and a maximum downstream rate of 2.488 Gbit/s |
| P2P optical port | It provides the P2P Ethernet optical access at a rate of 100 Mbit/s. | |
|
Ethernet optical port |
It provides the GE subtending function. | |
| Maintenance port |
Maintenance serial port |
It is used for local and remote maintenance. |
|
Environment monitoring serial port |
Various environment parameters are collected by the monitoring device and then through this port reported to the MA5680T. |
Power parameter
-48V DC input
Operating voltage range: -38.4 V~ -72 V
Support dual power protection
