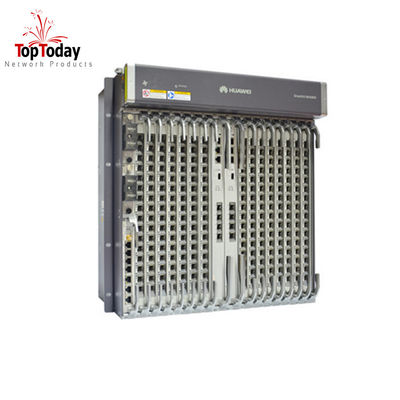

MA5800-X17 GPON EPON Huawei SmartAX OLT Optical Line Terminal

Large Image : MA5800-X17 GPON EPON Huawei SmartAX OLT Optical Line Terminal

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	HUAWEI
Model Number:	MA5800-X17

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable

Contact Now

MA5800-X17 GPON EPON Huawei SmartAX OLT Optical Line Terminal

Description

Product Name:	MA5800-X17	Brand:	HUAWEI
DC Power Sup:	-38.4V To -72V	XG-PON Ports:	136
GPON Ports:	272	Switching Capacity:	7 Tbit/s
Selling Units:	Single Item	Single Package Size :	65X35X50 Cm
Single Gross Weight:	23.000 Kg	Package Type:	NEW IN THE HUAWEI BOX.
High Light:	MA5800-X17 , GPON OLT Optical Line Terminal , EPON OLT Optical Line Terminal

Huawei SmartAX MA5800 X2 OLT Huawei SmartAX MA5800 X2 OLT (MA5800-X2 for short) supports PON/P2P full-service access, – Zhangguang.com supports home, enterprise, mobile backhaul and other full-service access; Huawei.The MA5800-X2 combines the functions of an OLT and an aggregation switch to simplify network levels, reduce space and power consumption, and reduce OPEX. MA5800 series frame products include three sizes: MA5800-X17, MA5800-X7 and MA5800-X2, supporting various networking applications such as FTTB/FTTC/FTTD/FTTH/D-CCAP. The 1U box OLT product MA5801 supports all-optical access coverage in low-density areas. Huawei SmartAX MA5800 X2 OLT Product Overview Huawei SmartAX MA5800 X2 OLT is the industry’s first distributed architecture intelligent aggregation OLT platform, positioned as the next-generation OLT for NG-PON. The MA5800-X2 has three characteristics of ultra-wideband, full convergence, and intelligence to meet the needs of the development of ultra-wideband networks that are wider, faster, and smarter, and to provide users with a better business connection experience. Help customers build a “broader, faster, smarter” access network to provide a better business experience. SmartAX MA5800-X2 (MA5800-X2 for short) supports PON/P2P full-service access, – Zhangguang.com supports home, enterprise, mobile backhaul and other full-service access; Huawei The MA5800-X2 combines the functions of an OLT and an aggregation switch to simplify network levels, reduce space and power consumption, and reduce OPEX

tem	MA5800-X17	MA5800-X15	MA5800-X7	MA5800-X2
Dimensions (W x D x H)	493 mm x 287 mm x 486 mm	442 mm x 287 mm x 486 mm	442 mm x 268.7 mm x 263.9 mm	442 mm x 268.7 mm x 88.1 mm
Maximum Number of Ports in a Subrack	272 x GPON/EPON 816 x GE/FE 136 x 10G GPON/10G EPON 136 x 10G GE 544 x E1	240 x GPON/EPON 720 x GE/FE 120 x 10G GPON/10G EPON 120 x 10G GE 480 x E1	112 x GPON/EPON 336 x GE/FE 56 x 10G GPON/10G EPON 56 x 10G GE 224 x E1	32 x GPON/EPON 96 x GE/FE 16 x 10G GPON/10G EPON 16 x 10G GE 64 x E1
Switching Capacity of the System	7 Tbit/s			480 Gbit/s
Ambient Temperature	-40°C to 65°C* *: The MA5800 can start up at a lowest temperature of -25°C and run at -40°C. The 65°C temperature refers to the highest temperature measured at the air intake vent
Working Voltage Range	-38.4V DC to -72V DC			DC power supply: -38.4V to -72V AC power supply: 100V to 240V
Layer 2 Features	VLAN + MAC forwarding, SVLAN + CVLAN forwarding, PPPoE+, and DHCP option82
Layer 3 Features	Static route, RIP/RIPng, OSPF/OSPFv3, IS-IS, BGP/BGP4+, ARP, DHCP relay, and VRF
MPLS & PWE3	MPLS LDP, MPLS RSVP-TE, MPLS OAM, MPLS BGP IP VPN, tunnel protection switching, TDM/ETH PWE3, and PW protection switching
IPv6	IPv4/IPv6 dual stack, IPv6 L2 and L3 forwarding, and DHCPv6 relay
Multicast	IGMP v2/v3, IGMP proxy/snooping, MLD v1/v2, MLD Proxy/Snooping, and VLAN-based IPTV multicast
QoS	Traffic classification, priority processing, trTCM-based traffic policing, WRED, traffic shaping, HqoS, PQ/WRR/PQ + WRR, and ACL

martAX MA5800 Series OLTs

The Smartax MA5800 multi-service access module is the industry's first smart NG-OLT. As a next-generation OLT that employs a distributed architecture, MA5800 supports ultra-broadband, fixed mobile converged services, and smart capabilities. It is the most advanced OLT for NG-PON in the industry, catering to the demand for a broader, faster and smarter access network for the ultimate service experience.

The MA5800 provides GPON, XG-PON, TWDM-PON, WDM-PON, GE and 10GE access and supports FTTH, FTTD, FTTB, FTTC and D-CCAP network applications. This architecture is key to building a heterogeneous access network with full home, enterprise and mobile backhaul services. The MA5800 integrates OLT, aggregation switch and edge outer functionalities into one platform and supports high density GE/10GE interfaces for MDU DSLAM MSAN and OLT aggregation. It helps carriers simplify network architecture and reduce network OPEX.

The industry's first next-generation, 40 Gbit/s-capacity Optical Line Terminal (NG-OLT). Huawei's SmartAX MA5800 multi-service access module employs a distributed architecture, supporting ultra-broadband, Fixed Mobile Convergence (FMC) services, and smart capabilities such as SDN-based virtualization.

MA5800's programmable Network Processor (NP) chip set accelerates the roll-out of new services, catering to the demand for differentiated services, including partitioning for wholesale and retail service providers.

martAX MA5800 Series OLTs

tem	MA5800-X17	MA5800-X15	MA5800-X7	MA5800-X2
Dimensions (W x D x H)	493 mm x 287 mm x 486 mm	442 mm x 287 mm x 486 mm	442 mm x 268.7 mm x 263.9 mm	442 mm x 268.7 mm x 88.1 mm
Maximum Number of Ports in a Subrack	272 x GPON/EPON 816 x GE/FE 136 x 10G GPON/10G EPON 136 x 10G GE 544 x E1	240 x GPON/EPON 720 x GE/FE 120 x 10G GPON/10G EPON 120 x 10G GE 480 x E1	112 x GPON/EPON 336 x GE/FE 56 x 10G GPON/10G EPON 56 x 10G GE 224 x E1	32 x GPON/EPON 96 x GE/FE 16 x 10G GPON/10G EPON 16 x 10G GE 64 x E1
Switching Capacity of the System	7 Tbit/s			480 Gbit/s
Ambient Temperature	-40°C to 65°C* *: The MA5800 can start up at a lowest temperature of -25°C and run at -40°C. The 65°C temperature refers to the highest temperature measured at the air intake vent
Working Voltage Range	-38.4V DC to -72V DC			DC power supply: -38.4V to -72V AC power supply: 100V to 240V
Layer 2 Features	VLAN + MAC forwarding, SVLAN + CVLAN forwarding, PPPoE+, and DHCP option82
Layer 3 Features	Static route, RIP/RIPng, OSPF/OSPFv3, IS-IS, BGP/BGP4+, ARP, DHCP relay, and VRF
MPLS & PWE3	MPLS LDP, MPLS RSVP-TE, MPLS OAM, MPLS BGP IP VPN, tunnel protection switching, TDM/ETH PWE3, and PW protection switching
IPv6	IPv4/IPv6 dual stack, IPv6 L2 and L3 forwarding, and DHCPv6 relay
Multicast	IGMP v2/v3, IGMP proxy/snooping, MLD v1/v2, MLD Proxy/Snooping, and VLAN-based IPTV multicast

martAX MA5800 Series OLTs

tem	MA5800-X17	MA5800-X15	MA5800-X7	MA5800-X2
Dimensions (W x D x H)	493 mm x 287 mm x 486 mm	442 mm x 287 mm x 486 mm	442 mm x 268.7 mm x 263.9 mm	442 mm x 268.7 mm x 88.1 mm
Maximum Number of Ports in a Subrack	272 x GPON/EPON 816 x GE/FE 136 x 10G GPON/10G EPON 136 x 10G GE 544 x E1	240 x GPON/EPON 720 x GE/FE 120 x 10G GPON/10G EPON 120 x 10G GE 480 x E1	112 x GPON/EPON 336 x GE/FE 56 x 10G GPON/10G EPON 56 x 10G GE 224 x E1	32 x GPON/EPON 96 x GE/FE 16 x 10G GPON/10G EPON 16 x 10G GE 64 x E1
Switching Capacity of the System	7 Tbit/s			480 Gbit/s
Ambient Temperature	-40°C to 65°C* *: The MA5800 can start up at a lowest temperature of -25°C and run at -40°C. The 65°C temperature refers to the highest temperature measured at the air intake vent
Working Voltage Range	-38.4V DC to -72V DC			DC power supply: -38.4V to -72V AC power supply: 100V to 240V
Layer 2 Features	VLAN + MAC forwarding, SVLAN + CVLAN forwarding, PPPoE+, and DHCP option82
Layer 3 Features	Static route, RIP/RIPng, OSPF/OSPFv3, IS-IS, BGP/BGP4+, ARP, DHCP relay, and VRF
MPLS & PWE3	MPLS LDP, MPLS RSVP-TE, MPLS OAM, MPLS BGP IP VPN, tunnel protection switching, TDM/ETH PWE3, and PW protection switching
IPv6	IPv4/IPv6 dual stack, IPv6 L2 and L3 forwarding, and DHCPv6 relay
Multicast	IGMP v2/v3, IGMP proxy/snooping, MLD v1/v2, MLD Proxy/Snooping, and VLAN-based IPTV multicast

tem	MA5800-X17	MA5800-X15	MA5800-X7	MA5800-X2
Dimensions (W x D x H)	493 mm x 287 mm x 486 mm	442 mm x 287 mm x 486 mm	442 mm x 268.7 mm x 263.9 mm	442 mm x 268.7 mm x 88.1 mm
Maximum Number of Ports in a Subrack	272 x GPON/EPON 816 x GE/FE 136 x 10G GPON/10G EPON 136 x 10G GE 544 x E1	240 x GPON/EPON 720 x GE/FE 120 x 10G GPON/10G EPON 120 x 10G GE 480 x E1	112 x GPON/EPON 336 x GE/FE 56 x 10G GPON/10G EPON 56 x 10G GE 224 x E1	32 x GPON/EPON 96 x GE/FE 16 x 10G GPON/10G EPON 16 x 10G GE 64 x E1
Switching Capacity of the System	7 Tbit/s			480 Gbit/s
Ambient Temperature	-40°C to 65°C* *: The MA5800 can start up at a lowest temperature of -25°C and run at -40°C. The 65°C temperature refers to the highest temperature measured at the air intake vent
Working Voltage Range	-38.4V DC to -72V DC			DC power supply: -38.4V to -72V AC power supply: 100V to 240V
Layer 2 Features	VLAN + MAC forwarding, SVLAN + CVLAN forwarding, PPPoE+, and DHCP option82
Layer 3 Features	Static route, RIP/RIPng, OSPF/OSPFv3, IS-IS, BGP/BGP4+, ARP, DHCP relay, and VRF
MPLS & PWE3	MPLS LDP, MPLS RSVP-TE, MPLS OAM, MPLS BGP IP VPN, tunnel protection switching, TDM/ETH PWE3, and PW protection switching
IPv6	IPv4/IPv6 dual stack, IPv6 L2 and L3 forwarding, and DHCPv6 relay
Multicast	IGMP v2/v3, IGMP proxy/snooping, MLD v1/v2, MLD Proxy/Snooping, and VLAN-based IPTV multicast
Qo

tem	MA5800-X17	MA5800-X15	MA5800-X7	MA5800-X2
Dimensions (W x D x H)	493 mm x 287 mm x 486 mm	442 mm x 287 mm x 486 mm	442 mm x 268.7 mm x 263.9 mm	442 mm x 268.7 mm x 88.1 mm
Maximum Number of Ports in a Subrack	272 x GPON/EPON 816 x GE/FE 136 x 10G GPON/10G EPON 136 x 10G GE 544 x E1	240 x GPON/EPON 720 x GE/FE 120 x 10G GPON/10G EPON 120 x 10G GE 480 x E1	112 x GPON/EPON 336 x GE/FE 56 x 10G GPON/10G EPON 56 x 10G GE 224 x E1	32 x GPON/EPON 96 x GE/FE 16 x 10G GPON/10G EPON 16 x 10G GE 64 x E1
Switching Capacity of the System	7 Tbit/s			480 Gbit/s
Ambient Temperature	-40°C to 65°C* *: The MA5800 can start up at a lowest temperature of -25°C and run at -40°C. The 65°C temperature refers to the highest temperature measured at the air intake vent
Working Voltage Range	-38.4V DC to -72V DC			DC power supply: -38.4V to -72V AC power supply: 100V to 240V
Layer 2 Features	VLAN + MAC forwarding, SVLAN + CVLAN forwarding, PPPoE+, and DHCP option82
Layer 3 Features	Static route, RIP/RIPng, OSPF/OSPFv3, IS-IS, BGP/BGP4+, ARP, DHCP relay, and VRF
MPLS & PWE3	MPLS LDP, MPLS RSVP-TE, MPLS OAM, MPLS BGP IP VPN, tunnel protection switching, TDM/ETH PWE3, and PW protection switching
IPv6	IPv4/IPv6 dual stack, IPv6 L2 and L3 forwarding, and DHCPv6 relay
Multicast	IGMP v2/v3, IGMP proxy/snooping, MLD v1/v2, MLD Proxy/Snooping, and VLAN-based IPTV multicast
