Product Details:
|
| Product Name: | MA5800-X7, | Brand: | Huawei |
|---|---|---|---|
| Power Supply Mode: | DC Or AC | DC Working Voltage Range: | -38.4 V To -72 V |
| AC Working Voltage Range: | 100 V To 240 V | Selling Units: | Single Item |
| Single Package Size : | 70X40X20 Cm | Single Gross Weight: | 27.000 Kg |
| Package Type: | NEW IN THE ZTE BOX | ||
| High Light: | EPON OLT Device,MA5800-X2,FTTH OLT Device |
||

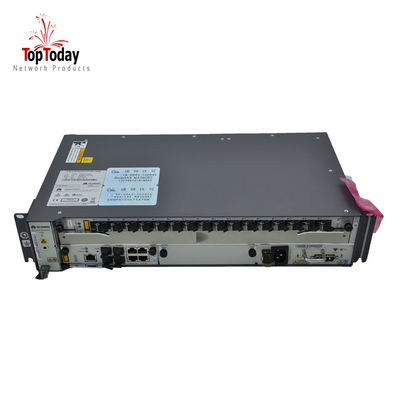

HUAWEI GPON/EPON OLT SmartAX MA5800 Series MA5800-X2
| Item | MA5800-X17 | MA5800-X15 | MA5800-X7 | MA5800-X2 |
| Dimensions (W x D x H) | 493 mm x 287 mm x 486 mm | 442 mm x 287 mm x 486 mm | 442 mm x 268.7 mm x 263.9 mm | 442 mm x 268.7 mm x 88.1 mm |
| Maximum Number of Ports in a Subrack |
272 x GPON/EPON 816 x GE/FE 136 x 10G GPON/10G EPON 136 x 10G GE 544 x E1 |
240 x GPON/EPON 720 x GE/FE 120 x 10G GPON/10G EPON 120 x 10G GE 480 x E1 |
112 x GPON/EPON 336 x GE/FE 56 x 10G GPON/10G EPON 56 x 10G GE 224 x E1 |
32 x GPON/EPON 96 x GE/FE 16 x 10G GPON/10G EPON 16 x 10G GE 64 x E1 |
| Switching Capacity of the System | 7 Tbit/s | 480 Gbit/s | ||
| Ambient Temperature |
-40°C to 65°C* *: The MA5800 can start up at a lowest temperature of -25°C and run at -40°C. The 65°C temperature refers to the highest temperature measured at the air intake vent |
|||
| Working Voltage Range | -38.4V DC to -72V DC |
DC power supply: -38.4V to -72V AC power supply: 100V to 240V |
||
| Layer 2 Features | VLAN + MAC forwarding, SVLAN + CVLAN forwarding, PPPoE+, and DHCP option82 | |||
| Layer 3 Features | Static route, RIP/RIPng, OSPF/OSPFv3, IS-IS, BGP/BGP4+, ARP, DHCP relay, and VRF | |||
| MPLS & PWE3 | MPLS LDP, MPLS RSVP-TE, MPLS OAM, MPLS BGP IP VPN, tunnel protection switching, TDM/ETH PWE3, and PW protection switching | |||
| IPv6 | IPv4/IPv6 dual stack, IPv6 L2 and L3 forwarding, and DHCPv6 relay | |||
| Multicast | IGMP v2/v3, IGMP proxy/snooping, MLD v1/v2, MLD Proxy/Snooping, and VLAN-based IPTV multicast | |||
