Product Details:
|
| Product Name: | MA5672 | Ports: | 4GE + 4 POTS + WIFI |
|---|---|---|---|
| Type: | Fiber Optic Transceivers | Use: | FTTH |
| Network: | WIFI | Warranty: | 1 Year |
| High Light: | 1GE GPON ONT ONU,FTTH GPON ONT ONU |
||
HuaWei GPON ONU SmartAX MA5672 4GE + 4 POTS + WIFI multi-voice function multi-service optical cat wireless
Descriptions
The SmartAX MA5672 is carrier-class ONUs launched by Huawei dedicated for small and medium-sized enterprise (SME) access. The MA5672 provides one GPON/GE uplink port, 2*GE+8*POTS access.The MA5672 can be installed on desktops, in corridors, and in outdoor cabinets, support environment adaptability, and feature easy installation and maintenance.ts, support environment adaptability, and feature easy installation and maintenance.

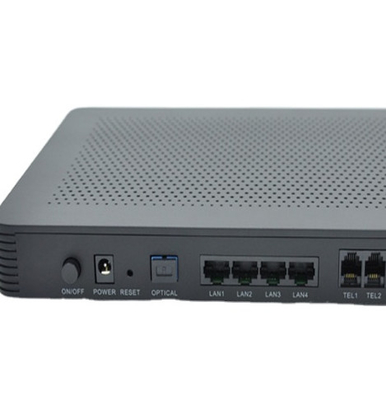

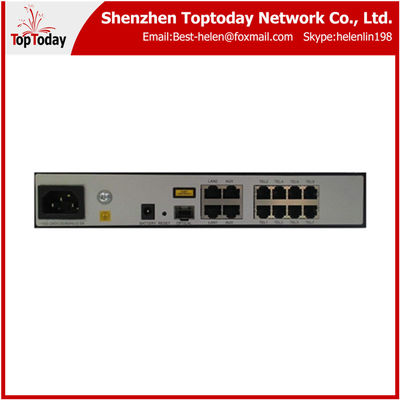

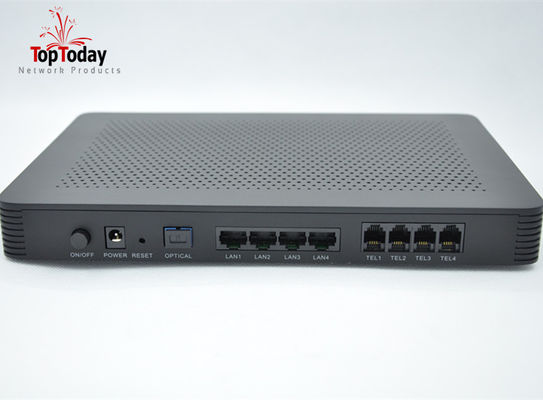

Description of the ports on the rear and side panels of the MA5672
|
Port/Button |
Function |
|---|---|
| ON/OFF | Power switch, which is used to power on or off the MA5671. |
| POWER | Power port, which is used to connect to a power adapter. |
| RESET | RESET button. Shortly pressing the RESET button restarts the MA5671; holding down the button (for longer than 10s) restores factory defaults for the MA5671. |
| OPTICAL |
Optical port equipped with a rubber plug, which is used to connect to an optical fiber for upstream transmission. The connector of the optical fiber connected to this port is the SC/UPC type. |
| LAN1 through LAN4 |
Autonegotiation Ethernet ports (RJ-45), which are used to connect to the Ethernet ports on PCs or IP set top boxes (STBs).
|
| BBU | Battery monitoring port, which is used to monitor backup batteries. |

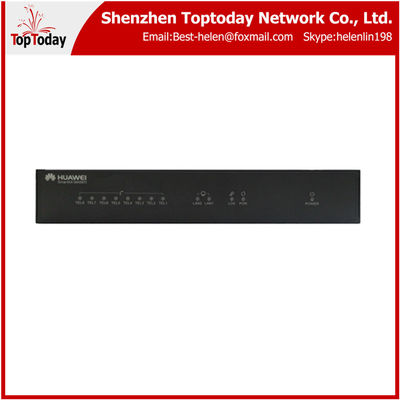

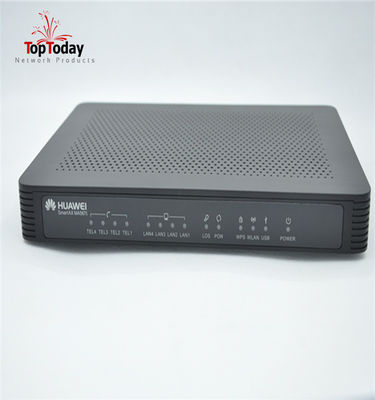

Status description of the indicators on the MA5672
|
Indicator |
Description |
Status |
Remarks |
|---|---|---|---|
| LAN1 through LAN4 | Ethernet port indicators | Steady green | The Ethernet ports are connected correctly. |
| Green, on for 0.25s and off for 0.25s repeatedly | The Ethernet ports are transmitting or receiving data. | ||
| Off | The Ethernet ports are disconnected. | ||
| LOS | Connection indicator | / | |
| PON | Authentication indicator | / | |
| POWER | Power indicator | Steady green | The MA5671 is powered on. |
| Off | The MA5671 is powered off. | ||
| Steady on, alternating between green and red | Backup batteries are supplying power. | ||
