Product Details:
|
| Type: | Gpon | Brand: | Huawei |
|---|---|---|---|
| Product Name: | Huawei HG8245H | GPON Interface: | 1*GPON Interface |
| L/T: | 1DAYS | Power Supply: | EU, US, UK, AU, |
| Ipv6: | Support | Selling Units: | Single Item |
| Single Package Size : | 25X20X6 Cm | Single Gross Weight: | 0.500 Kg |
| Package Type: | New In The Huawei Box. | ||
| High Light: | HG8245H GPON ONT ONU,English firmware SIP,HG8245H ONU |
||
Huawei gpon ont HG8245H GPON ONT series equipments are manufactured and developed by Huawei company, which is a leader in FTTH/ FTTO broadband access network field. They are properly manageable added with features such as high-bandwidth, high reliability, low power consumption and satisfy the users requirement to access broadband, voice, data and video etc.
Huawei GPON ONU HG8245H with 4GE ports+2*phone port+wifi, with 2 antennas high gain wireless function.
The HG8245H, an optical network terminal (ONT), is a high-end home gateway in FTTH solution. By using the GPON technology, ultra-broadband access is provided for home and SOHO users.
The HG8245H features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services. Therefore, the HG8245H provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment.
The HG8245H provides English firmware and EU, US, UK, AU Power adapter for your choice.
Product Features
GPON Interface: 1 *GPON interface (SC/UPC)
Transmission Rate: 2.488Gbps downstream and 1.244bps upstream
LAN: 4GE with RJ-45 connector
WIFI :2.4G&5G wirless external antenna
VOIP: 2
USB: 1
Huawei HG8245H 4GE 2VOICE WIFI English Firmware SIP GPON ONT ONU| del | Configuration | |||||
| LAN | TEL | USB | WIFI | Optical Connector | Firmware | |
|

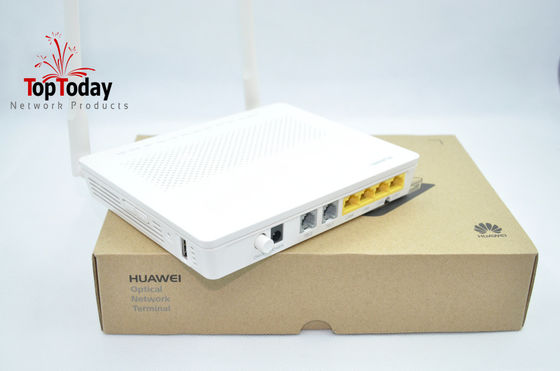

HUAWEI HG8245H
|
4GE | 2POTS | 1USB | 2.4G | SC/UPC | English |
| Remark: | External Antenna. | |||||
Details of Huawei HG8245H:
| Model | HG8245H |
| Operating temperature | 0°C to +40°C |
| Operating humidity | 5% RH to 95% RH (non-condensing) |
| Power adapter input | 100-240 V AC, 50-60 Hz |
| System power supply | 11-14 V DC, 1A |
| Optical interface |
1 GPON interface, SC single-mode/single-fiber, Downstream rate 2.5Gbps, Upstream rate 1.25Gbps |
| Optical Wavelength | Tx 1310nm, Rx 1490nm |
| Optical interface | SC/UPC |
| RX sensitivity | < -25dBm @ 1490nm |
| WLAN | Compliant with IEEE802.11b/g/n, 300Mbps, 2T2R |
| LAN interface | 4*10/100/1000Mbps |
| Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connectors | |
| Router throughput | Upstream: >390Mbps @ 1518bytes, Downstream: >390Mbps @ 1522bytes |
| POTS interface | 2 FXS, RJ11 connectors |
| Place of Origin | Guangdong,China |
| Model Number | HG8245H |
| Brand Name | Huawei |
| Type | Gpon |
| Brand | huawei |
| Product name | Huawei HG8245H |
| GPON interface | 1*GPON interface |
| L/T | 1DAYS |
| Power supply | EU, US, UK, AU, |
| Ipv6 | Support |
