Product Details:
|
Type: | GPON ONT | Product Name: | ZXA10 F601 |
---|---|---|---|
Uplink Port: | 1 GPON | Power Supply: | EU, US, UK, AU Optional |
Selling Units: | Single Item | Single Package Size : | 30X5X10 Cm |
Single Gross Weight: | 0.500 Kg | Package Type: | NEW IN THE ZTE BOX |
High Light: | F643 GEPON GPON ONU,F601 GEPON GPON ONU,ZTE GEPON GPON ONU |

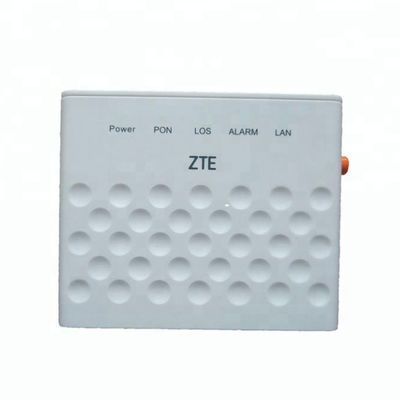

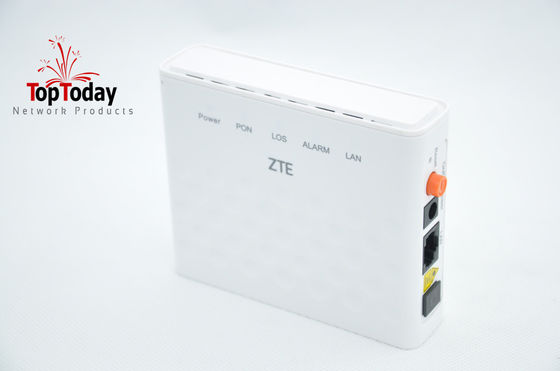

ZTE ONU GPON Modem ZXA10 F601 Optical Network Interface 1 Ethernet LAN Port
Descriptions of F601
ZTE ZXHN F601 is a GPON Optical Network Terminal designed for FTTH scenario. It provides high-performance forwarding capabilities to ensure excellent experience with Internet and HD video services. It has a small, smart appearance and green, energy-saving advantage.
GPON Interface of F601
Optical port: 1 x GPON interface (SC/PC or SC/APC)
Transmission Distance: 0 ~ 20km
Transmit rate: 2.488Gbps downstream; 1.244Gbps upstream
User Network Interface of F601
1 x10/100/1000Base-T
Half/full duplex; Auto MDI/MDIX; Auto negotiation
Optical Module of F601
Wavelength:
Receiving: 1480~1500 nm
Transmitting: 1290~1330 nm
Receiving Sensitivity: -28dBm
Transmitting Optical Power: 0.5~5dBm
Physical Performance of F601
Power consumption: <6W
Dimensions: 110mm(W) x 90mm(H) x 53mm(D)
Working temperature: 0oC ~ 40oC
Working humidity: 5% ~ 95%
Weight: about 190g
Power supply: 12V DC
Mounting mode: Desktop/Wall mounting
Main Function of F601
Supported service: Internet, IPTV
GPON: 8 T-CONTs, 32 GEM Ports
VLAN: 802.1Q, 802.1P, 802.1ad
MAC address table: 256
Multicast: IGMP v1/v2 Snooping
Multicast group per user port: 256
QoS: service flow classification based on physical port, Ethernet type; ingress rate limit;
egress shaping
Management: local web management, OMCI
Specications of F601
Type: | GPON ONT | Product Name: | ZXA10 F601 |
---|---|---|---|
Uplink Port: | 1 GPON | Power Supply: | EU, US, UK, AU Optional |
Selling Units: | Single Item | Single Package Size : | 30X5X10 Cm |
Single Gross Weight: | 0.500 Kg | Package Type: | NEW IN THE ZTE BOX |
FAQ
Q1: How can I get your catalog and price list?
A1: Please let us know your email or contact us directly from the website to get our catalog and price list;
Q2: Can I negotiate the price?
A2: Yes, we can consider offering discounts for multiple container loads of mixed cargo.
Q3: How much is the shipping cost?
A3: It depends on the size of your shipment and the method of transportation. We will charge you according to your request.
Q4: What if we have quality problems when we receive the goods?
A4: If you have quality problems when unpacking, you can take a photo for our reference. Our QC department will check the problem and provide you with the best solution.
Q5: How long is your delivery time?
A5: Generally, it takes 5-8 working days after receiving the payment.
The specific delivery time depends on the order quantity In addition, we will also take actions in the future to improve quality.
Packing
The ONU can be packed in ways according to customer needs:
Bulk: ONU with or without accessories is wrapped in plastic bag, and put in bulk boxes or palletized for economical transport.
Individually boxed: Each ONU is wrapped in plastic bag, and packaged individually in a new blank paper box along with accessories as desired: ONU + PSU + UTP
Delivery
Shipping way:
-By air;
-By sea;
-Or express (UPS, DHL, Fedex...)
