1.Low rectifier/subrack height minimize space needed for power in embedded applications.
2.DSP (Digital Signal Processor) - means fewer components, optimized operation and active load sharing for increased reliability.
3.Compliant with global standards - delivers quality, performance and reliability no matter what the application or location
4.High efficiency, up to 92%. Reduces power consumption for lower operating costs.
5.Hot pluggable-facilitates future extensions.
6.Wide input voltage range operates in the most demanding environments where input voltage changes.
7.Wide temperature operating range from -40°C to +75°C / -40 °F to +167°F meets the harshest climatic.

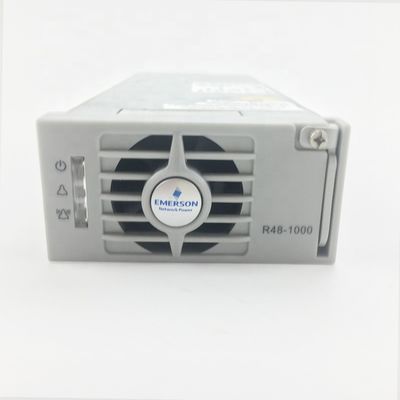

Main functions and features of R48-1000
1. Hot swap: The rectifier module adopts non-destructive hot swap technology, and its output and input have soft start units. When the module is inserted into the system, it will not Cause the disturbance of the output voltage of the system. The module replacement time is less than 1 minute.
2. Digital current sharing: the rectifier module adopts advanced digital current sharing technology, no monitoring module is needed, and the current sharing between the modules can be automatic, and the current sharing is uneven The balance is less than 1.5A.
3. Input power limit control: The rectifier module adopts advanced power limit control methods according to changes in input voltage and output voltage. The conversion point is 176V. When the input voltage is 176Vac290Vac, the module can output the maximum power; when the input voltage is 85Vac176Vac, it can not only ensure the maximum load demand at low input voltage, but also ensure the reliable operation of the module.
