Product Details:
|
| MIKROTIK: | Cloud Core Router 12x SFP, 1x SFP+ 10Gbit RouterOS L6 | Cloud Router: | 2GB RAM, LCD Panel |
|---|---|---|---|
| RouterOS V6: | A Touchscreen LCD And A USB Port | 1U: | 1U - SFP - SFP+ - |
| MIKROTIK Router: | Dual Power Supplies, RouterOS L6 | Gigabit Router: | Mikrotik Gigabit Ethernet Ports Router CCR1016-12S-1S+ |
| Wired Router: | MikroTik MT CCR1016-12S-1S+ CCR1016-12S-1S+ Wired Router | Selling Units: | Single Item |
| Single Package Size : | 48X29X6 Cm | Single Gross Weight: | 2.000 Kg |
| High Light: | CCR1016-12S-1S,Mikrotik Cloud Core Router,Wired 2 SFP Ports Router |
||

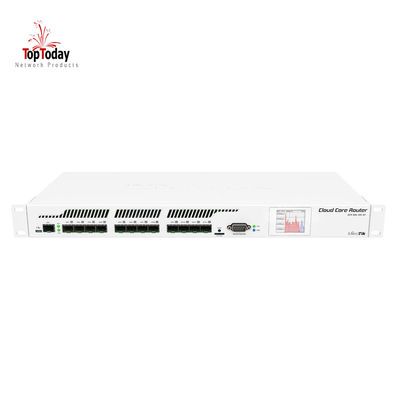

CCR1016 is an industrial grade router with a cutting edge 16 core Tilera CPU. If you need many millions of packets per second - Cloud Core Router is your best choice.
This model has twelve SFP ports and one SFP+ port for 10G connectivity. It is available in a 1U rackmount case and also has a serial console port, a touchscreen LCD and a USB port.
The CCR1016-12S-1S+ comes with redundant power supplies and one RJ45 SFP 10/100/1000M copper module. SFP+ cage supports regular SFP (1.25G) modules as well
|
Details |
|
|
Product code |
CCR1016-12S-1S+ |
|
SFP DDMI |
Yes |
|
CPU nominal frequency |
1.2 GHz |
|
CPU core count |
16 |
|
Size of RAM |
2 GB |
|
Architecture |
TILE |
|
10/100 Ethernet ports |
None |
|
10/100/1000 Ethernet ports |
None |
|
MiniPCI slots |
0 |
|
MiniPCI-e slots |
0 |
|
Number of USB ports |
1 |
|
Power Jack |
2 |
|
802.3af support |
No |
|
Supported input voltage |
24 V - 24 V |
|
PoE in |
No |
|
PoE out |
No |
|
Voltage Monitor |
Yes |
|
PCB temperature monitor |
No |
|
CPU temperature monitor |
Yes |
|
Operating System |
RouterOS v6 |
|
Operating temperature range |
Max ambient temperature 50° @ 1.2GHz; 70° @ 1GHz CPU core frequency |
|
License level |
6 |
|
Current Monitor |
Yes |
|
CPU |
TLR4-01680CG-12CE-A3a |
|
Max Power consumption |
44W |
|
SFP ports |
12 |
|
SFP+ ports |
1 |
|
USB slot type |
microUSB type AB |
|
Serial port |
RS232 |
