Product Details:
|
Features: | Dual-Radio Performance, Gigabit Speeds | Product Name: | UAP-AC-LR |
---|---|---|---|
Gigabit Speed: | 2.4 GHz Speed 5 GHz Speed | Indoor AP: | 802.3af/A PoE & 24V PoE |
Wireless Access Point: | UniFi UAP-AC-LITE 802.11ac Mini Wireless Access Point | Weight: | 240 G (8.5 Oz) |
Dimensions: | 175.7 X 175.7 X 43.2 Mm | Max. Power Consumption: | 6.5W |
High Light: | UniFi ac LR Access Point,802.11ac Access Point,UAP AC LR 802.11ac |

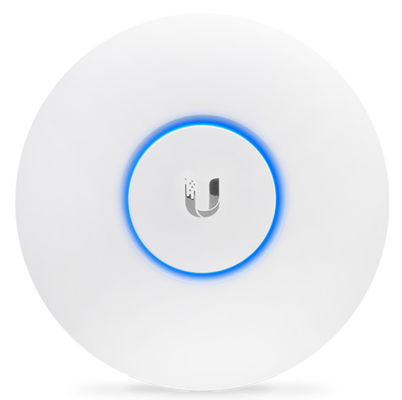

UBNT Enterprise Ceiling Wireless AP UAP-AC-LR Gigabit Dual Frequency 802.11ac High Power WiFi Coverage
Descriptions
UniFiAP AC-LR uses Multi-Lane RF technology and built-in 2.4G, 5G dual radio frequency to complete a dedicated circuit to isolate the signal of the working channel and suppress interference. In terms of management, UniFiAP AC-LR can use the web browsers of multiple devices to access the UniFi controller, and only one UniFi controller running in the cloud can configure and manage thousands of UniFiAPs.
UniFiAP AC-LR is 175x175x43.2mm in size, weighs about 240g, has a gigabit adaptive network port, built-in dual-band antenna, uses PoE power supply, power consumption is 6.5W, WiFi standard is 802.11a/b/g/n /ac.
UAP-AC-LR | |
Dimensions |
175.7 x 175.7 x 43.2 mm (6.92 x 6.92 x 1.70") |
---|---|
Weight
|
240 g (8.5 oz)
|
Networking Interface |
(1) 10/100/1000 Ethernet Port |
Buttons |
Reset |
Power Method |
Passive PoE (Pairs 4, 5+; 7, 8 Return) |
Power Supply |
24V, 0.5A PoE Gigabit Adapter1 |
Max. Power Consumption |
6.5W |
Max. TX Power
|
|
MIMO
|
|
Throughput Speeds2
|
|
Range2 |
183 m (600 ft) |
Antennas |
(1) Dual-Band Antenna, Tri-Polarity |
Antenna Gain |
2.4 GHz: 3 dBi, 5 GHz: 3 dBi |
Wi-Fi Standards |
802.11 a/b/g/n/ac |
Wireless Security |
WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
BSSID |
Up to Four per Radio |
Mounting |

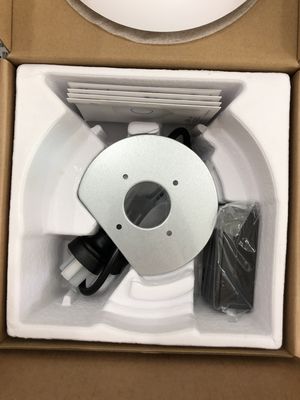

Wall/Ceiling (Kits Included) |
Operating Temperature |
-10 to 70° C (14 to 158° F) |
Operating Humidity |
5 - 95% Noncondensing |
Certifications |
CE, FCC, IC |
1. Only the single-pack of the UAP-AC-LR includes a PoE adapter.
2. Speed and Range values may vary and are based on optimal environments.
Operating Frequency (MHz) | ||
US/CA |
2400 - 2483.5 | |
---|---|---|
U-NII-1 |
5150 - 5250 | |
U-NII-2A |
5250 - 5350 | |
U-NII-2C |
5470 - 5725 | |
U-NII-3 |
5725 - 5850 | |
Worldwide |
2400 - 2483.5 5150 - 5875 |
Features
* UniFi - a revolutionary system for creating Wi-Fi networks
Unifi is a revolutionary Wi-Fi system that is characterized by high performance, unlimited scalability and a central controller, enabling the management of all devices in the network. Access points Unifi are distinguished by a modern, minimalist design. Easy and quick fixing is ensured by the included mounting kit. The Unifi controller can be accessed using any web browser. This powerful tool allows you to manage the entire network made of Unifi devices from one place. The software is very intuitive and the operation requires no special training.
* Save time and money
Unlike traditional corporate Wi-Fi systems using a hardware controller, the Unifi system uses a dedicated controller that can be deployed on any computer, or you can use a dedicated UniFi Cloud Key device.
* Unifi Controller functions
- Map coverage coverage
- Performance parameters
- Real-time status of devices
- Automatic UAP device detection
- Advanced security options
* Expandable
Thanks to an innovative antenna and unlimited scalability, building wireless networks has never been so easy. Start with one UAP device and extend your network up to a thousand devices while maintaining a single management system.
