Product Details:
|
| Max. LAN Data Rate: | 1000Mbps | With Modem Function: | Yes |
|---|---|---|---|
| Standards And Protocols: | Wi-Fi 802.11ac, Wi-Fi 802.11b, Wi-Fi 802.11g | Wi-Fi Supported Frequency: | 2.4G |
| Wi-Fi Transmission Standard: | 802.11ac | Wired Transfer Rate: | 10/100/1000Mbps |
| Type: | Wired | Function: | Firewall, Voip, QoS, VPN |
| LAN Ports: | 4, 5 | WAN Ports: | 1 X10/100/1000Mbps |
| Product Name: | MikroTik | CPU: | QCA9531 |
| Max Power Consumption: | 51W | Size Of RAM: | 64MB |
| Application: | HOME And Office | PoE In: | Passive PoE |
| Products Status: | Stock | Selling Units: | Single Item |
| Single Package Size : | 59X15X5 Cm | Single Gross Weight: | 1.000 Kg |
| Package Type: | NEW IN THE BOX. | ||
| High Light: | RB750UPr2 Ethernet Router,5 Port RB750UPr2,5 Port RB750UPr2 |
||

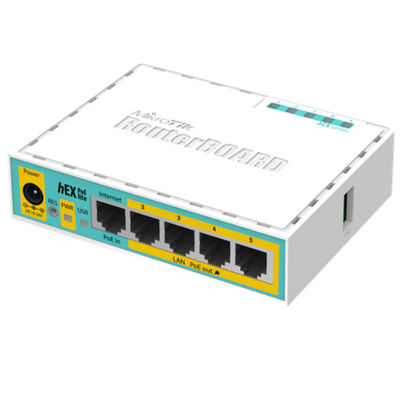

MikroTik RB750UPr2 (hEX PoE lite) RouterOS 5 100M Ethernet port wired router 24V POE switch
Overvews
RB750UPr2 (hEX PoE lite)5 megabit outlets, 4 support PoE output, USB, 650MHz CPU, 64MB RAM, RouterOS L4
hEX PoE lite is a small five-port Ethernet router with a plastic case that has a USB 2.0 port and PoE output.
Port 2-5 can power other PoE devices with the same voltage. The maximum current per port is 1A, and the Ethernet port is shielded.
It is affordable, small in size and easy to use. Its compact design and clean appearance will perfectly fit any SOHO environment.
Features
Parameter
|
Detail |
|
|---|---|
|
Product code |
RB750UPr2 |
|
Architecture |
MIPSBE |
|
CPU model |
QCA9531 |
|
The number of CPU cores |
1 |
|
CPU frequency |
650 MHz |
|
size |
113x89x28mm |
|
The level of the license |
4 |
|
operating system |
RouterOS |
|
Memory capacity |
64 MB |
|
Storage capacity |
16 MB |
|
The type of storage |
FLASH |
|
Operating ambient temperature |
-40°C to 70°C |
Power supply
|
Detail |
|
|---|---|
|
PoE input |
Passive PoE |
|
PoE input voltage |
8-30 V |
|
The amount of power supplied |
2 (DC jack, PoE-IN) |
|
DC supply voltage |
8-30 V |
|
Maximum power consumption |
51 W |
|
Maximum power consumption without load |
3 W |
PoE output
|
Detail |
|
|---|---|
|
PoE output port |
Ether2-Ether5 |
|
PoE output |
Passive PoE |
|
Maximum output per port (input < 30 V) |
1 A |
|
Maximum Total Output (A) |
2 A |
Wire
|
Detail |
|
|---|---|
|
A 100-megabit wired port |
5 |
Other devices
|
Detail |
|
|---|---|
|
The number of USB ports |
1 |
|
THE USB POWER SUPPLY IS RESET |
Yes |
|
The type of USB interface |
USB type A |
|
USB Max Current (A) |
1 |
Other
|
Detail |
|
|---|---|
|
Current monitoring |
Yes |
|
PCB temperature monitoring |
Yes |
|
Voltage monitoring |
Yes |
Certification and approval
|
Detail |
|
|---|---|
|
Authentication |
CE/RED, EAC, ROHS |
