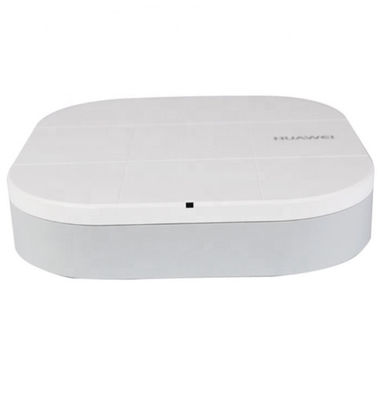

Large Image :  AP1050DN-S Indoor Poe Dual Band Wireless Access Access Point

Product Details:
Place of Origin: Guangdong, China
Brand Name: Huawei
Certification: CE FCC RoHS
Model Number: AP1050DN-S, AP1050DN-S
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable

AP1050DN-S Indoor Poe Dual Band Wireless Access Access Point

Description
Type: Optical Fibers Use: FTTX
Application: Huawei Indoor AP Function: Wireless Access Point
Dimensions (H * W *D): 35 Mm * 170 Mm * 170 Mm Weight: 0.41 Kg
Warranty: 1 Year Selling Units: Single Item
Single Package Size : 57X5X32 Cm Single Gross Weight: 3.000 Kg
Package Type: New In The Box.
High Light:

AP1050DN-S

,

Huawei indoor AP

,

AP1050DN-S Access Point

The original Huawei AP1050DN-S indoor dual band wireless access antenna supports Poe power supply in one



AP1050DN-S Access Point


AP1050DN-S Mainframe(11ac wave2,indoor,1X1Dual Band,Built-in Antenna,1*GE Port)
Huawei AP1050DN-S is a wireless access point (AP) targeted at the SMB distribution market. It provides comprehensive service support capabilities and features high reliability, high security, simple network deployment, automatic AC discovery and configuration, and real-time management and maintenance, which meets network deployment requirements. The AP complies with 802.11n and 802.11ac protocols and can provide gigabit access for wireless users. The AP1050DN-S is applicable to commercial chains, medical, warehousing, manufacturing, and logistics environments

AP1050DN-S Radio specifications
Item
Description
Antenna type
Built-in omnidirectional dual-band antenna
Antenna gain
* 2.4 GHz: 5 dBi
* 5 GHz: 5 dBi
Maximum number of users
Fit AP: ≤ 256
Fat AP: ≤ 256
Cloud AP: ≤ 256
Maximum number of VAPs for each radio
16
Maximum transmit power
* 2.4 GHz: 20 dBm
* 5 GHz: 20 dBm
Maximum number of non-overlapping channels
2.4 GHz (2.412 GHz to 2.472 GHz)
* 802.11b/g * 20 MHz: 3
* 802.11n * 20 MHz: 3
* 40 MHz: 1
5 GHz (5.18 GHz to 5.825 GHz)
* 802.11a * 20 MHz: 13
* 802.11n * 20 MHz: 13
* 40 MHz: 6
* 802.11ac * 20 MHz: 13
* 40 MHz: 6
* 80 MHz: 3
Channel rate supported
* 802.11b: 1, 2, 5.5, and 11 Mbit/s
* 802.11a/g: 6, 9, 12, 18, 24, 36, 48, and 54 Mbit/s
* 802.11n: 6.5 to 200 Mbit/s
* 802.11ac: 6.5 to 433.3 Mbit/s




AP1050DN-S Basic specifications
Item
Description
Physical specifications
Dimensions (H x W x D)
35 mm × 170 mm × 170 mm
Weight
0.41 kg
System memory
256 MB DDR3L
FLASH
64 MB NOR FLASH
Power specifications
Power input
* DC: 12 V ± 10%
* PoE power supply: in compliance with IEEE 802.3af/at
Maximum power consumption
8.1 W
NOTE:The actual maximum power consumption depends on local laws and regulations.
Environment specifications
Operating temperature
* -60 m to +1800 m: -10°C to +50°C
* 1800 m to 5000 m: Temperature decreases by 1°C every time the altitude increases 300 m.
Storage temperature
-40°C to +70°C
Operating humidity
5% to 95% (non-condensing)
IP rating
IP41
Atmospheric pressure
53 kPa to 106 kPa






AP1050DN-S Indoor Poe Dual Band Wireless Access Access Point 0AP1050DN-S Indoor Poe Dual Band Wireless Access Access Point 1
AP1050DN-S Indoor Poe Dual Band Wireless Access Access Point 2
 AP1050DN-S Indoor Poe Dual Band Wireless Access Access Point 3AP1050DN-S Indoor Poe Dual Band Wireless Access Access Point 4
