5760-10 2X2 MIMO Dual Band 1.77gbps POE Wireless Access Point

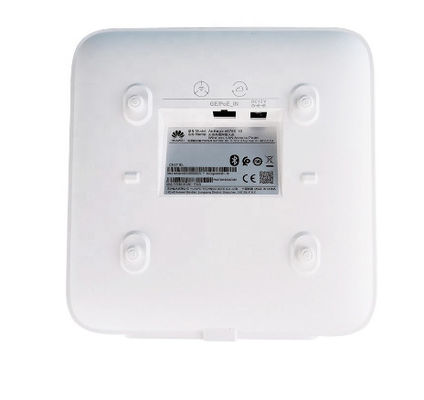

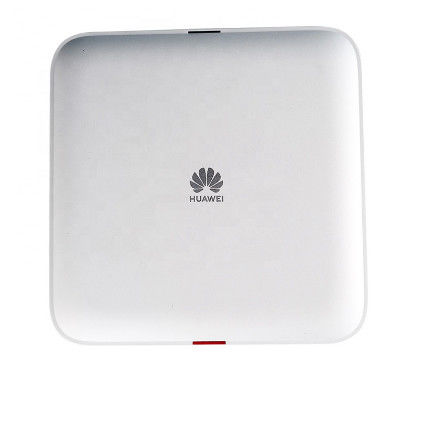

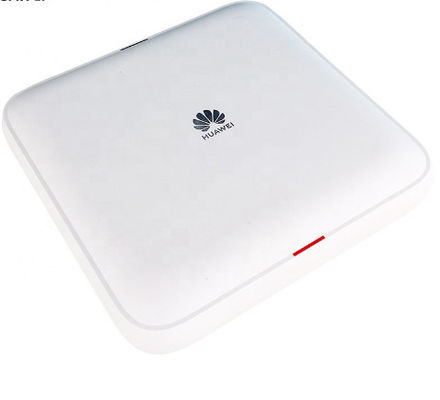

Large Image : 5760-10 2X2 MIMO Dual Band 1.77gbps POE Wireless Access Point

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Huawei
Model Number:	AirEngine5760-10, AirEngine5760-10

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable

Contact Now

5760-10 2X2 MIMO Dual Band 1.77gbps POE Wireless Access Point

Description

Type:	Optical Fibers	Use:	FTTX
Product Name:	Indoor Access Point	Radio Protocols:	802.11a/b/g/n/ac/ac Wave 2/11ax
Highest Rate:	1.774Gbit/s	MIMO Spatial Streams:	2 X 2
Number Of Users:	512	Warranty:	1 Year
Selling Units:	Single Item	Single Package Size :	57X5X32 Cm
Single Gross Weight:	3.000 Kg	Package Type:	New In The Box.
High Light:	1.77gbps POE Wireless Access Point , 2X2 POE Wireless Access Point , AirEngine 5760-10

The original genuine Huawei AirEngine5760-10 Wi-Fi6 supports 2 * 2 MIMO dual band transmission rate of 1.77gbps

AirEngine 5760-10 Access Point

AirEngine 5760-10 is a Wi-Fi 6 (802.11ax) Access Point (AP) that supports 2 x 2 Multiple-Input Multiple-Output (MIMO), delivering services on both the 2.4 GHz and 5 GHz bands, achieving a rate of up to 1.774 Gbit/s. With built-in smart antennas that enable signals to follow Stations (STAs), providing better coverage, the AP is ideal for Small and Medium Enterprises (SMEs), cafés, and entertainment venues.

• Support 802.11ax and OFDMA. • Provide services simultaneously on both the 2.4 GHz and 5 GHz bands, at a rate of up to 574 Mbit/s at 2.4 GHz, 1.2 Gbit/s at 5 GHz, and 1.774 Gbit/s for the device. • USB interface used for external power supply and storage. • Provide an external IoT module, allowing for flexible IoT application extension. • Support the Fat, Fit, and cloud modes. • Enable Huawei SDN controller to manage and operate APs and services on the APs, reducing network O&M costs.

Specifications	AirEngine 5760-10
Dimensions (H x W x D)	47 x 200 x 200 mm
Power Input	DC: 12 V ± 10%
Power Input	PoE: In compliance with IEEE 802.3at
Maximum Power Consumption	15.8 W (excluding output power consumption of the USB interface and IoT)
Maximum Power Consumption	Note: The actual maximum power consumption depends on local laws and regulations.
Antenna Type	Built-in smart antennas
Maximum Number of Users	≤ 512
Maximum Number of Users	Note: The actual number of users varies according to the environment.
Maximum Transmit Power	2.4G: 25 dBm (combined power)
	5G: 25 dBm (combined power)
	Note: The actual transmit power depends on local laws and regulations.
MIMO: Spatial Streams	2.4G: 2 x 2:2 5G: 2 x 2:2
Radio Protocols	802.11a/b/g/n/ac/ac Wave 2/11ax
Maximum Rate	1.774 Gbit/s
