Product Details:
|
| Product Name: | EA5801-GP08 | Type: | GPON OLT,OLT Optical Line Terminal |
|---|---|---|---|
| Warranty: | 1 Year | Power Supply: | 220VAC/48VDC Power |
| GPON Ports: | 32 | ARP/router Table: | 64K |
| High Light: | SmartAX OLT Optical Line Terminal,48VDC OLT Optical Line Terminal,EA5801- GP08 |
||

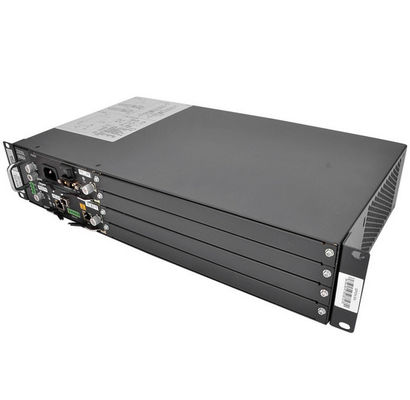

Huawei SmartAX EA5801- GP08 OLT Optical Line Terminal
SmartAX EA5801-GP08 Feature:
1. SmartAX EA5801-GP08 Optimized Lightweight OLT for Rapid Network Construction The EA5801-GP08 provides GPON access
2. it provides a unified carrying platform for multiple services
3. SmartAX EA5801-GP08 including broadband, voice, video, and monitoring
4. The EA5801-GP08 supports POL and FTTH network construction modes
5. It carries all services over one fiber network, simplifying network architecture and reducing OPEX
6. The EA5801-GP08 can be installed in indoors or outdoors cabinets
Description:
The EA5801-CG04 provides XG-PON&GPON combo access, and it provides a unified carrying platform for multiple services, including broadband, voice, video, and monitoring. • The EA5801-CG04 supports the PON combo technology, and can work with the built-in WDM1r optical module to support smooth evolution from GPON to XG-PON. • The EA5801-CG04 supports POL and FTTH network construction modes. It carries all services over one fiber network, simplifying network architecture and reducing OPEX. • The EA5801-CG04 can be installed in indoors or outdoors cabinets. When installed outdoors, it can be easily deployed in high temperatures, conserving man power and cabinet space.
Technical Specifications:
EA5801-GP08
|
Item |
Specification |
|---|---|
| Dimensions (H x W x D, excluding mounting ears) | 43.6 mm x 442.0 mm x 222.3 mm |
| Dimensions (H x W x D, including mounting ears of IEC standard) | 43.6 mm x 482.6 mm x 222.3 mm |
| Dimensions (H x W x D, including mounting ears of ETSI standard) | 43.6 mm x 535.0 mm x 222.3 mm |
| Maximum fully-loaded weight (DC) | 4.2 kg |
| Maximum fully-loaded weight (AC) | 4.6 kg |
|
Parameter |
Specification |
|
|---|---|---|
| Power supply mode | DC (dual power for backup) | AC (dual power for backup) |
| Rated voltage | -48 V/-60 V | 110 V/220 V |
| Working voltage range | -38.4 V to -72 | 100 V to 240 V |
| Maximum input current | 6 A | 2.5 A |
Packing
1. All products will be packed in carton, so the product can get effective protection to avoid damage.
2. Packaging according to customer requirement.
Shipping
1. We shipping via DHL / FedEx / TNT etc for samll orders. Yow can get your packages in about 3-5 days all over the world.
2. For big order, we will arrange Air cargo for your shipment, so it will be much cheaper than DHL, UPS etc.
3. You can choose your own shipping agent, we will provide good cooperation for it.
