QCA9531 650MHz LTE Modem Wifi Router MikroTik SXT LTE Kit

QCA9531 650MHz LTE Modem Wifi Router MikroTik SXT LTE Kit
QCA9531 650MHz LTE Modem Wifi Router MikroTik SXT LTE Kit QCA9531 650MHz LTE Modem Wifi Router MikroTik SXT LTE Kit

Large Image :  QCA9531 650MHz LTE Modem Wifi Router MikroTik SXT LTE Kit

Product Details:
Place of Origin: Guangdong, China
Brand Name: MikroTik
Model Number: SXT LTE kit/RBSXTR&R11e-LTE
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable

QCA9531 650MHz LTE Modem Wifi Router MikroTik SXT LTE Kit

Description
Product Name: SXT LTE Kit/RBSXTR&R11e-LTE Brand Name: MikroTik
Type: Optical Fibers CPU: QCA9531
CPU Nominal Frequency: 650MHz Size Of RAM: 64 MB
Dimensions: 140 X 140x 103mm Tested Ambient Temperature: -30°C To 60°C
PoE In: 802.3af/at 2PoE In Input Voltage: 12-57 V
Warranty: 1 Year
High Light:

650MHz LTE Modem Wifi Router

,

QCA9531 LTE Modem Wifi Router

,

MikroTik SXT LTE Kit

Optical Fiber Wifi Router MikroTik SXT LTE kit/RBSXTR&R11e-LTE LTE modem cpe supports POE

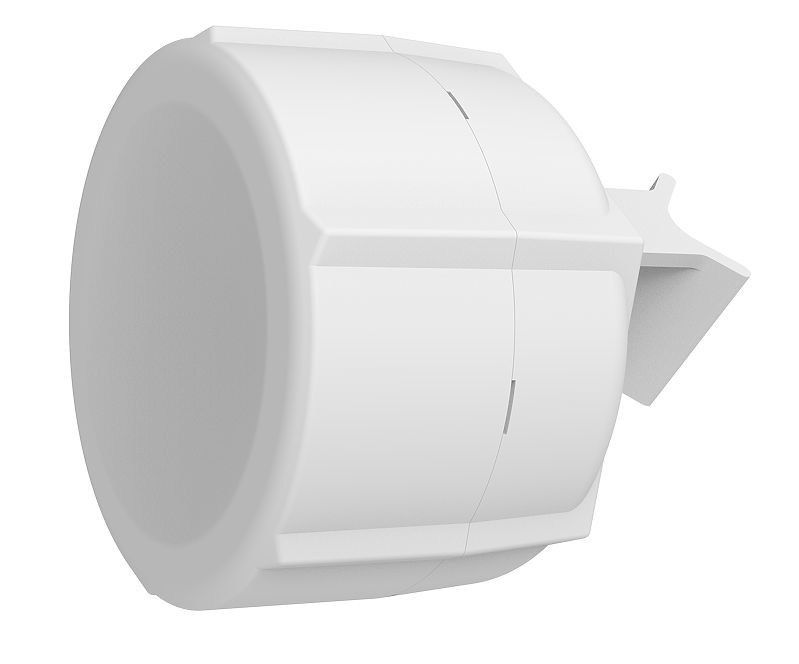

The SXT LTE kit (product code RBSXTR&R11e-LTE) is a device for remote locations that are within cellular network coverage. However, due to it’s professional LTE chip design and high gain antenna, it can provide connectivity for your building even where cell phones can’t.

In comparison with our first generation model RBSXTLTE3-7, the SXT LTE kit is powered by faster CPU and supports not only LTE with more speeds, but also 2G and 3G, as well as much wider band range.

The unit is equipped with two Ethernet ports (the second port has PoE-out functionality), so you can use it to power up another device. The unit includes a 24 V power supply, but can support full range of 12-57 V and 18-57 V with PoE-Out and is 802.3af/at compliant.

The device has a built in high quality 2G/3G/4G/LTE Category 4 modem for speeds of up to 150 Mbit/s downlink and 50 Mbit/s uplink, as well as two Micro SIM slots for backup link.

RBSXTR&R11e-LTE includes LTE modem that supports International LTE bands 1, 2, 3, 7, 8, 20, 38 and 40.

Specifications

Details
Product code RBSXTR&R11e-LTE
Architecture MIPSBE
CPU QCA9531
CPU core count 1
CPU nominal frequency 650 MHz
Dimensions 140 x 140 x 103 mm
License level 3
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
Tested ambient temperature -40°C to 60°C

Powering

Details
PoE in 802.3af/at
PoE in input Voltage 12-57 V
Number of DC inputs 1 (PoE-IN)
Max power consumption 22 W
Max power consumption without attachments 5 W
FAN count Passive


PoE-out

Details
PoE-out ports Ether2
PoE out Passive PoE up to 57V
Max out per port output (input < 30 V) 600 mA
Max out per port output (input > 30 V) 400 mA
Max total out (A) 600 mA


Mobile

Details
2G Category Class12
2G bands 2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
3G Category R7 (21Mbps Downlinks, 5.76Mbps Uplink)
3G bands 1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)
LTE Category 4 (150Mbps Downlink, 50Mbps Uplink)
LTE FDD bands 1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz)
LTE TDD bands 38 (2600MHz) / 40 (2300MHz)


Ethernet

Details
10/100 Ethernet ports 2


Peripherals

Details
Number of SIM slots 2 Modem (Micro SIM)
MiniPCI-e slots 1


Other

Details
Mode button Yes


Certification & Approvals

Details
Certification CE/RED, EAC, ROHS



QCA9531 650MHz LTE Modem Wifi Router MikroTik SXT LTE Kit 0QCA9531 650MHz LTE Modem Wifi Router MikroTik SXT LTE Kit 1
