Product Details:
|
| Brand Name: | UBNT | Model Number: | R5AC-Lite |
|---|---|---|---|
| Dimensions: | 179 X 78 X 59 Mm | Networking Interface: | 10/100/1000 Ethernet Port |
| Power Supply: | 24V, 0.5A Gigabit PoE Adapter (Included) | Power Input: | 8.5W |
| Weight: | 250 G (8.82 Oz) | Max. Power Consumption:: | 8.5W |
| High Light: | 5.8G Wireless Bridge Rocket,R5AC-Lite Wireless Bridge Rocket,8.5W Wireless Camera Surveillance System |
||

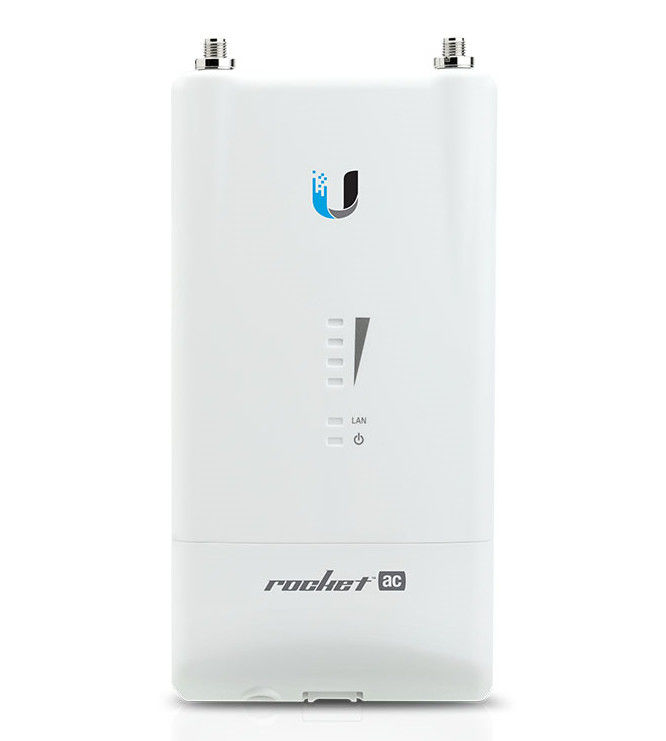

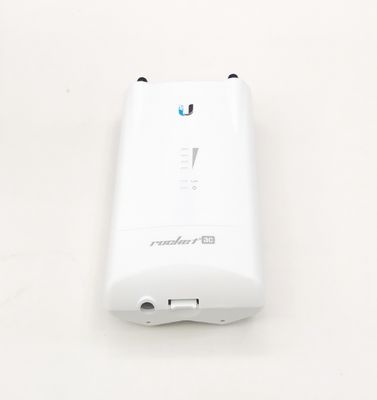

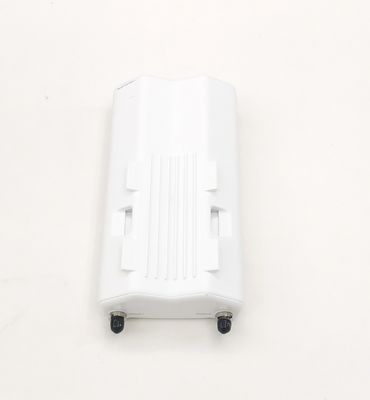

UBNT 5G outdoor wireless bridge Rocket AC R5AC-Lite airmax base station wifi 5.8G
Features
1. A breakthrough in performance
Ubiquiti Rocket access points with airMAX ac technology offer lower latency, high resistance to interference, scalability and significantly increased performance.
2. Perfect data processing
Ubiquiti airmax software with custom IC greatly reduces TDMA latency and improves network scalability. A custom processor provides hardware acceleration of the airMAX scheduler, supporting high data rates and dense modulation used in airMAX ac technology.
3. Plug-and-Play function
The innovative airMAX ac antennas feature significant advances in beam and energy isolation, increasing network capacity.
4. Advanced software technology
Ubiquiti airMAX technology has been tried and tested in millions of installations around the world, demonstrating exceptional performance in open environments. TDMA airMAX protocol enables unprecedented scalability, high bandwidth and low latency in unlicensed, multipoint networks.
5. airOS 8
AirOS 8's advanced features, including airMAX ac support, real-time wireless signal analysis, and a completely improved design provide enhanced functionality.
6. Spectrum analysis
airView allows you to identify noise signatures and plan your network to minimize signal interference. airView performs the following functions:
* constantly monitors ambient noise
* collects energy data in spectral views in real time
* helps to optimize channel selection, network design
|
RP-SMA Antenna Connectors |
|---|
| Used to attach RF cables (not included). |
|
LEDs |
|
Signal In airOS®, you can modify the wireless signal strength threshold values for each LED on the Wireless tab under Signal LED Thresholds. Each LED will light when the wireless signal strength is equal to or greater than the LED’s threshold value.
GPS The GPS LED will light steady blue when the GPS signal strength is sufficient. This requires a minimum of three satellite connections. LAN The LAN LED will light steady blue when an active Ethernet connection is made to the LAN port and flash when there is activity. Power The Power LED will light blue when the device is connected to a power source. |
|
Reset Button |
| To reset to factory defaults, press and hold the Reset button for more than 10 seconds while the device is already powered on. Alternatively, the device may be reset remotely via a Reset button located on the bottom of the Gigabit PoE adapter. |
|
LAN |
| The Gigabit Ethernet port is used to connect the power and should be connected to the LAN and DHCP server. |
Specifications of R5AC-Lite
| Features / filters | |
| Working frequency | 5 GHz |
| Number of LAN ports | 1x [10/100/1000M (RJ45)] |
| LAN standard | Gigabit Ethernet 10/100/1000 Mb/s |
| CPU frequency | 720 MHz |
| RAM | 128MB |
| The type of power supply to the device | Passive PoE |
| Device type | Base stations |
| Basic technical parameters | |
| Dimensions | 162 × 84 × 37 mm |
| Weight | 250 g |
| Power Supply | 24 V, 0,5 A Gigabit PoE adapter |
| Power method | Passive PoE (pairs 4, 5+; 7, 8 return) |
| Maximum power consumption | 8,5 W |
| Working frequency | 5150 - 5875 MHz |
| Processor | Atheros MIPS 74 Kc, 720 MHz |
| Memory | 128 MB DDR2 SDRAM DDR2, 16 MB NOR FLASH |
| Network interface | (1) 10/100/1000 Mbps |
| RF connections | (2) RP-SMA (watertight) |
| LED lights | power supply LAN network (4) signal strength |
| Channel size | PtP 10/20/30/40/50/60/80 MHz mode PtMP 10/20/30/40 MHz mode |
| Characteristics of the housing | UV stabilized plastic |
| Voltage range | 20-26 V DC |
| ESD / EMP protection | ± 24KV air / contact |
| Working temperature | -40 ° C to 80 ° C |
| Working humidity | 5 to 95% |
| Shock and Vibration | ETSI300-019-1.4 |
| Wireless approvals | FCC, IC, CE |
| RoHS Compliant | Yes |
| Operating mode | Access Point, Station |
| Services | Serwer WWW, SNMP, serwer SSH, Telnet , Ping Watchdog, DHCP, NAT, Bridging, Routing |
| Tools | Antenna Alignment Tool, Discovery Utility, Site Survey, Ping, Traceroute, Speed Test |
| Distance adjustment | Dynamic Ack i Ackless Mode |
| Power regulation | Via user interface or CL |
| Security | WPA2 tylko AES |
| QoS | Support for WMM packet classification, client level: high / medium / low |
| Statistics | Reporting time, packet errors, data transmission speed, distance to the wireless network, data transmission speed in the Ethernet network |
| Other features of ubiquiti | Channels 30/50 / 60MHz, airMAX ac mode, Traffic Shaping with Burst Support, Discovery Protocol, frequency band shift, Ackless Mode |
