Product Details:
|
| Product Name: | USG | Brand Name: | UBNT |
|---|---|---|---|
| Dimensions: | 135 X 135 X 28.3 Mm | WAN Ports: | 1 |
| VAN Ports: | 4 | Weight: | 366 G (12.9 Oz) |
| Max. Power Consumption: | 7W | 10/100/1000 Ethernet Ports: | 5 |
| Power Supply: | 12VDC, 1A Power Adapter (Included) | System Memory: | 512 MB DDR2 RAM |
| Supported Voltage Range: | 9 To 24VDC | Warranty: | 1 Year |
| High Light: | 7W Gigabit Wired Router,12VDC Gigabit Wired Router,UniFi USG VPN RADIUS Router |
||

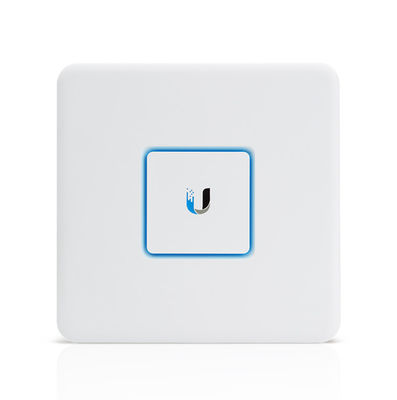

UBNT Gigabit Wired Router 4 Port Security Gateway Firewall UniFi USG VPN RADIUS
| USG | |
|
Dimensions |
135 x 135 x 28.3 mm (5.32 x 5.32 x 1.11") |
|---|---|
|
Weight |
366 g (12.9 oz) |
|
Networking Interfaces |
|
| Serial Console Port | (1) RJ45 Serial Port |
| Data Ports | (3) 10/100/1000 Ethernet Ports |
|
Max. Power Consumption |
7W |
|
Power Supply |
12VDC, 1A Power Adapter (Included) |
|
Supported Voltage Range |
9 to 24VDC |
|
LEDs |
|
| System | Status |
| Serial Console Port | Power |
| Data Ports | Speed/Link/Activity |
|
Layer 3 Forwarding Performance |
|
| Packet Size: 64 Bytes | 1,000,000 pps |
| Packet Size: 512 Bytes or Larger | 3 Gbps (Line Rate) |
|
Processor |
Dual-Core 500 MHz, MIPS64 with Hardware Acceleration for Packet Processing |
|
System Memory |
512 MB DDR2 RAM |
|
On-Board Flash Storage |
2 GB |
|
Rackmount |
Yes |
|
Operating Temperature |
-10 to 45° C (14 to 113° F) |
|
Operating Humidity |
10 to 90% Noncondensing |
|
Certifications |
CE, FCC, IC |
