Product Details:
|
| Product Name: | EP-R8 | Brand Name: | UBNT |
|---|---|---|---|
| Weight: | 795 G (1.75 Lb) | WAN Ports: | 2 |
| VAN Ports: | 10 | VDC Input: | 54V / 6A |
| PoE In Port: | 10/100/1000 RJ45 Ports | Dimensions: | 326.6 X 382.7 X 88.8 Mm (12.86 X 15.07 X 3.50") |
| Max. Power Consumption:: | 40W (Excludes PoE Output) | Power Supply: | Min. 54V / 0.8A (Excludes PoE Output Power) |
| Supported Voltage Range: | +42 To +56VDC | Warranty: | 1 Year |
| High Light: | 40W Optical Fiber Wifi Router,10AWG Optical Fiber Wifi Router,UBNT EdgePoint EP-R8 |
||

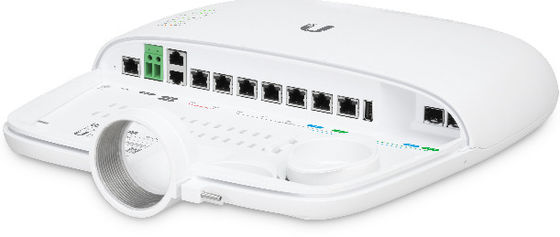

UBNT EdgePoint EP-R8 Gigabit multi-service three-layer router supports 24V POE output
We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti.
Either the VDC or PoE input type is used at any one time. If both are connected, only the input type with the highest voltage will be used; the other can be used as a backup.
Both PoE inputs can be used at the same time. If there is a voltage difference, the higher-voltage source will be used first. The voltage from the initial source will drop as the load increases. When the voltage drops to the same level as the lower-voltage source, then the lower-voltage source will also start providing power.
The number of devices that can be powered depends on the power consumption of the specific devices and the power input option. Example: If you provide 54VDC, 1.5A, then you have 81W of power. If the EdgePoint uses 40W (Max. Power Consumption), then you have 41W available for passive PoE output. Check product specifications for the power consumption values to use in your calculations.
| EP-R8 | |
|
Dimensions |
326.6 x 382.7 x 88.8 mm (12.86 x 15.07 x 3.50") |
|---|---|
| With Wall-Mount | 326.6 x 382.7 x 105.5 mm (12.86 x 15.07 x 4.15") |
|
Weight |
3.4 kg (7.50 lb) |
| With Wall-Mount | 3.8 kg (8.38 lb) |
|
Max. Power Consumption |
40W (Excludes PoE Output) |
|
Power Input |
(1) DC Terminal Block or (2) RJ45 (PoE In and eth0) (Self-Correcting Polarity Protection on DC Terminal Block Only, |
|
Power Supply |
Min. 54V / 0.8A (Excludes PoE Output Power) |
|
VDC Input |
54V / 6A |
|
Passive PoE Input |
(2) 54V / 1.5A, 4-Pair (+1, 2, 4, 5; -3, 6, 7, 8) Passive PoE, eth0 and PoE In (PoE In: DC Only) |
|
Passive PoE Output |
(2) 54V or 24V / 1.4A, 4-Pair (+1, 2, 4, 5; -3, 6, 7, 8) Passive PoE, eth1 to eth2 (5) 24V / 0.7A, 2-Pair (+4, 5; -7, 8) Passive PoE, eth3 to eth7 |
|
Power Monitoring |
(1) DC Terminal Block, Input Power (2) RJ45, PoE In and eth0, Input Power |
|
Supported Voltage Range |
+42 to +56VDC (-48V is NOT Supported) |
|
Button |
Reset |
|
LEDs |
|
| System | Power |
| eth0 | Speed/Link/Activity |
| eth1 to eth7 | Speed/Link/Activity, PoE |
| SFP | Speed/Link/Activity |
|
Ports |
|
| Serial Console Port | (1) RJ45 Serial Port |
| PoE In Port | (1) RJ45 Port |
| Data Ports | (6) 10/100/1000 RJ45 Ports (2) 10/100/1000 RJ45/SFP Combination Ports |
|
Processor |
Dual-Core 600 MHz, MIPS64 with Hardware Acceleration for Packet Processing |
|
System Memory |
2 GB DDR3-1600 RAM |
|
Code Storage |
4 GB |
|
Certifications |
CE, FCC, IC |
|
Pole/Wall Mount |
Yes |
|
Operating Temperature |
-40 to 65° C (-40 to 149° F) |
|
Operating Humidity |
10 - 90% Noncondensing |
