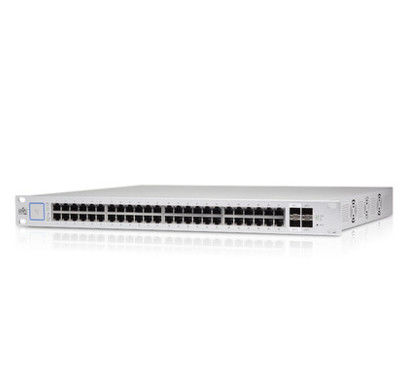

The UniFi® Switch US-48-500W by Ubiquiti is a fully managed gigabit switch. The device provides high performance thanks to 48 independent switching ports, 2 SFP ports and 2 SFP + ports offering optical connectivity. The switch supports PoE + 802.3af / at or passive PoE 24V with a total power of 500W.
Special features of the US-48-500W
- 48 Gigabit RJ45 ports
- 2 SFP + ports
- 2 SFP ports
- 1 x Serial Console port
- Non-blocking throughput: 70 Gbps
- Switching capacity: 140 Gbps
- Forwarding Rate: 104.16Mpps
- Max power consumption: 500W
- POE + IEEE 802.3at / af and 24V Passive PoE support
- For installation in a rack
SPECIFICATION
| Features / filters | |
| Number of LAN ports | 48x [10/100 / 1000M (RJ45)], 2x [1G (SFP)], 2x [10G (SFP +)], |
| PoE ports quantity | 48x [802.3af / at (1G)], 48x [Passive PoE 24V (1G)], |
| LAN standard | Gigabit Ethernet 10/100/1000 Mb/s |
| Power (W) | 500 |
| Housing type | Rack (1U), Metal, |
| Switching layer | 2 |
| Management | CLI - Command Line Interface, Dedicated application, |
| Basic technical parameters | |
| Dimensions | 485.04 x 44.45 x 347.6 mm (19.1 x 1.75 x 13.69 ")` |
| Weight | 5.3 kg (11.68 lb) |
| Non-Blocking Throughput | 70 Gbps |
| Switching capacity | 140 Gbps |
| Forwarding Rate | 104.16 Mpps |
| Energy consumption | 500W |
| Supply voltage | AC / DC 500W DC |
| LED indicators | RJ45 ports: PoE, Speed / Link / Activity SFP + / SFP Ports: Speed / Link / Activity |
| Network interfaces | 48 10/100/1000 MbpsRJ45 Ethernet ports 2 x 1/10 Gbps SFP + Ethernet port 2 x 1 Gbps SFP Ethernet |
| Management interface | 1 RJ45 Serial port 2 Ethernet In / Out Band ports |
| Certificates | CE, FCC, IC |
| Installation in a rack | Yes, 1U high |
| ESD / EMP protection | Air: ±24 kV, Contact: ±24 kV |
| Ambient temperature during operation | -5 to 40 ° C (23 to 104 ° F) |
| Ambient humidity during operation | 5 is 95% non-condensing |
| Vibration resistance | ETSI300-019-1.4 Standard |
| PoE | |
| PoE interfaces | POE + IEEE 802.3af / at (Pins 1,2+; 3, 6-) 24VDC Passive PoE (Pins 4, 5+; 7, 8-) |
| PoE + max power for each port via PSE | 34.2W |
| 802.3at voltage range | 50–57V |
| Passive PoE power per port | 17W |
| 24V Passive PoE voltage range | 20-27V |
