Installation Requirements
-
Phillips screwdriver (for rack- or wall-mounting)
-
Standard-sized, 19" wide rack with a minimum of 1U height available (for rack-mounting)
-
For indoor applications, use Category 5 (or above) UTP cabling approved for indoor use.
-
For outdoor applications, shielded Category 5 (or above) cabling should be used for all wired Ethernet connections and should be grounded through the AC ground of the power supply.
We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti.
|
System LED |
|||
|---|---|---|---|
|
|||
|
Flashing White |
Bootup in progress. |
||
|
White |
Ready for use, not connected to Ubiquiti® Network Management System (UNMS™). See “UNMS Management”. |
||
|
Blue |
Ready for use, connected to UNMS. |
||
|
Steady Blue with Occasional Flashing |
Ready for use, unable to connect to UNMS, check connection to UNMS server. |
||
|
Quickly Flashing Blue |
Used to locate a device in UNMS. |
||
|
Alternating |
Firmware upgrade in progress. |
||
|
RJ45 Speed/Link/Activity LED (Ports 1 - 24) |
|||
|
Off |
No Link |
||
|
Amber |
Link Established at 10/100 Mbps Flashing Indicates Activity |
||
|
Green |
Link Established at 1000 Mbps (1 Gbps) Flashing Indicates Activity |
||
|
SFP Speed/Link/Activity LED (Ports 1 - 2) |
|||
|
Off |
No Link |
||
|
Amber |
Link Established at 100 Mbps Flashing Indicates Activity |
||
|
Green |
Link Established at 1000 Mbps (1 Gbps) Flashing Indicates Activity |
||
|
RJ45 (Ports 1 - 24) |
|||
|
RJ45 ports support 10/100/1000 Ethernet connections. |
|||
|
SFP (Ports 1 - 2) |
|||
|
Hot-swappable SFP ports support 1 Gbps connections. |
|||
|
Reset Button |
|||
|
There are two methods to reset the EdgeSwitch to factory defaults: Runtime Reset (Recommended) The EdgeSwitch should be running after bootup is complete, and the System LED is white. Press and hold the Reset button. The EdgeSwitch will reboot, and the System LED becomes blue after three seconds. Continue to hold the Reset button for about 15 seconds until the System LED flashes blue for two seconds. This indicates that the EdgeSwitch has reset to its factory defaults. Power-on Reset
|
|||
|
Console Port |
|||
|
RJ45 serial console port for Command Line Interface (CLI) management. Use an RJ45-to-DB9, serial console cable, also known as a rollover cable, to connect the Console port to your computer. Then configure the following settings as needed:
|
|||
|
DC Input |
|||
|
The 25VDC input can connect a redundant or stand-alone DC power source (not included) with minimum power: 25W, 25 to 16V, and 2.5 mm DC power inline connector.
|
|||
|
Power Port |
|||
|
Connect the included Power Cord to the Power port. |
|||
Specifications
|

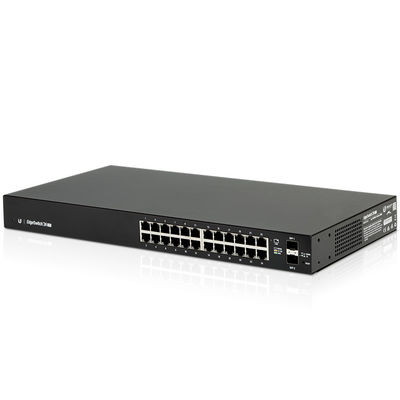

ES-24-Lite |
|
|
Dimensions |
443 x 43 x 221 mm (17.44 x 1.69 x 8.70") |
|---|---|
|
Weight |
|
|
Rack-Mount Brackets Included |
2.6 kg (5.7 lb) |
|
Rack-Mount Brackets Excluded |
2.51 kg (5.53 lb) |
|
Total Non-Blocking Line Rate |
26 Gbps |
|
Max. AC Power Consumption |
25W |
|
Power Method |
|
|
AC |
100-240VAC/50-60 Hz, Universal Input |
|
DC |
DC 25W, 25 to 16V, with 2.5 mm |
|
Power Supply |
AC/DC, Internal, 25W DC |
|
Rack-Mount |
Yes, 1U High |
|
ESD/EMP Protection |
Air: ± 24 kV, Contact: ± 24 kV |
|
Shock and Vibration |
ETSI300-019-1.4 Standard |
|
LEDs Per Port |
|
|
RJ45 Data Ports |
Speed/Link/Activity |
|
SFP Data Ports |
Speed/Link/Activity |
|
Interfaces |
|
|
Networking Interfaces |
(24) 10/100/1000 Mbps RJ45 Ethernet Ports |
|
Management Interface |
(1) RJ45 Serial Port, |
|
Operating Temperature |
-5 to 40° C (23 to 104° F) |
|
Operating Humidity |
5 to 95% Noncondensing |
|
Certifications |
CE, FCC, IC |
