Product Details:
|
| Brand Name: | UBNT | Model Number: | UAP-AC-SHD |
|---|---|---|---|
| Voltage Range: | 44 To 57VDC | Concurrent Clients: | 500+ |
| Power Method: | 802.3at PoE+ | VLAN: | 802.1Q |
| Networking Interface: | 10/100/1000 Ethernet Ports | PWi-Fi Standards: | 802.11 A/b/g/n/r/k/v/ac/ac-wave2 |
| BSSID: | Up To 8 Per Radio | Power Consumption: | 17W |
| Warranty: | 1 Year | ||
| High Light: | Dual Frequency poe access point,4x4MIMO poe access point,UAP-AC-SHD |
||

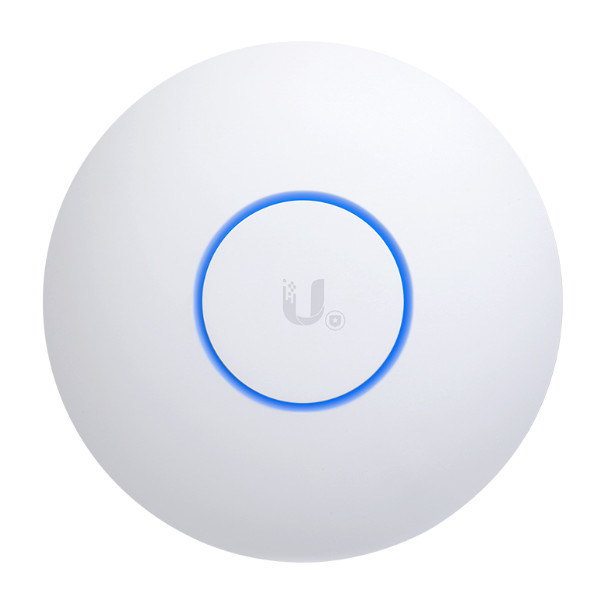

UBNT UAP-AC-SHD Enterprise-class wireless AP ceiling dual-frequency 4x4MIMO multi-user WiFi coverage
UniFi® is the revolutionary Wi-Fi system that combines enterprise performance, unlimited scalability, and a central management controller. The UniFi HD AP has a refined industrial design and can be easily installed using the included mounting hardware.
Easily accessible through any standard web browser and the UniFi app (iOS or Android™), the UniFi Controller software is a powerful software engine ideal for high-density client deployments requiring low latency and high uptime performance.
Use the UniFi Controller software to quickly configure and administer an enterprise Wi-Fi network – no special training required. RF map and performance features, real-time status, automatic UAP device detection, and advanced security options are all seamlessly integrated.
|
UAP-AC-SHD |
|
|
Dimensions |
220 x 220 x 48.1 mm (8.66 x 8.66 x 1.89") |
|
Weight |
700 g (1.54 lb) |
|
Network interface |
(2) 10/100/1000 Ethernet |
|
Buttons |
Reset |
|
Power method |
802.3at PoE+ |
|
Supported voltage range |
44 to 57 VDC |
|
Power |
UniFi Switch (PoE) |
|
Energy saving |
Supported |
|
Maximum energy consumption |
20 W |
|
Radio |
2.4 GHz, 5 GHz, Security |
|
Maximum TX Power |
6-25 dBm |
|
Antennas |
2.4 GHz: (2) Dual-Port, dual polarization, 6 dBi each |
|
Wi-Fi standards |
802.11 a/b/g/n/ac/ac-wave2 |
|
BSSID |
Up to 8 on the radio |
|
Assembly |
On the wall / ceiling |
|
Ambient temperature during operation |
-10 to 70 ° C (14 to 158 ° F) |
|
Certificates |
CE, FCC, IC |
|
Advanced traffic management |
|
|
VLAN |
802.1Q |
|
Advanced QoS |
Bandwidth restrictions for each user |
|
Support for guest isolation |
Yes |
|
WMM |
Voice, Video, Best Effort and Background |
|
Concurrent customers |
1500 |
|
Supported data rates (Mbps) |
|
|
Standard |
Data transmission speed |
|
802.11a |
6, 9, 12, 18, 24, 36, 48, 54 Mbps |
|
802.11n |
6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40) |
|
802.11ac |
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80) |
|
802.11b |
1, 2, 5.5, 11 Mbps |
|
802.11g |
|
