Product Details:
|
| Brand Name: | UBNT | Model Number: | AF-24 |
|---|---|---|---|
| Dimensions: | 649 X 426 X 303 Mm (25.55 X 16.77 X 11.93") | Power Supply: | 24.25 GHz |
| Max. Power Consumption: | < 50W | Data Port: | 10/100/1000 Ethernet Port |
| Weight: | 17.3 Kg (38.14 Lb) | TX Gain: | 33 DBi |
| Operating Temperature: | -40 To 55° C (-40 To 131° F) | Warranty: | 1 Year |
| High Light: | 24.25 GHz airfiber antenna,10 Ethernet Port airfiber antenna,Point To Point airfiber antenna |
||

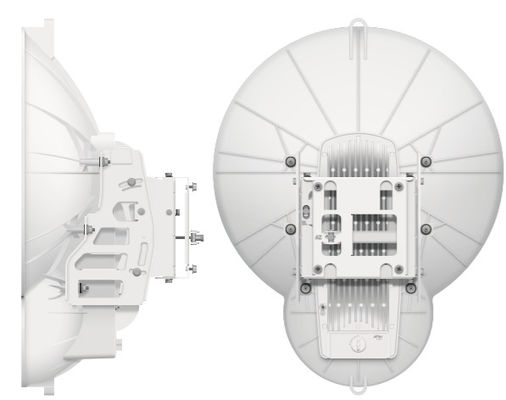

UBNT Networks AIRFIBER 24.24 GHz AF-24 Outdoor Wireless Point to Point Radio
Featuring a dual-independent 2x2 MIMO 24GHz hi-gain reflector antenna system, airFiber can operate in both FDD (Frequency Division Duplex) and HDD (Hybrid Division Duplex) modes for unparalleled speed and spectral efficiency in the 24GHz worldwide license-free band.
Introducing airFiber, a truly revolutionary 24 GHz Point-to-Point radio from Ubiquiti Networks. Housed in a compact, highly efficient form factor, airFiber delivers revolutionary performance of 1.4+ Gbps, aggregate throughput and 13+ km in range. airFiber ushers in a new era in pricedisruptive, carrier-class backhaul technology.
| airFiber AF-24 | |
|
Dimensions |
649 x 426 x 303 mm (25.55 x 16.77 x 11.93") |
|---|---|
|
Weight |
10.5 kg (23.15 lb) Mount Included |
|
Operating Frequency |
24.05 – 24.25 GHz |
|
Power Supply |
50V, 1.2A PoE GigE Adapter (Included) |
|
Power Method |
Passive Power over Ethernet (42-58VDC) |
|
Max Power Consumption |
< 50W |
|
Networking Interface |
|
| Data Port | (1) 10/100/1000 Ethernet Port |
| Configuration Port | (1) 10/100 Ethernet Port |
|
Integrated Split Antenna |
|
| TX Gain | 33 dBi |
| RX Gain | 38 dBi |
|
Mounting |
Pole Mount Kit (Included) |
|
Wind Loading |
306.9 N @ 200 km/hr (69 lbf @ 100 mph) |
|
Operating Temperature |
-40 to 55° C (-40 to 131° F) |
|
Certifications |
CE, FCC, IC |
| Receive Sensitivity | |||
|
Modulation |
Sensitivity | FDD Capacity* | TDD Capacity* |
|---|---|---|---|
|
64QAM |
-66 dBm | 1500 Mbps | 760 Mbps |
|
16QAM |
-72 dBm | 1000 Mbps | 507 Mbps |
|
QPSK MIMO |
-78 dBm | 500 Mbps | 253 Mbps |
|
QPSK SISO |
-80 dBm | 250 Mbps | 127 Mbps |
|
¼x QPSK SISO |
-87 dBm | 62.5 Mbps | 31.7 Mbps |
* FDD = (2) 100 MHz channels and TDD = (1) 100 MHz channel
