Product Details:
|
| Brand Name: | UBNT | Model Number: | AM-5G16-120/AM-5G17-90 |
|---|---|---|---|
| Dimensions: | 367 X 63 X 41 Mm | Wind Survivability: | 41.7 N @ 200 Km/h |
| Weight: | 1.1 Kg | Max. VSWR: | 1.5:1 |
| Warranty: | 1 Year | ||
| High Light: | 17dBi Gain airmax sector antenna,90 degree sector antenna,antena sectoral 5ghz |
||

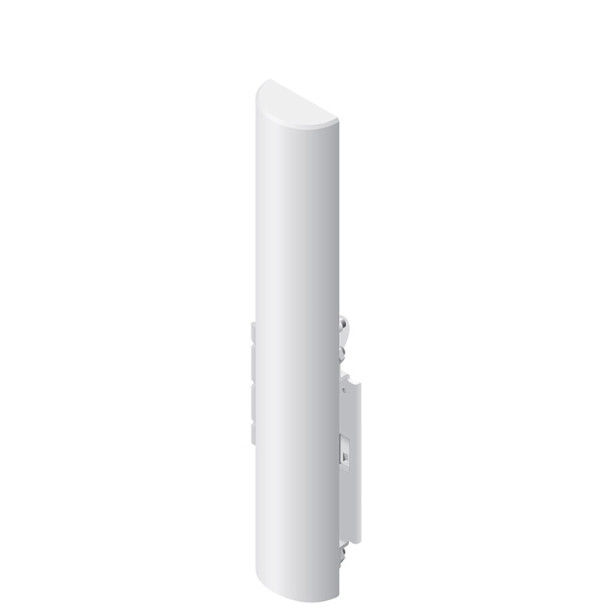

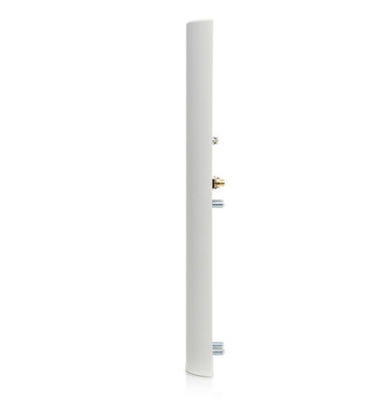

UBNT 5GHz dual-polarized sector antenna AM-5G16-120/AM-5G17-90 120 degree/90 degree 16dBi/17dBi gain
Installation Requirements
Rocket®M5 or RocketM5 GPS (sold separately)
13 mm wrench
Shielded Category 5 (or above) cabling should be used for all wired Ethernet connections and should be grounded through the AC ground of the PoE.
We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti. For more details, visit ui.com/toughcable
Specifications
|
AM-5G16-120/AM-5G17-90 |
|
|
Dimensions |
367 x 63 x 41 mm |
|---|---|
|
Weight (Mount Included) |
1.1 kg |
|
Frequency |
|
|
AM-5G16-120 |
5.10 - 5.85 GHz |
|
AM-5G17-90 |
4.90 - 5.85 GHz |
|
Gain |
|
|
AM-5G16-120 |
15.0 - 16.0 dBi |
|
AM-5G17-90 |
16.1 - 17.1 dBi |
|
HPOL Beamwidth |
|
|
AM-5G16-120 |
137° (6 dB) |
|
AM-5G17-90 |
72° (6 dB) |
|
VPOL Beamwidth |
|
|
AM-5G16-120 |
118° (6 dB) |
|
AM-5G17-90 |
93° (6 dB) |
|
Elevation Beamwidth |
8° |
|
Electrical Downtilt |
4° |
|
Max. VSWR |
1.5:1 |
|
Wind Survivability |
200 km/h |
|
Wind Loading |
41.7 N @ 200 km/h |
|
Polarization |
Dual Linear |
|
Cross-Pol Isolation |
22 dB Min. |
|
ETSI Specification |
EN 302 326 DN2 |
|
Mounting |
Universal Pole Mount, Rocket Bracket, and Weatherproof RF Jumpers Included |
