Product Details:
|
| Brand Name: | UBNT | Model Number: | AM-5AC22-45 |
|---|---|---|---|
| Dimensions: | 750 X 215 X 94 Mm | Frequency: | 5.15 - 5.85 GHz |
| Weight: | 6 Kg | Gain: | 22 DBi |
| Warranty: | 1 Year | Max. VSWR: | 1.5:1 |
| High Light: | Dual Polarization ubiquiti sector antenna,45 Degree ubiquiti sector antenna,AM-5AC22-45 |
||

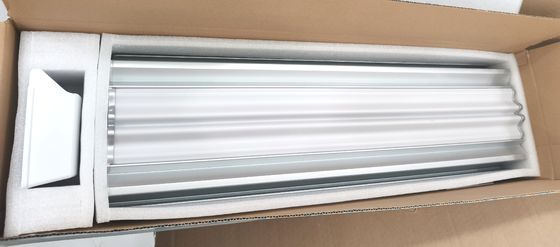

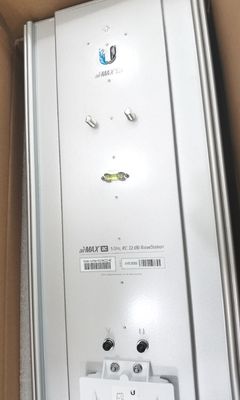

UBNT AM-5AC22-45 802.11ac 22dBi gain 45 degree dual polarization sector antenna
Descriptions of AM-5AC22-45
Rocket®5ac PtMP, model R5AC-PTMP (sold separately)
12 mm and 13 mm wrenches
Shielded Category 5 (or above) cabling should be used for all wired Ethernet connections and should be grounded through the AC ground of the PoE.
We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti.
Specifications of AM-5AC22-45
|
Features / filters |
|
|
Antenna frequency |
5 GHz |
|
Antenna type |
Sectoral |
|
Energy profit |
21dBi - 30dBi |
|
Electric deviation |
2° |
|
Cross-polarization isolation |
>30 dB |
|
Compatible with the brand |
Ubiquiti |
|
Polarization |
Double linear |
|
Vertical beam width |
45° |
|
Horizontal beam width |
45° |
|
Connector type |
2x RP-SMA |
|
VSWR |
1.5:1 |
|
Application |
Outside |
|
Basic technical parameters |
|
|
Dimensions |
750 × 215 × 94 mm |
|
Weight |
6 kg |
|
Frequency |
5,15 - 5,85 GHz |
|
Reinforcement |
22 dBi |
|
HPOL beamwidth |
45° (6 dB) |
|
VPOL beam width |
45° (6 dB) |
|
Beam height |
4° |
|
Electric downward tilt |
2° |
|
Maximum VSWR |
1.5:1 |
|
Survival wind |
200 km/h |
|
Wind load |
347 N @ 200 km/h |
|
Polarization |
Double linear |
|
Cross isolation |
30 dB Minimum |
|
Specyfikacja ETSI |
EN 302 326 DN2 |
|
Assembly |

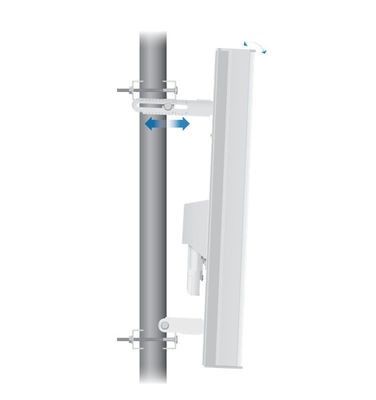

Universal pole mount, Rocket mount, weatherproof RF cables |
