Product Details:
|
| Type: | GPON ONT | Product Name: | HG8245Q |
|---|---|---|---|
| Power Adapter Input: | 100–240 V AC, 50–60 Hz | Maximum Power Consumption: | 26 W |
| Ports: | 2POTS+4GE+2.4G/5G Wi-Fi +2USB | Dimensions (length X Width X Height): | 70 Mm X 285 Mm X 174 Mm |
| Weight: | About 1000 G | Warranty: | 1 Year |
| High Light: | HG8245Q GPON ONT,WiFi ONU GPON ONT,HuaWei HG8245Q |
||
HG8245Q GPON ONT WiFi Gigabit ONU HuaWei Optical Transition Cat
HuaWei Optical Transition Cat HG8245Q GPON ONT 4 GE + 2 POTS + 2 USB + 2 WiFi Gigabit ONU

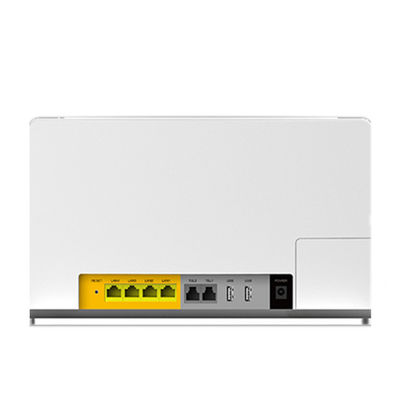

Overview of HG8245Q
The HW EchoLife HG8245Q is a routing-type ONT in the Huawei all-optical access solution. It uses the GPON technology to implement ultra-broadband access for users.
It provides 4 GE+2 POTS+2 USB+2 WiFi(4 GE ports, 2 POTS ports, 2 USB port, 1 2.4G WiFi port and 1 5G WiFi port). The high forwarding performance ensures the user experience of voice, data and HD video services, and provides customers with an ideal all-optical access solution and future-oriented service support capability.
Interface Parameters of HG8245Q
| GPON Port | WLAN | Ethernet Port |
|
|
|
| USB Port | POTS Port | |
|
|
Specification of HG8245Q
| Dimensions(DxWxH) | 70 mm x 285 mm x 174 mm | System power supply |
11–14 V DC, 3 A
|
| Weight | about 1000 g | Static power consumption | 6.5 W |
| Operating temperature | 0°C to +40°C | Maximum power consumption | 26 W |
| Operating humidity | 5% RH to 95% RH (non-condensing) | Ports |
2POTS+4GE+2.4G/5G Wi-Fi
|
| Power adapter input | 100–240 V AC, 50–60 Hz | ||
| QoS | • Ethernet port rate limitation • 802.1p priority • SP/WRR/SP+WRR • Broadcast packet rate limitation |
||
| Security | • SPI firewall • Filtering based on MAC/IP/URL addresses |
||
| Layer 3 Features | • PPPoE/Static IP/DHCP • NAT/NAPT • Port forwarding • ALG, UPnP • DDNS/DNS server/DNS client • IPv6/IPv4 dual stack, and DS-Lite • Static/Default routes • Multiple services on one WAN port |
||
| Multicast | • IGMP v2/v3 proxy(V300R015C00)/snooping • MLD v1/v2 snooping • Multicast services through Wi-Fi |
||
| Smart service | • Smart Wi-Fi sharing: Portal/802.1x authentication (V300R015C10) SoftGRE-based sharing (V300R015C10) • Association of one account with two POTS ports |
||
Our advantage
Delivery as You Like:
All products will be packed in carton , so the product can get effective protection to avoid damage. We ship via DHL/UPS/FedEx/TNT/etc. Yow can get your packages in about 3-7 days all over the world. For big orders, we will arrange Air cargo or sea for your shipment, so it will be much cheaper.
on.
With many years of export experience, excellent quality, advanced services and competitive prices, it has won the trust and support of many customers. If you have any questions, please feel free to contact us, we will provide you with quality service.
