Product Details:
|
Product Name: | PSR150-A1-B | Output Type: | Multiple |
---|---|---|---|
Output Voltage: | 12V | Output Current: | 12.5A |
Output Power: | 150W | Input Voltage: | 100-240VAC |
Output Frequency: | 50/60Hz | Warranty: | 1 Year |
High Light: | 150W DC AC Power Module,12.5A DC AC Power Module,H3C PSR150-A1-B |
MSR Series Router 12.5A 150W DC AC Power Module H3C PSR150-A1-B

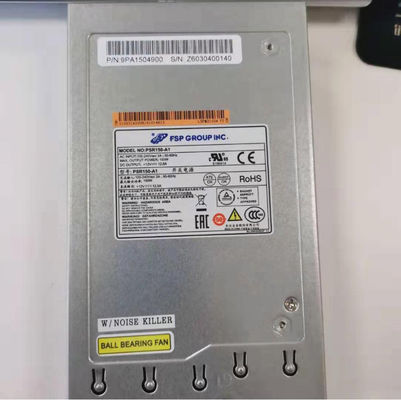

H3C PSR150-A1-B MSR series router 150W AC power supply module
Description of PSR150-A1-B
PSR150-A1 is an AC power module with AC input and DC output; PSR150-D1
It is a DC power supply module with DC input and DC output. AC power supply module and DC power supplyThe modules can convert the input voltage into the 12V voltage required by the powered device, and itsThe maximum output power can reach 150W.
The PSR150-A1 is an AC-input and DC-output power module. The PSR150-D1 is a DC-input and DC-output power module. Both power modules provide an output voltage of 12 V and a maximum output of 150W.
Features of PSR150-A1-B
• Provide output overvoltage, short-circuit, overcurrent, and overtemperature protections. See auto-recovery features of the power modules.
• Two power modules can be connected in parallel to achieve 1+1 redundancy and load sharing.
• Hot swappable. When you hot swap a power module, make sure the device can operate correctly with the remaining power modules.
Protection function |
Protection state |
Support for auto-recovery |
Output overvoltage protection |
The power module is latched and does not supply power. |
No |
Short-circuit protection |
The power module does not supply power. |
Automatically restores power supply after the short circuit condition is resolved |
Overcurrent protection |
The power module does not supply power. |
Automatically restores power supply after the output current decreases to an acceptable range |
Overtemperature protection |
The power module does not supply power. |
Automatically restores power supply after the temperature decreases to an acceptable range |
Specification of PSR150-A1-B
Item | Specifications |
Input rated voltage range | 100V~240V AC;50/60Hz 240V DC |
Maximum input voltage range | 90V~264V AC;47/63Hz 192V - 290V DC |
Output voltage | 12V |
Maximum output current | 12.5A |
Maximum output power | 150W |
Dimensions (W×H×D) | 101.6×41.1×177mm |
Working temperature | -5°C~55°C |
Storage temperature | -40°C~70°C |
