ADPE GPON Optical Line Terminal HuaWei MA5600T H80BADPE 64 Channel Voice Board

ADPE GPON Optical Line Terminal HuaWei MA5600T H80BADPE 64 Channel Voice Board
ADPE GPON Optical Line Terminal HuaWei MA5600T H80BADPE 64 Channel Voice Board
ADPE GPON Optical Line Terminal HuaWei MA5600T H80BADPE 64 Channel Voice Board ADPE GPON Optical Line Terminal HuaWei MA5600T H80BADPE 64 Channel Voice Board ADPE GPON Optical Line Terminal HuaWei MA5600T H80BADPE 64 Channel Voice Board ADPE GPON Optical Line Terminal HuaWei MA5600T H80BADPE 64 Channel Voice Board

Large Image :  ADPE GPON Optical Line Terminal HuaWei MA5600T H80BADPE 64 Channel Voice Board

Product Details:
Place of Origin: China, Guangdong
Brand Name: HuaWei
Model Number: H80BADPE
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: new in the box .
Delivery Time: 5-8days
Payment Terms: T/T, Western Union
Contact Now

ADPE GPON Optical Line Terminal HuaWei MA5600T H80BADPE 64 Channel Voice Board

Description
Model Number: H80BADPE Brand: HuaWei
Board Port: 64 Port Certificates: ISO:9000,Rohs
Brand Name:: MA5600T Network Use: FTTX
Typic Power(W): 51W Warranty: 1 Year
High Light:

ADPE GPON Optical Line Terminal

,

HuaWei MA5600T

,

H80BADPE

ADPE GPON Optical Line Terminal HuaWei MA5600T H80BADPE 64 Channel Voice Board

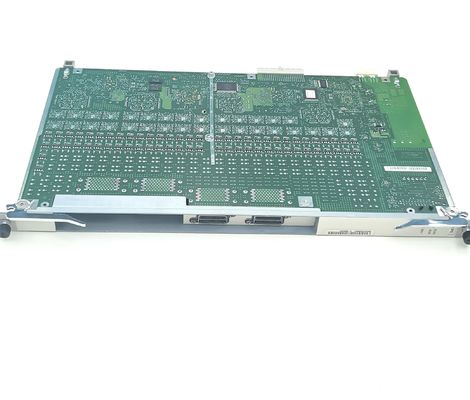

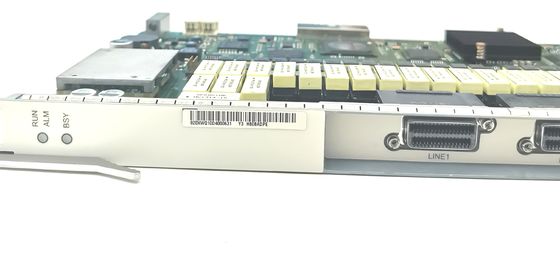

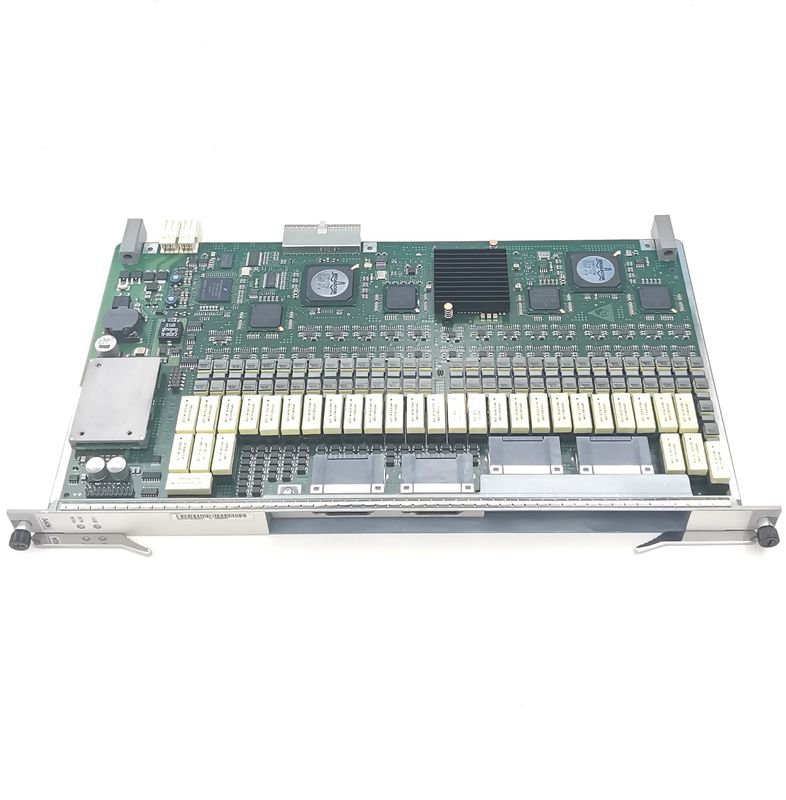

HuaWei MA5600T service board H80BADPE 64-channel voice board ADPE





Description

The H80BADPE board is an 64-port ADSL2+ over POTS Service Board. It works with the ADSL terminal unit-remote end (ATU-R) through the ADSL2+ port to access 64 channels of ADSL2+ service. work for MA5600, MA5680T

The H80BADPE board is an 64-port ADSL2+ over POTS Service Board. It works with the ADSL terminal unit-remote end (ATU-R) through the ADSL2+ port to access 64 channels of ADSL2+ service.

Feature and Specifications

Please refer to "64-Channel ADSL2+ Service Board Comparison".



Specifications

Specification
MA5600T
MA5603T
MA5608T
Dimensions (W x D x H)
442mm×275.8mm×441.7mm
442mm×283.2mm×263.9mm
442 mm x 244.5 mm x 88.1 mm
Height
10U
6U
2U
Power
–48V DC power input
–48V DC power input
–48V DC power input
Or
110/220V AC power input
Board configuration
2 slots for control boards
14 slots for service boards
1 slot for the universal interface board
2 slots for upstream interface boards
2 slots for power interface boards.
2 slots for control boards
6 slots for service boards
1 slot for the universal interface board
2 slots for upstream interface boards
2 slots for power interface boards.
2 slots for control boards
2 slots for service boards
1 slots for the power interface board.
Maximum number of GPON ports in a subrack
224
96
32
Maximum number of ADSL2+ ports in a subrack
896
384
128
Maximum number of VDSL2 ports in a subrack
896
384
128
Maximum number of POTS ports in a subrack
896
384
128
Maximum number of upstream ports (GE ports in the GIU slot) in a subrack
8
8


Maximum number of upstream ports (10GE ports in the GIU slot) in a subrack
4
4


Board

Power Consumption

Maximum Frame Size

H808ADIF

* Static: 12 W* Maximum: 49.2 W

1800 bytes

H808ADLE

* Static: 12.4 W* Maximum: 56.8 W

1800 bytes

H805ADLF

* Static: 15 W* Maximum: 46 W

1800 bytes

H808ADLF

* Static: 12 W* Maximum: 50.4 W

1800 bytes

H802ADPD

* Static: 25 W* Maximum: 82.5 W

1800 bytes

H805ADPD

* Static: 12 W* Maximum: 66 W

1800 bytes

H807ADPD

* Static: 20 W* Maximum: 41 W

1800 bytes

H802ADQD

* Static: 25 W* Maximum: 82.5 W

1800 bytes

H802ADKM

* Static: 28 W* Maximum: 81 W

1800 bytes

H80BADPE

* Static: 12.4 W* Maximum: 56.8 W

1800 bytes

H807ADPE

* Static: 20 W* Maximum: 41 W

1800 bytes

H808ADPM

* Static: 15 W* Maximum: 62 W

1800 bytes

H807ADPM

* Static: 22 W* Maximum: 43 W

1800 bytes

H802P2CA

* Static: 9 W* Maximum: 10 W

2004 bytes

ADPE GPON Optical Line Terminal HuaWei MA5600T H80BADPE 64 Channel Voice Board 0ADPE GPON Optical Line Terminal HuaWei MA5600T H80BADPE 64 Channel Voice Board 1



We promise:

1. Quality: All products are original and brand new from HuaWei.

2. Timely reply: Your inquiry about our products or prices will be replied within 24 hours.

3. OEM&ODM: We can help you design and integrate your good ideas into products.

4. Warranty: 1 year warranty.

5. Technical support: on-site technical support, remote maintenance, free phone and e-mail technical support.

6. Training service support: Free installation and commissioning technical support training services are provided.



Package:

1. Original carton packaging.

2. According to your requirements.



Dlivery:

1. If there is inventory, it will be shipped within 1-3 days. For products with large quantities that need to be ordered, the goods will be shipped within 5-8 days.

2. Shipment: sea and air (DHL / UPS / TNT / Fedex / EMS)
