Product Details:
|
| Model: | F609 | Ports: | 4GE + 1TEL+USB +WIFI 2.4G |
|---|---|---|---|
| Dimension: | 220 Mm X 34 Mm X 187 Mm | RX Sensitivity: | <-27dBm (1490nm) |
| Power: | 12 V DC | Power Consumption: | 7W |
| Firmware: | English | PPPOE: | Yes |
| High Light: | GPON ONU Optical Terminal,FTTH WiFi Router Modem,Cat WiFi Router Modem |
||
ZTE GPON ONU Optical Terminal ZXHN F609 FTTH 4GE All Gigabit Universal Optical Cat 4GE+1POTS+1USB+WiFi Router Modem
| Model | Configuration | Dimension/pcs | ||||
| LAN | Telephone | Wifi | PPPOE | Firmware | ||
| F609 | 4GE | 1pots | 2.4G | yes | English | 176*138.5*28mm/0.5kgs |
ZTE ZXHN F609 FTTH is a GPON Optical Network Terminal designed for FTTH scenario. It provides subscribers rich, colourful, individualized, convenient and comfortable triple-play services including voice, video (IPTV/CATV) and high-speed internet access. it supports desktop mounting, wall mounting and network cabinet mounting.
ZTE F609 FTTH is designed for FTTH scenarios. With its home gateway technology, ZTE F609 FTTH represents a new-generation home network center that meets the full-service needs of high-end users by delivering high-speed Internet,
high-quality voice and video (IPTV), reliable wireless access and convenient network storage services.
ZTE ZXHN F609 FTTH complies with the ITU-T G.984 standard, provides 2.488 Gbps downlink and 1.244 Gbps uplink at the network side, and provides four GE ports, two POTS ports, one 802.11b/g/n(2*2 @2.4G Hz) Wi-Fi interface, one USB interface, and one RF interface at the user side. Home users can easily access voice services, video services, CATV service and many other kinds of high-speed broadband services by the ZXHN F668’s rich interfaces.
| Brand | ZTE |
| Model | ZTE ZXHN F609 |
| User Ports | 4GE + 1TEL+USB +WIFI 2.4G |
| Application | FTTH FTTB FTTX Network |
| GPON Interface | 1x, SC/APC, 2,448 Gbit/s downstream 1,244 Gbit/s upstream |
| Operation Modes | Bridge, Router, AP |
| Wavelength for downstream | 1480 nm – 1500 nm |
| Wavelength for upstream | 1290 nm – 1330 nm |
| Sensitivity | -28 dBm |
| Power Consumption | 7 W |
| Dimensions | 220 mm x 34 mm x 187 mm |
| Working temperature and humidity | 0°C – 40°C, 5% – 95% |
| Power | 12 V DC |
| GPON features | 8x T-CONT, 32 GEM portů |

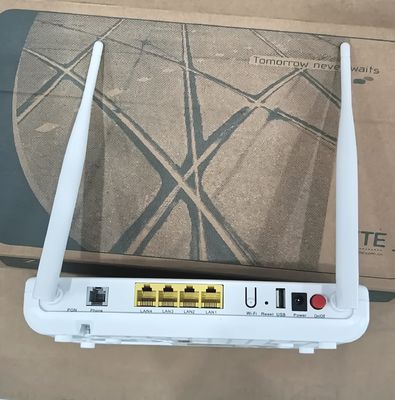

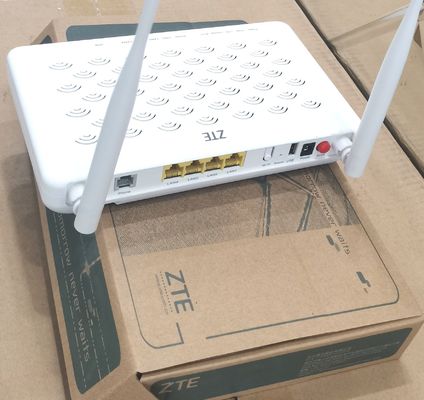

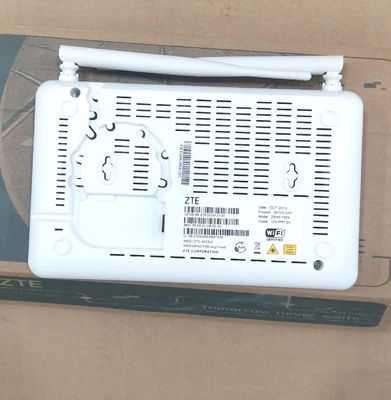

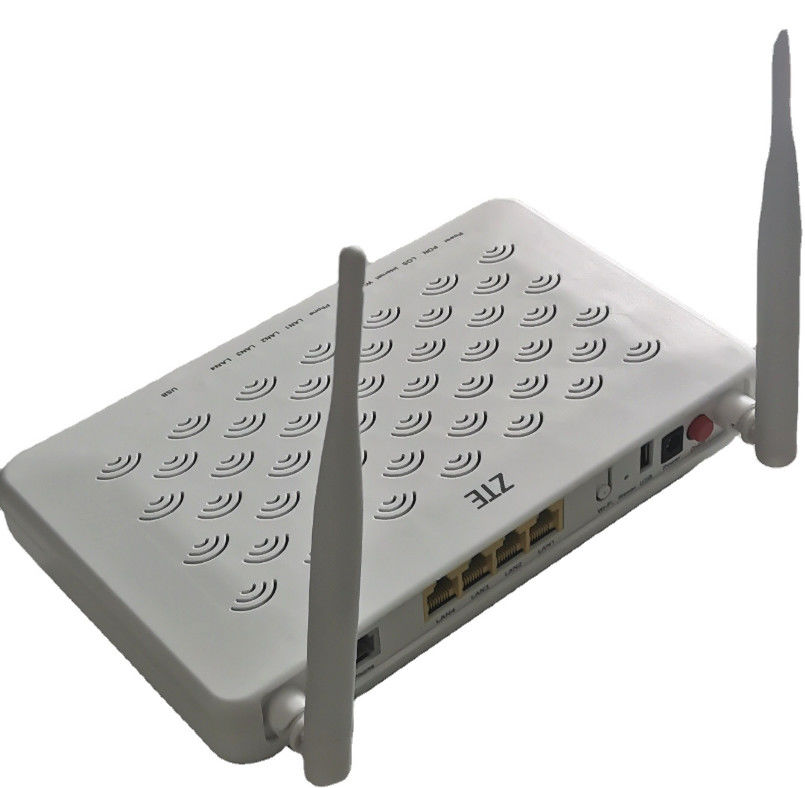

ZTE ZXHN F609 FTTH Product display
ZTE ZXHN F609 FTTH Product and More Related Models
ZTE EPON ONT
F401 EPON ONT, 1 LAN English Firmware
F411 EPON ONT, 1 L AN+ 1*VOICE English Firmware SIP
F412 EPON ONT, 2 LAN+VOICE English Firmware SIPF
F420 EPON ONT, 4 LAN+ 2VOICE English Firmware SIP
F460 EPON ONT, 4 L AN+ 2VOICE+WIFI English Firmware SIP
F427 EPON ONT, 4 L AN+ 2VOICE +WlFI English Firmware SIPZTE GPON ONT
ZTE GPON ONT
F601 GPON ONT, 1 LAN English Firmware
F612 GPON ONT, 2 L AN+VOICE English Firmware SIP
F600 GPON ONT, 4 L AN English Firmware
F620 GPON ONT, 4 L AN+2VOICE English Firmware SIP
F620G GPON ONT, 4 GE+2VOICE English Firmware SIP
F660 GPON ONT, 4 L AN+ 2VOICE+WlFI+USB English Firmware SIP
F660 GPON ONT, 4 GE+2VOlCE+WlFI+USB English Firmware SIP
F660 GPON ONT, 1 GE+3FE+2VOlCE+WlFI+USB English Firmware SIP
F625 GPON ONT, 4 LAN+2VOICE+RF(CATV) English Firmware SIP
F668 GPON ONT, 4 L AN+2VOICE+RF(CATV) +WlFI English Firmware SIP
After-Sales Service
1. We can provide detail documents and remote help for device installation and configuration.
2. Warranty: 1 year. ( After the quality guarantee period began to charge appropriate maintenance service fee.)
3. Our company promises goods enjoy full return due to quality problem since goods delivered within 7 days or 15 days , returned goods must keep original state.
