Product Details:
|
| Product Name: | GERM4815T | Output Voltage: | 53.5V |
|---|---|---|---|
| Output Frequen: | 45-65Hz | Input Voltage: | 90-264V |
| Output Current: | 15A | Altitude: | ≤3000m |
| Power Factor: | ≥0.98 | Warranty: | 1 Year |
| High Light: | germ4815t,53.5V emerson module,15A emerson module |
||

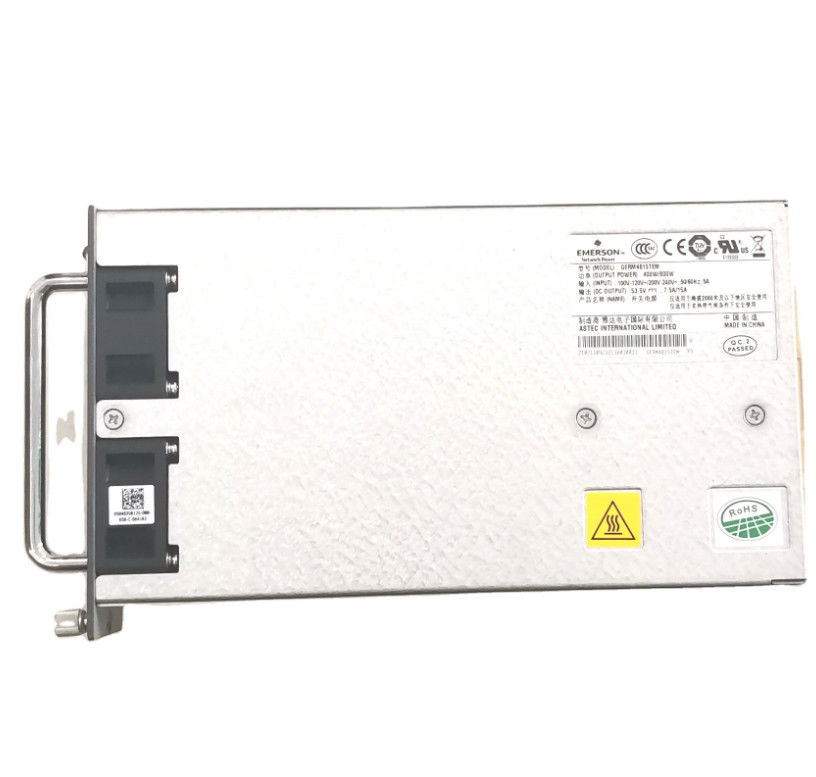

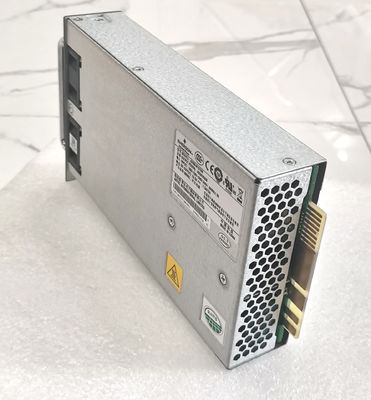

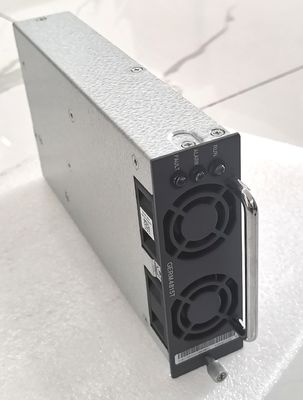

GERM4815T emerson module Communication Switching Power Supply
Emerson GERM4815T communication switching power supply rectifier module 53.5V/15A direct communication GERM4815TEM
Technical index
| Use environment |
Working environment temperature: -5~+45℃; Storage temperature: -40 ~+70℃ (test temperature); Relative humidity: <90% (40±5℃); Altitude: ≤3000m. |
| Input |
AC input range: the working range is 90~264VAC. Starting voltage: 165VAC. Input current waveform distortion: ≤3%. Start-up surge current: ≤10A. Power factor: ≥0.98. |
| Output |
Rated output voltage: 48V. DC output voltage regulation range: 43~57.6V. Rated output current: 25A (AC input voltage working range is 180~264VAC) Output current: 26.25A (AC input voltage working range is 180~264VAC) Stabilization accuracy: no more than ±0.6% of the DC output voltage setting value. Voltage adjustment rate: no more than ±0.1% of the DC output voltage setting value. C urrent adjustment rate: no more than ±0.5% of the DC output voltage setting value. Current sharing error: When the output current of the rectifier is within the range of 50% to 100% of the rated current, the unbalance of the load current is equal to or less than 5% of the rated current value. Efficiency: ≥85.0%. |
| Audible noise | ≤55dB. |
.
