Product Details:
|
| Brand: | HuaWei | Model: | Metro 100 |
|---|---|---|---|
| Interfaces: | RJ-45 | Voltage Range: | 90V To 264V |
| Dimensions: | 436mm (width) X 200mm (depth) X 42mm (height) | Power: | 15W |
| Certification: | FCC, CCC, Ce | Warranty: | 1 Year |
| High Light: | huawei optix metro 100,ptix metro GPON Optical Line Terminal,264V GPON Optical Line Terminal |
||

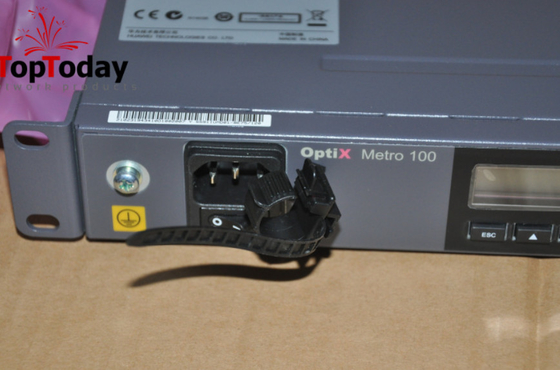

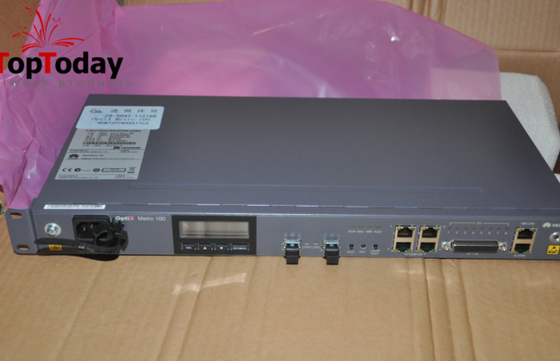

huawei optix metro 100 GPON Optical Line Terminal HuaWei Transmission Equipment
HuaWei transmission equipment Optix Metro 100 AC optical transmitter 220V/AC 8-way RJ45 ethernet Interface Board
HuaWei Metro 100 transmission equipment overviews
HuaWei metro100 transmission equipment is used at the introduction layer of the transmission network, providing STM-1 optical interfaces, and together with the access layer equipment, it builds the entire transmission access layer equipment group, perfecting the optical transmission product system of HW Technologies Co., Ltd. OptiX Metro 100 can provide E1, 10M/100M and 1000M Ethernet service access.
The HuaWei metro100 transmission equipment adopts a box design, with a box height of 1U, and the box size: 436mm (width) x 200mm (depth) x 42mm (height). Except for the power supply module, all the functional units of the device are integrated on a circuit board.
HuaeiW metro100 transmission equipment has low power consumption, about 15W, can dissipate heat naturally, without fans, and no noise. When the OptiX Metro 100 is equipped with a Gigabit Ethernet processing module, the power consumption is about 20W.
HuaWei Optix Metro100 Features
| Supports a variety of E1 business interfaces | Supports three physical interfaces: RJ-45 (120 s), BNC (75o), and DB15 (X.21). |
| Supports three physical interfaces: RJ-45 (120 s), BNC (75o), and DB15 (X.21). | Supports Radius security control, the user's server for the unified management of all accounts and passwords of each network element. Any user must be authenticated to log on to the network, so network security is high. |
| Supports device stacking | The Metro100 supports the stacking of up to 1 plus 3 devices, i.e. 16 E1 services connected to the same optical path. |
| The default configuration is supported | Supports device configuration and maintenance through network management and Web LCT, and one-click recovery to the default configuration. |
| Multiple installation methods are supported |
Cabinet installation (19-inch cabinet/ETSI600mm/ETSI300mm open cabinet). Wall mounting. Desktop installation. Users can choose the appropriate installation method based on the situation on site. When the cabinet is installed, there must be more than 1U of cooling space on and below the chassis and high-temperature airflow from other devices must be imported into the chassis. |
| Supports a variety of power inputs |
The Metro100 provides the following power access: 110V/220V AC power supply access, voltage range: 90V to 264V, frequency range: 47Hz to 63Hz. -48V/-60V DC power supply access, voltage range: -38.4V to -72V. Supports simultaneous input and backup of ALL-way AC and DC power supplies. The AC power supply of the equipment has a switch, controls the switch on and off of the AC power supply, and the DC power supply has no switch. When both AC and DC power supplies are invalid, the device will report an alarm VOLT_LOS. Description: The device only supports the VOLT_LOS of the power-down alarm in HWECC mode. |
| Low power consumption, support for natural cooling, high integration | Metro100 devices are highly integrated and consume a maximum power consumption of only 16W. Supports natural heat dissipation and low noise. All of these features save operators operating costs. |
FAQ
Q: How is the quality?
A: 100% original new packaging. We will test each item before shipment to ensure Each item is of high quality.
Q: How to deal with any low-quality goods?
A: For any products of poor quality, we will charge a postage fee, and the goods can be returned Within the guaranteed time.
Q: What is the warranty of your product?
A: One year.
Q: What are the payment terms?
A: T/T or Paypal or Western Union or Alibaba Trade Assurance orders are available
Q: How about the packaging?
A: Original packaging. The outer layer also has two layers of foam protection, The outermost layer uses a black plastic protective film to avoid product leakage
Q: What is the delivery time?
A: The goods in stock with a small quantity will be shipped within 2 days after payment, and products with a large quantity are not in stock. 5-8 days. Thank you for your understanding.
