Product Details:
|
Fiber Type: | GPON OLT Board | Name: | GPBD GPBH |
---|---|---|---|
Ports: | 8 Ports | Selling Units: | Single Item |
Single Package Size : | 50X25X10 Cm | Single Gross Weight: | 3.000 Kg |
Package Type: | NEW IN THE HUAWEI BOX | Warranty: | Year |
High Light: | MA5680T Interface Board,GPBD Interface Board,GPON OLT Business Board |

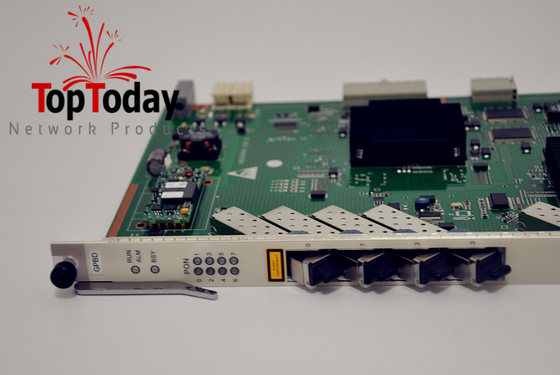

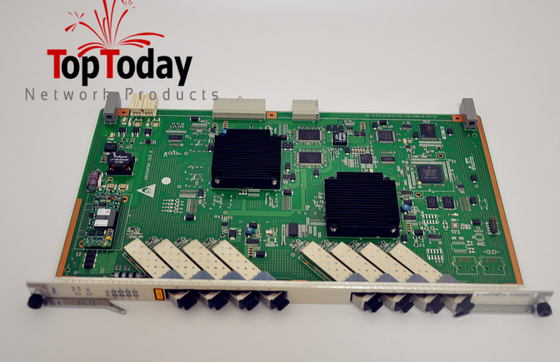

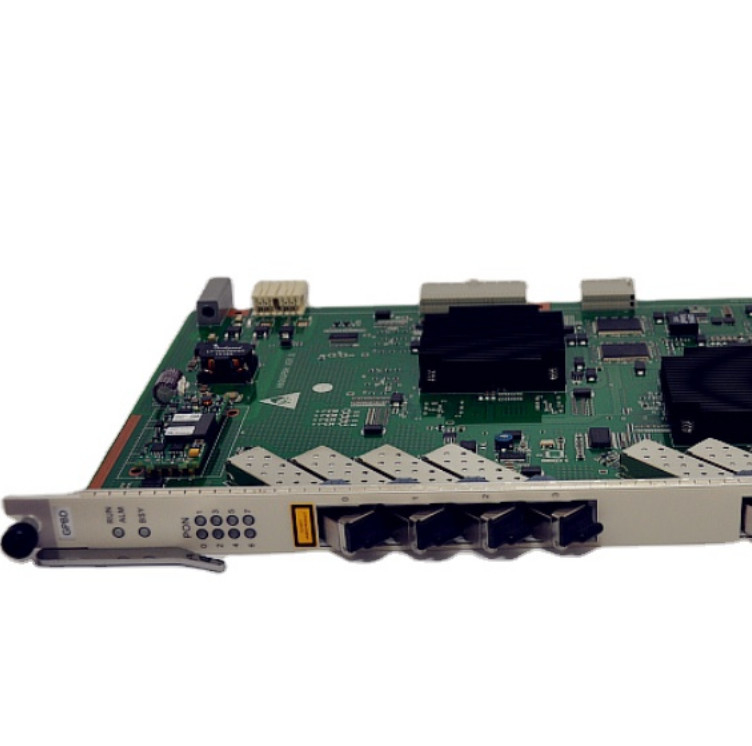

HuaWei MA5608T Interface Board GPBD GPBH 8 Ports GPON OLT Business Board
HuaWei MA5608T MA5680T Interface Board GPBD GPBH 8 ports GPON OLT business board fully equipped with 8-port module
Descriptions
HuaWei GPBD board is the access board for PON service in HW OLT equipment MA5680T. HW GPBD is used as OLT board in PON system for optical access equipment, and is used in conjunction with terminal ONU equipment. HW GPBD can provide 8 GPON access services to meet the networking needs of FTTH fiber to the home, FTTB fiber to the building, micro base station transmission, IP dedicated line interconnection, and bandwidth wholesale. (HW GPBD is a GPON service board with 8 ports used in SmartAX MA5680T/5683T equipment, so the model is GPBD; HW GPBD provides GPON access function, with 8 PON ports, and each PON port can use a splitter to split light. Up to one PON port can split 64 optical signals, and 8 PON ports can be divided into 512 channels in total.The GPON (Gigabit Passive Optical Network) access board cooperates with the terminal ONT (Optical Network Terminal) equipment to realize the OLT function of the GPON system.Capacity: Each PON port provides 64 ONU access, and each GPON service board can provide 256-512 ONU access.
Provide interface:
Each GPBC panel provides 4 GPON interfaces
Each GPBD panel provides 8 GPON interfaces
Specifications
Environmental parameters |
Working environment temperature -30℃~+60℃ Working environment humidity 5%RH~95%RH Air pressure environment 54kPa~106kPa |
Power parameters |
DC power supply Rated voltage -48V DC Operating voltage range DC power supply: -72V ~ -35.4V DC (when -48V DC power supply) |
Dimension |
Equipment size (without hanging ears) 442mm×283.2mm×263.9mm 770W 7kg Equipment size (with hanging ear 1) 482.6mm×283.2mm×263.9mm Equipment size (with hanging ear 2) 535mm×283.2mm×263.9mm |
