Product Details:
|
| Brand: | HuaWei | Model: | SS63SD401 |
|---|---|---|---|
| Weight: | 0.77kg | Power Consumption: | 21W |
| Dimensions: | 340 (H) X 32 (W) X 218.5 (D) | Maximum Transmission Distance: | 70km |
| Operating Wavelength: | 1550nm | Warranty: | 1 Year |
| High Light: | SS63SD401,HuaWei Metro 3000,1550nm GPON Optical Line Terminal |
||

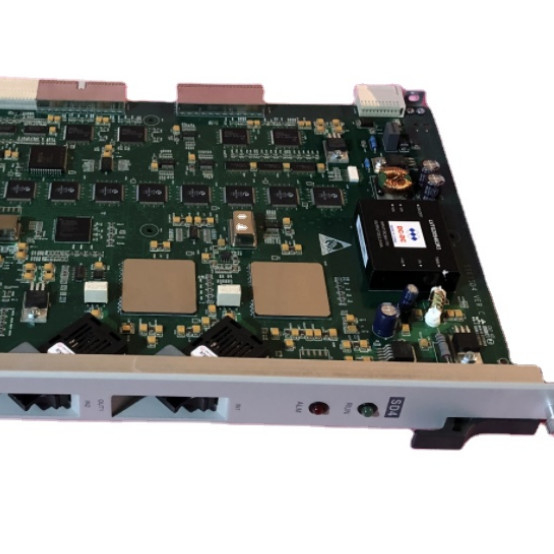

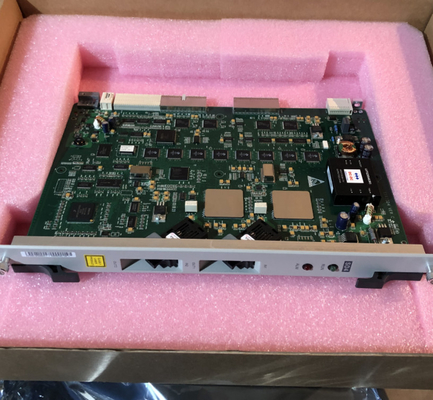

HuaWei Metro 3000 GPON Optical Line Terminal Interface Board SD4
HuaWei Metro3000 2500+ SS63SD401 (S4.1 SC) dual STM-4 synchronous line optical interface board SD4
Overviews
SS63SD4(L-4.2,SC) is a 2-port STM-4 optical interface board, can be used on HW Metro3000. SS63SD4(L-4.2,SC) part number is 03037723, model name is SS63SD404. SS63SD4(L-4.2,SC) comes with 2 units L-4.2 SFP module, transmission distance is 70km. SFP module is swappable to perform different transmission distance.
* 2xSTM-4 Optical Interface Board(L-4.2,SC)
* Apply to HW Metro 3000 to transmit/receive 2xSTM-4 optical signals, at Max distance 70km.
* Supports VC-4-4C concatenated service.
Specifications
|
Valid Slot |
||
|
The SS63SD4(L-4.2,SC) can be installed in slot IU4–IU9 in the Metro 3000 subrack. |
||
|
Feature Code |
||
|
The number code that follows the board name in the bar code is the feature code of the board. The feature code of the SS63SD4(L-4.2,SC) indicates the type of optical interface. |
||
|
Board |
Feature Code |
Type of Optical Interface |
|
SS63SD404 |
04 |
L-4.2 |
|
Optical Interface Parameter |
||
|
Nominal bit rate |
622.08 Mbit/s |
|
|
Line code pattern |
NRZ |
|
|
Application code |
L-4.2 |
|
|
Maximum transmission distance(km) |
70 |
|
|
Operating wavelength(nm) |
1550 |
|
|
Launched optical power range (dBm) |
–3 to 2 |
|
|
Receiver sensitivity (dBm) |
-28 |
|
|
Least Overload (dBm) |
-8 |
|
|
Power consumption(W) |
21 |
|
|
Mechanical Specifications |
||
|
Dimensions (mm) |
340 (H) x 32 (W) x 218.5 (D) |
|
|
Weight (kg) |
0.77 |
|
