Product Details:
|
| Type: | GPON ONU | Product Name: | F600 F600W |
|---|---|---|---|
| Port: | 1GE+3FE | Power Adapter Input: | 100–240 V AC, 50–60Hz; |
| Adapter Output: | 12 V DC, 1 A | Dimensions (length X Width X Height): | 180 Mm X 127mm X 38 Mm |
| Average Power Consumption: | 11 W | Weight: | About 600g (including The Power Adapter) |
| High Light: | ZTE FTTH GPON ONT ONU,F600W GPON ONT ONU,F600W gpon epon modem |
||

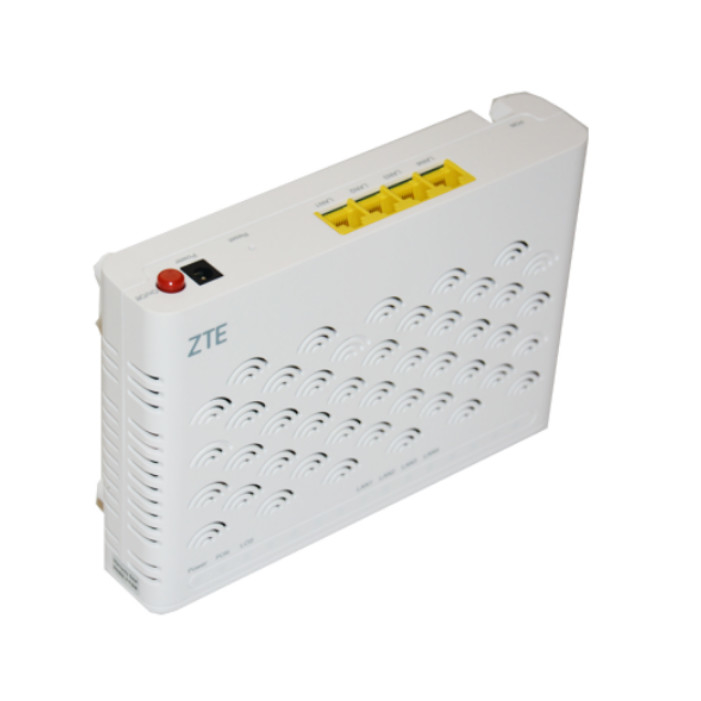

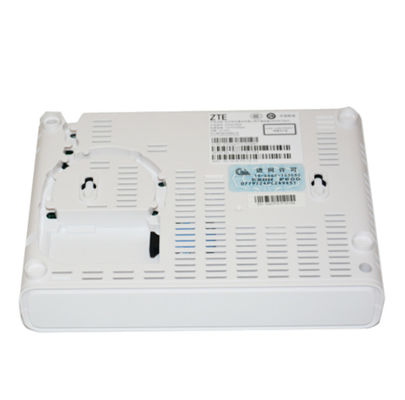

ZTE FTTH GPON ONT ONU F600 F600W 1GE 3FE Gigabit Universal Edition
ZTE FTTH GPON ONU F600 F600W 1GE+3FE Gigabit Universal Edition 4 Ethernet Port Optical Cat
1. Product description of the F600 v5.0
The F600W is an indoor optical network unit(ONu) in ZTE FTTH solution. By using the GPON technology, ultra-broadband access is provided for home and SOHO users. The F600W provides two POTS ports,four GE/FE auto-adapting Ethernet ports and one CATV port. The F600W features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services.
2. Product parameter of the F600 v5.0:
*Dimensions(W x D x H):180 mm x 127mm x 38 mm
*Port:4FE
*Average power consumption:11 W
*Operating environment:Temperature: -5℃~45℃;
*Humidity: 5%–95%, non-condensing
*Power supply:Adapter input: 100–240 V AC, 50–60Hz;
*Adapter output: 12 V DC, 1 A
*Weight:About 600g (including the power adapter)
3. Product feature and application of the F600 v5.0:
* GPON Interface
Optical port: 1 x GPON interface
Transmission Distance: 0 ~ 20km
Transmission rate: 2.488Gbps downstream; 1.244Gbps upstream
* User Network Interface
4 x 10/100Base-T; Half/full duplex; Auto MDI/MDIX; Auto negotiation
1 x WiFi Interface: IEEE 802.11B/G/N @2.4G Hz
1 x USB host interface
4. Product parameter and description of the F600 v5.0
| Item | Parameters | Specification |
|
Interface |
PON Port |
1 GPON optical interface Meet 1000BASE-PX20+ standard Symmetric 1.25Gbps upstream/downstream SC single-mode fiber split ratio: 1:64 Transmission distance 20KM |
|
Ethernet Port(LAN) |
1*GE Auto-negotiation RJ45 ports
Full Duplex / Half-Duplex RJ45, Auto-MDI/MDI-X Transmission Distance 100 Meter |
|
| Power Supply Port | 12V DC input | |
|
Management |
NetworkManagement |
Support IEEE802.3 QAM, ONU can be remotely managed by OLT
Support Remote management through SNMP and Telnet Local management |
| Management Function | Status monitor, Configuration management, Alarm management, Log management | |
|
Environmental |
Shell | Plastic casing |
|
Power |
External 12V 0.5A AC/DC power supply adapter
Power consumption: <3W |
|
|
Dimensions |
78mm(L) x78mm(W) x25mm (H)
0.1kg |
