2000W 48V Eltek Rectifier Module Flatpack2 48/2000 HE 241115.105

2000W 48V Eltek Rectifier Module Flatpack2 48/2000 HE 241115.105
2000W 48V Eltek Rectifier Module Flatpack2 48/2000 HE 241115.105 2000W 48V Eltek Rectifier Module Flatpack2 48/2000 HE 241115.105 2000W 48V Eltek Rectifier Module Flatpack2 48/2000 HE 241115.105

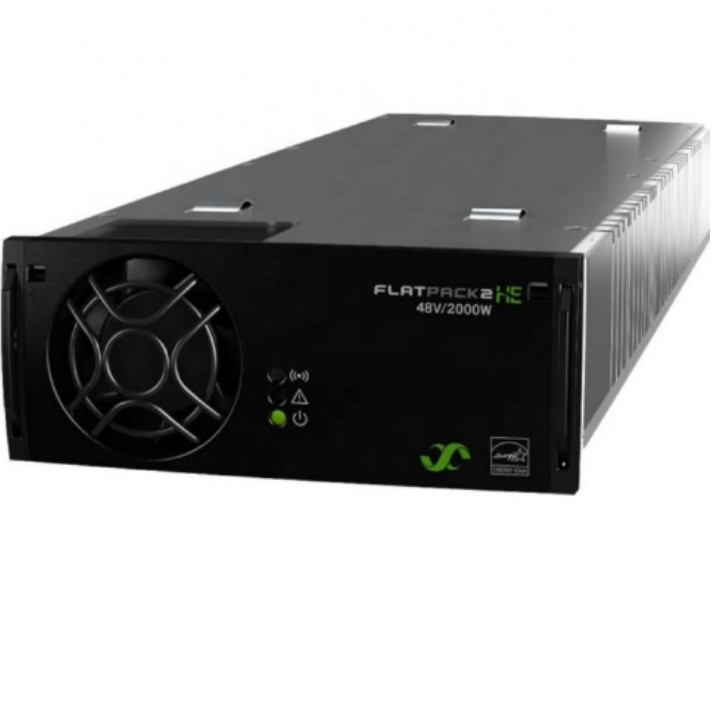

Large Image :  2000W 48V Eltek Rectifier Module Flatpack2 48/2000 HE 241115.105

Product Details:
Place of Origin: Guangdong, China
Brand Name: Eltek
Model Number: Flatpack2 48/2000 HE
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable

2000W 48V Eltek Rectifier Module Flatpack2 48/2000 HE 241115.105

Description
Product Name: Flatpack2 48/2000 HE Output Type: Multiple
Max Power: 2000W Voltage (adjustable Range): 43.5 - 57.6 VDC
Current (maximum): 41.7 ADC Max Voltage: 57.6 VDC
Dimensions: 109 X 41,5 X 327 Mm Weight: 1.95 Kg
High Light:

48V Eltek Rectifier Module

,

2000W Eltek Rectifier Module

,

2000W rectifier diode modules

2000W 48V Eltek Rectifier Module Flatpack2 48/2000 HE 241115.105



Overviews





The combination of innovative design, efficiency and reliability makes the Flatpack2 HE stand out.
Increasing network speed demands flexible and expandable DC power solutions. The Flatpack2 HE rectifiers are your key building blocks for future needs.





The most reliable High Efficieny rectifier in the industry!

With an efficiency up to 96.5%, the losses have been reduced by 50% compared to the current industry standard. In a global perspective, considering the high energy consumption in the telecom industry, this technology breakthrough is not only reducing operational cost for the operators, but it can also have a significant environmental impact.


Main feature

* Power-intensive, up to 33 W/inch3

* high efficiency

* Proven reliability

* Application flexibility 2KW-3MW

* Global compliance

* Patented HE technology

Specifications

Input

Voltage AC (operating range):85 - 300 VAC

Voltage DC (operating range):85 - 275 VDC

DC output

Max Power:2000 W

Voltage (adjustable range):43.5 - 57.6 VDC

Current (maximum):41.7 ADC

Max voltage:57.6 VDC

Other

Cooling:Single fan

Efficiency:96,5 %

Operating temperature:-40 - 75 °C

Dimensions

Dimensions WxHxD (mm):109 x 41,5 x 327 mm

Dimensions WxHxD (inch):4.29 x 1.63 x 12.78

Weight:1.95 kg

Design standards Ingress Protection (IP):20
Certifications

Marine:DNV 2.4 Valid for part no. 241115.105M







2000W 48V Eltek Rectifier Module Flatpack2 48/2000 HE 241115.105 02000W 48V Eltek Rectifier Module Flatpack2 48/2000 HE 241115.105 1



FAQ

Q: Can we get samples?

A: Yes, but we need to charge a sample fee.



Q: Can you offer better prices? And discount?

A: Yes, Powerlink does not have a minimum order quantity, but different quantities have different prices.



Q: Can you take care of the goods?

Answer: If you wish, we will organize and arrange all the deliveries to your office.



Q: How about the payment item?

Answer: T/T, PAYPAL, Western Union.



Q: Delivery time?

A: Sample order, 3-5 working days. For larger orders, 5-8 working days after receiving the deposit.



Q: How long is your warranty period?

Answer: The warranty period is 12 months.

This warranty does not cover damage caused by man-made damage, improper maintenance, improper use, negligence, normal wear and tear and force majeure (such as natural disasters, earthquakes, fires, etc.).
