Product Details:
|
Fiber Type: | ONU | Product Name: | HG8240H |
---|---|---|---|
Ports: | 4GE+2POTS | Weight: | About 500g |
Dimensions: | 176 Mm W * 138.5 Mm D * 28 Mm H | Power Consumption: | Maximum: 3-7.0 W |
Power Supply: | 100-240 VAC, 50-60 Hz | Warranty: | 1 Year |
High Light: | 4GE Fiber Optic Gpon Modem,HG8240H Fiber Optic Gpon Modem,HG8240H |

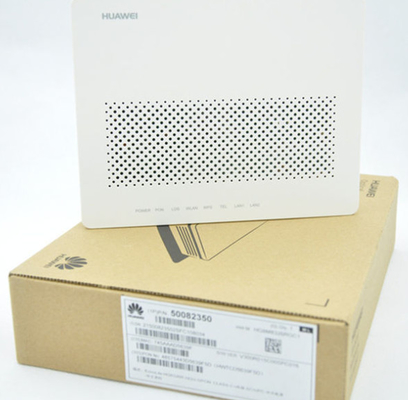

HG8240H 4GE 2POTS Fiber Optic Gpon Modem Gigabit Passive Access
HuaWei optical migration cat HG8240H 4GE+2POTS Gigabit GPON ONT optical cat Gigabit passive access general ONU
HuaWei HG8240H FTTH Product Overview

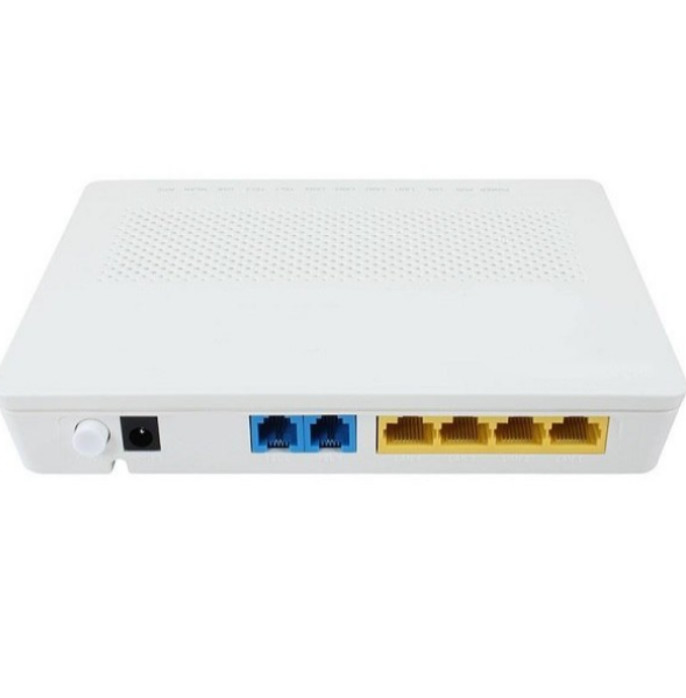

HW HG8240H FTTH is a bridging-type ONT used in the HW all-optical access solution. It implements ultra-broadband access through the GPON technology. It provides 4 FE ports and 2 POTS ports.
The high-performance forwarding capability ensures the service experience of data and HD video services, and provides users with ideal terminal solutions and future-oriented service support capabilities.
From here, we can find the HW EchoLife HG8240H user manuals and user guides, including the product description, configuration guide, and troubleshooting guide.
HuaWei HG8240H FTTH Specifications
Dimensions |
176 mm W × 138.5 mm D × 28 mm H |
Ports |
4GE+2POTS |
Power consumption |
Minimum: 3.0 W |
Maximum: 7.0 W |
|
Operating temperature |
0°C to 40°C / 32°F to 104°F |
Operating humidity |
5% to 95% (non-condensing) |
Power supply |
Adapter input: |
100-240 VAC, 50-60 Hz |
|
System power supply: |
|
11-20 VDC, 1A |
|
Weight |
About 500g |
Installation mode |
Wall mount or desk top |
Certification |
FCC, UL |
HuaWei HG8240H FTTH Features
1. GPON features
* Authentication mode: SN, password, and SN+password
* Mapping traffic to GEM port according to VLAN, 802.1P, VLAN+802.1p, IP Type of Service (IPToS), physical port, physical port+VLAN, physical port+802.1p, or physical port+VLAN+802.1p
2. Multicast features
* 255 multicast groups
* IGMPv2/IGMPv3 snooping
* Multi-multicast VLANs
3. Voice features
* Complies with SIP and H.248
* Supports G.711A/μ, G.729A/B, and G.722 codec
* Supports T.38 and T.30 fax
* Call waiting, call hold, call transfer, call forwarding unconditional (CFU), Call forwarding- busy, and call forwarding-don’t answer
* Multi-homing of POTS ports to different IMSs/softswitches
4. Ethernet features
* Supports two VLAN tags (inner tag used for identifying a specific ISP, and outer tag used for identifying a type of service)
* VLAN filtering, VLAN N:1 aggregation, and VLAN 1:1 switching
* Supports rate limit on an Ethernet port or a traffic stream
FAQ
1. Can we get a lower price? Is there any discount?
Yes, the price is not a problem. Everything can be negotiated based on quantity.
2. Can I get free samples?
Sorry, new customers cannot use V-Solution.
3. We are newbies in this PON field, can you recommend some projects for me?
Yes, of course. We are happy to help you. You just need to provide us with more detailed information about your application.
4. For trade terms, such as payment and delivery date?
* Payment method: We mainly support T/T bank transfer, Visa.
* Price terms: FOB Shenzhen
* Transportation method: sea and air (DHL / UPS / TNT / Fedex / EMS)
* Delivery time: sample order, 3-5 working days.
5. How about the warranty? T
he warranty period is 12 months. However, the warranty does not assume any responsibility if other brands are damaged or updated due to violence.
