Product Details:
|
Type: | Optical Fiber Wifi Router | Wireless Type: | 2.4 G & 5 G Wi-fi 6 |
---|---|---|---|
Model: | K662c | Ports: | 1 Fiber+1GE WAN +3GE LAN+ 2.4g &5G Wi-Fi |
Size (height X Width X Depth): | 35mmx195mmx125mm (excluding Antenna And Footpads) | Weight (excluding Adaptation): | 410g |
Use: | FTTR | Warranty: | 1 Year |
High Light: | AX3000 Edge Router,AX3000 Fiber Connection Router,AX3000 Fiber Optic Cable Router |
HuaWei OptiXstar AX3000 Edge Router Gigabit Dual Frequency Optical Cat

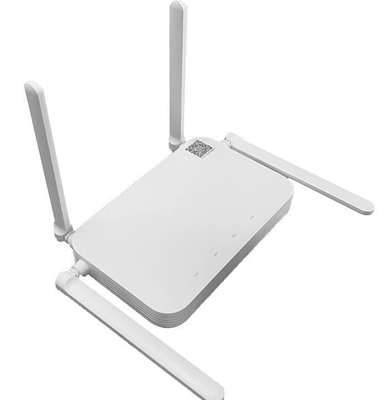

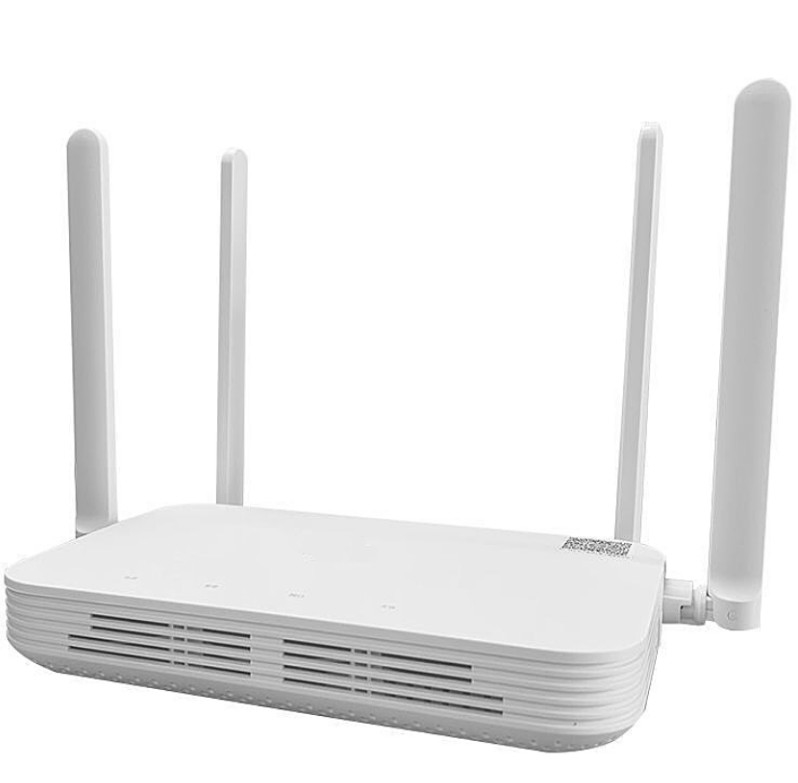

HuaWei OptiXstar K662c AX3000 edge router Gigabit dual-frequency optical cat WIFI6 ONU AP dual-use
Introduction to the product
HuaWei OptiXstar K662c is a dual-band Wi-Fi 6 Edge ROUTER (AX3000Mbps Wi-Fi 6 Edge ONT) that enables ultra-broadband access via Ethernet/Wi-Fi/PON uplink technology, providing users with Gigabit dual-band Wi-Fi 6 and Gigabit ports.
Light |
state |
illustrate |
---|---|---|
power supply | Blue is always bright | The power supply is powered on. |
extinguish | The power supply is off. | |
broadband | Blue is always bright | Connected to the Internet. |
The blue flashes | Connected to the Internet and has data transfer. | |
Red is always bright |
|
|
extinguish |
|
|
The net port | Blue is always bright | Any gigabit port is connected to a network line that is already on the network. |
The blue flashes | There is data transfer on any gigabit port. | |
extinguish | None of the three gigabits is connected to the network cable. | |
wireless | The blue light is always on | The wireless network is turned on. |
The blue light flashes | WPS starts the code-to-code process. | |
extinguish | The wireless network is turned off (on by default). |
K662c |
illustrate |
---|---|
optical fiber | SUPPORTS GPSON OR EPON UPSTREAM ACCESS WITH SC/UPC INTERFACE TYPE. |
The net port |
|
Reset the key |
When K662c is in the start-up state, press this button with a needle and hold it for more than 2 seconds until all lights go out and release. illustrate:
Use the reset button with caution, and there may be an inaccessible condition after the device resets. If you can't access the Internet after the reset, contact your service provider. |
power supply | Connect the power adapter. |
WPS | Start WPS pairing. |
Specifications
Product display
Our service
1. Strict quality control is carried out in every link from raw material procurement, processing, testing to packaging.
2. The waybill or bill of lading will be provided in time for tracking.
3. 12 months warranty.
With many years of export experience, excellent quality, advanced services and competitive prices, it has won the trust and support of many customers. If you have any questions, please feel free to contact us, we will provide you with quality service.
