MA5800 Series GPON EPON HuaWei OLT Board 10G Symmetrical

MA5800 Series GPON EPON HuaWei OLT Board 10G Symmetrical
MA5800 Series GPON EPON HuaWei OLT Board 10G Symmetrical MA5800 Series GPON EPON HuaWei OLT Board 10G Symmetrical MA5800 Series GPON EPON HuaWei OLT Board 10G Symmetrical

Large Image :  MA5800 Series GPON EPON HuaWei OLT Board 10G Symmetrical

Product Details:
Place of Origin: Guangdong, China
Brand Name: HuaWei
Model Number: XGLD
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable

MA5800 Series GPON EPON HuaWei OLT Board 10G Symmetrical

Description
Model Number: XGLD Port Quantity: 8 XE-PON
Forwarding Rate: 80 Gbit/s Dimensions (W X D X H) Mm: 23 X 237 X 396mm
Maximum Power Waste: 61W Working Temperature: -40℃~+65℃
MAX Split Ratio: 1: 256 Warranty: 1 Year
High Light:

EPON HuaWei OLT Board

,

GPON HuaWei OLT Board

,

OLT GPON Board

MA5800 Series GPON EPON HuaWei OLT Board 10G Symmetrical

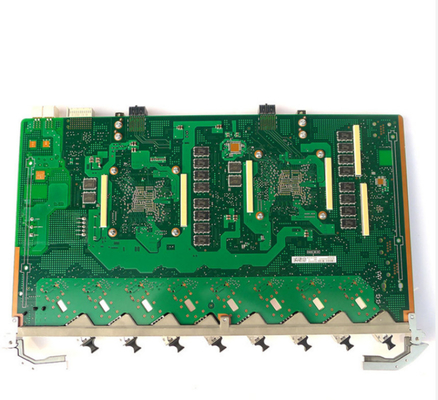

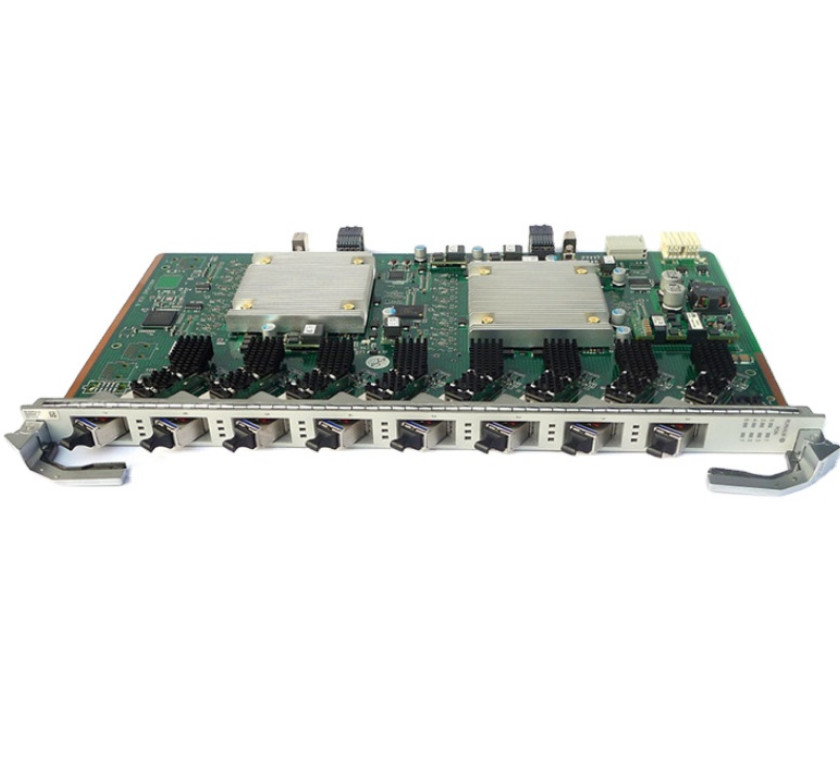

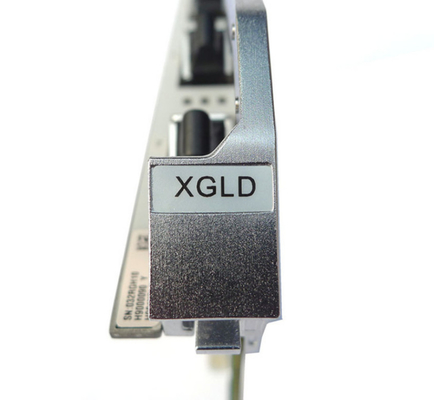

HuaWei MA5800 series GPON EPON OLT interface board XGLD 10 Gigabit 8-port 10G symmetrical



Product Description

XGLD single board is a 8-port XG-PON OLT interface board,which cooperates with ONU to realize EPON access service.



Product Features

*High Density,energy Saving,low power consumption,support 2048 access users

*Manual shutdown of idle PON port to avoid power waste

*Supporting the maximum distance difference between two ONUs and PON ports under the same PON port

*40 km,simplified network planning

*Intelligent Management Channel

*Level 4 HQoS to Improve User Experience

*9216 Jumbo frame,greatly improving transmission efficiency

*Easy to operate and maintain

*Real-time hooligans ONU detection and isolation to ensure stable operation of business

*Variable Length OMCI to Improve Upgrade Efficiency and Shorten Business Interruption Time

*1:256eOTDR,Accurate Fault Responsibility Division and Fast Fault Location



External interface

8 XG-PON Port (SFP+ Optical Module):

Maximum spectral ratio:1:256

Product Specifications
Specification
XGLD
Port quantity
8
MAX Split ratio
1: 256
Forwarding Rate
80Gbit/s
Rate model
Asymmetric Rate Model
Maximum Number of T-CONT
2048
Maximum Number of Service Flows Supported by the Board
16376
Maximum frame length
2052 bytes
Maximum Number of MAC
16384
Maximum differential fibre distance (km)
40
Board supporting downstream FEC
Yes
Board supporting upstream FEC
Yes
CAR
Yes
D-CCAP
No
Temperature query and high temperature alarm
Yes
Automatic power shutdown in case of a high temperature
Yes
Rogue ONT detection
Yes
1588v2
V100R017C10Yes
High temperature automatic concern
Yes
Rogue ONT Detection and Isolation Support
Yes
Working temperature
-40℃~+65℃
Maximum Power waste
61w
Dimensions (W x D x H)
490 mm x 325mm x 75mm



MA5800 Series GPON EPON HuaWei OLT Board 10G Symmetrical 0MA5800 Series GPON EPON HuaWei OLT Board 10G Symmetrical 1
