Product Details:
|
| Model Number: | EP-24V-72W | Interfaces Networking Management: | 10/100 Mbps RJ45 Ports Ethernet In-Band |
|---|---|---|---|
| Input Voltage: | 100-240VAC | Output Voltage: | 24V |
| Output Power: | 72W | Output Current: | 3A |
| Dimensions: | 192 X 43.7 X 115 Mm | Weight: | 650 G (1.43 Lb) |
| High Light: | 24VDC Switched Mode Power Supply,EP-24V-72W,24VDC smps power supply |
||

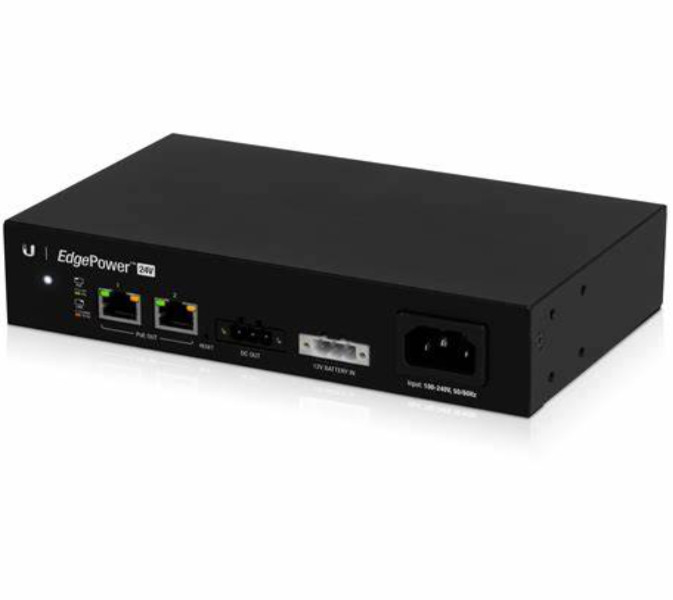

UBNT integrated redundant power supply EP-24V-72W 24V DC POE power supply monitored and managed by UISP
Descriptions
The EdgePower 24V 72W is a UISP monitored and managed 24V DC power supply with integrated battery backup.
This product provides WISPs with an easy-to-install 24V redundant power supply that includes a management user interface and simple 12V battery backup charger with multiple 24V outputs for small sites.
Features:
Specifications
| EdgePower 24V 72W | |
|---|---|
| Dimensions | 192 x 43.7 x 115 mm (7.559 x 1.72 x 4.528") |
| Weight | 650 g (1.43 lb) |
| Interfaces Networking Management |
2) 10/100 Mbps RJ45 Ports Ethernet In-Band |
| PoE Output | (2) 24VDC Passive PoE (Pins 4, 5+; 7, 8-) |
| DC Output | 24V, 3A |
| Power Method | 0 |
| AC Input | 100-240VAC, 50-60 Hz, Universal Input |
| Battery Input | DC Terminal Block |
| Power Supply | 0 |
| AC Input | AC/DC 72W |
| Battery Input | 12VDC Lead Acid Battery* |
| Max. Power Consumption | 0 |
| System | 2W |
| Output | 72W |
| LEDs | 0 |
| System | Status |
| RJ45 Data Ports | PoE; Link/Activity |
| ESD/EMP Protection | Air: ± 12 kV, Contact: ± 12 kV |
| Operating Temperature | 0 to 40° C (32 to 104° F) |
| Operating Humidity | 10 to 90% Noncondensing |
| Certifications | CE, FCC, CCC |
