Product Details:
|
| Product Name: | ZXDU58 B900 | Input Voltage: | 200-240V AC |
|---|---|---|---|
| Output Power: | >500W | Output Current:: | 30A |
| Output Voltage:: | 48V | Output Frequency: | 50/60 Hz |
| Size(W × D × H): | 127*41*250 Mm | Warranty: | 1 Year |
| High Light: | ZTE ZXDU58 B900,ZXD030 Rectifier Modules,S480 Embedded Power Supply |
||

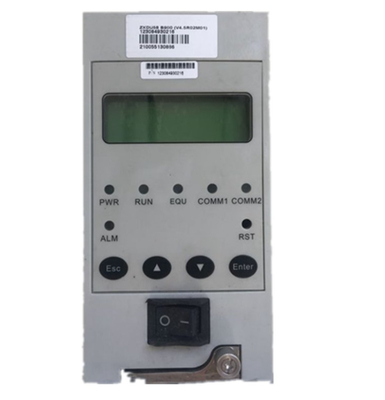

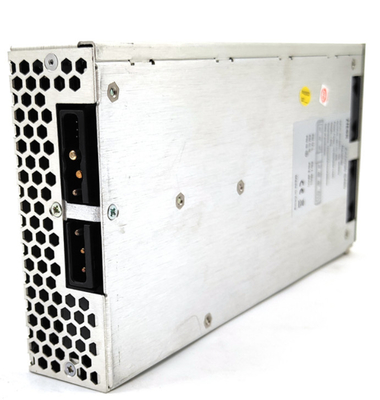

ZTE ZXDU58 B900 Rectifier Modules Embedded Power Supply ZXD030 S480
ZTE ZXDU58 B900 Embedded Power Supply ZXD030 S480 Rectifier Module -48V 30A High Frequency Switching Power Supply
Main description

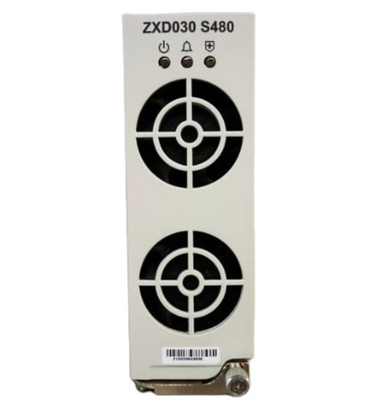

ZTE ZXD030 S480 (V1.0) 30A switching rectifier (hereinafter referred to as ZXD030 S480 rectifier) is one of the switching rectifiers for communication power supply independently developed by ZTE Corporation. It is suitable for 220VAC single-phase AC input, and the rated DC output is 48V/30A. The ZXD030 S480 rectifier can easily form a small power supply system, for example, it can be combined into the ZXDU58B900 communication power supply system to form a 90A power supply system.
Features
1. Highly integrated design, strong equipment storage capacity, can be used as equipment cabinets, battery cabinets, power cabinets and transmission cabinets to support a full range of temperature control methods, adapt to various application environments.
2. Refined intelligent temperature control system, high COP mode priority work; power module efficiency is greater than 96%, reducing system energy consumption -48V DC temperature control system, perfect heat insulation design, to ensure uninterrupted and stable.
3. Temperature environment improves system reliability.
4. Small and beautiful, easy site selection, support rapid deployment.
5. Single station and single control, realize the intelligent remote management of the station
Specifications
| Model | ZXD030 S480 |
| AC input | 200-240V ~ 50/60HZ |
| AC Input | 10A |
| DC output | 48V |
| DC Output | 30A |
| Efficiency | 99% |
| Dimensions (H*W*D) | 260*125*40mm |
| Weight | < 1.6kg |
| Operation temperature | -33 to 55°C |
| Storage temperature | -40 to 70°C |
| Altitude | < 3000m |
| Equalizing Charging Temp.Coefficient | built-in fan, forced convection |
FAQ
Q: Can we get samples?
Answer:Yes, but we need to charge a sample fee.
Q: Can you offer better prices? And discount?
Answer: Yes, Powerlink does not have a minimum order quantity, but different quantities have different prices.
Q: Can you take care of the goods?
Answer: If you wish, we will organize and arrange all the deliveries to your office.
Q: How about the payment item?
Answer: T/T, PAYPAL, Western Union.
Q: Delivery time?
Answer: Sample order, 3-5 working days. For larger orders, 5-8 working days after receiving the deposit.
Q: How long is your warranty period?
Answer: The warranty period is 12 months. This warranty does not cover damage caused by man-made damage, improper maintenance, improper use, negligence, normal wear and tear and force majeure (such as natural disasters, earthquakes, fires, etc.).
