Product Details:
|
| Model Number: | TNF1LDX/TNF2LDX | Port: | 2-port 10 Gbit/s |
|---|---|---|---|
| Typical Power Consumption(W): | 29W | Maximum Power Consumption(W): | 30W |
| Dimension (W X H X D, Mm): | 193.8 X 19.8 X 205.9mm | Working Temperature: | -40℃~+65℃ |
| Weight(kg): | 0.65 Kg | Warranty: | 1 Year |
| High Light: | TNF1LDX HuaWei Optical Transceiver,TNF2LDX HuaWei Optical Transceiver,TNF2LDX |
||

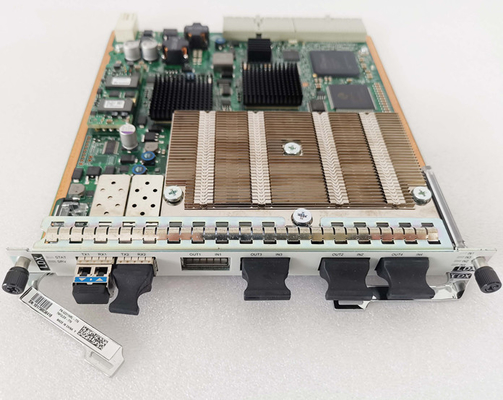

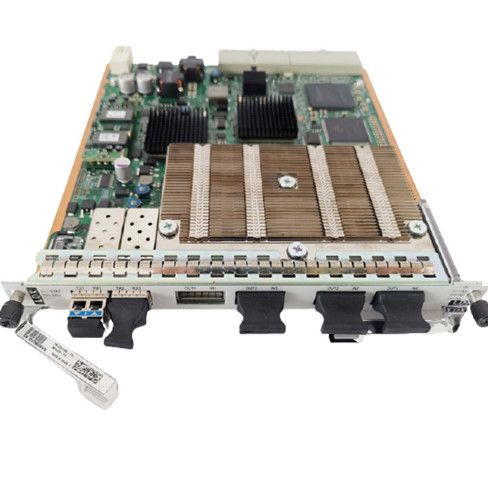

TNF2LDX HuaWei Optical Transceiver OSN1800V 2-port 10 Gbit/s Wavelength Conversion Board
Overview
TNF2LDX 2-port 10 Gbit/s wavelength conversion board
TNF2LDX is a 2-port 10 Gbit/s wavelength conversion board applied to Huawei 1800 I&II Compact, 1800 II TP, 1800 II Enhanced, OSN 1800V. The LDX board consists of the client-side optical module, WDM-side optical module, service processing module, clock module, 1588v2 module, communication module, and power supply module.
Features
* Applied to HW 1800 I&II Compact, 1800 II TP, 1800 II Enhanced, OSN 1800V
* Supports intra-board 1+1 protection, client 1+1 protection
* Supports ODUk SNCP (k = 2)
* Supports ALS
* Supports communication over ESCs
* Supports Optical-layer ASON when working with Z5UXCMS/Z2UXCL/Z8XCH
Tech Specs
| Front Panel | ||
| There are ports on the front panel of the board.
|
||
| Specifications (in OTU mode) | ||
| Basic functions |
Working modes of the board and ports | 2*AP1 ODU2 mode: 2 x 10 Gbit/s client-side service <-> 2 x OTU2/OTU2e |
| Cross-connect functionality | Supports intra-board ODU2 cross-connections | |
| Cross-connection configuration mode | Automatic and manual (default) modes are supported.
When intra-board 1+1 protection is configured for the board, set this parameter to Automatic. When ODUk SNCP protection or any-rate service cross-connection is configured for the board, set this parameter to Manual. |
|
| Non-intrusive monitoring function | Supported on WDM-side ports (IN1/OUT1 to IN4/OUT4) of F1LDX (STND)/F2LDX boards | |
| Specifications (in regeneration mode) | ||
| Basic functions | Working modes of boards and their ports | F2LDX boards working in regeneration mode do not support the setting of their ports' working modes |
| Cross-connect functionality | Not supported | |
| Regeneration rate |
OTU2: 10.71 Gbit/s for OTN services OTU2e: 11.1 Gbit/s for OTN services |
|
| Client-Side Pluggable Optical Module | ||
|
SFP+ -10G(with CDR)-(1471nm to 1611nm)(CWDM)-SMF-70km-I SFP+ -10G(with CDR)-1310nm-SMF-10km SFP+ -10G(with CDR)-1550nm-SMF-10km-I SFP+ -10G(with CDR)-1550nm-SMF-40km SFP+ -8.5G to 10.5G-850nm-MMF-0.3km SFP+ -10G(10GE,LR/LW)-1310nm-SMF-10km SFP+ -2.5G to 11.3G-TX1330/RX1270nm(BIDI)-SMF-10km-I SFP+ -2.5G to 11.3G-TX1270/RX1330nm(BIDI)-SMF-10km-I SFP+ -2.5G to 11.3G-TX1270/RX1330nm(BIDI)-SMF-40km-I SFP+ -2.5G to 11.3G-TX1330/RX1270nm(BIDI)-SMF-40km-I SFP+ -6.144G-850nm-MMF-0.12km-I SFP+ -6.144G-1310nm-SMF-10km-I SFP+ -10G-(1529.17nm to 1560.61nm)(DWDM,50GHz,Tunable)-SMF-80km SFP+ -10G-(1529.17nm to 1560.61nm)(DWDM,50GHz,Tunable)-SMF-40km SFP+ -10G(10GE,ZR/ZW)-1550nm-SMF-80km SFP+ -10G(with CDR)-1550nm-SMF-80km |
||
| WDM-Side Pluggable Optical Module | ||
|
XFP-10G-(1529.17nm to 1560.20nm)(DWDM,100GHz,Fixed)-SMF-40km XFP-10G-(1529.17nm to 1560.61nm)(DWDM,50GHz,Tunable)-SMF-40km XFP-10G-(1471nm to 1611nm)(CWDM)-SMF-70km XFP-10G-(1529.17nm to 1560.61nm)(DWDM,100GHz,Tunable)-SMF-80km XFP-10G-(1529.17nm to 1560.61nm)(DWDM,50GHz,Tunable)-SMF-80km-E XFP-10G-(1529.17nm to 1560.61nm)(DWDM,100GHz)-SMF-80km XFP-10G-TX1330/RX1270nm(BIDI)-SMF-40km XFP-10G-TX1270/RX1330nm(BIDI)-SMF-40km XFP-10G-1310nm-SMF-10kma XFP-10G-1550nm-SMF-40km XFP-10G-1550nm-SMF-80km XFP-10G-(1529.17nm to 1560.61nm)(DWDM,50GHz,Tunable)-SMF-80km |
||
| Version description of the LDX board | ||
| Board | Product Applicable-System Control Board-Initial Board Version Supported by System Control Board | |
| TNF2LDX |
1800 I&II Compact-TNF1SCC/TNF3SCC-V100R006C00 1800 V-TNF5UXCM/TNF5UXCME/TNF5XCH-V100R006C00 1800 V-TNZ5UXCMS-V100R006C10 1800 V-TNZ8XCH-V100R009C00SPC700 1800 II Enhanced-TNZ1UXCL-V100R007C10 1800 II Enhanced-TNZ2UXCL-V100R008C00SPC600 1800 II TP-TMB1SCC-V100R019C10 |
|
| Mechanical Specifications | ||
| Typical Power Consumption(W) | 29 | |
| Maximum Power Consumption(W) | 30 | |
| Dimension (W x H x D, mm) | 193.8 x 19.8 x 205.9 | |
| Weight(kg) | 0.65 kg | |
