Layer 2, PoE switch with (8) GbE RJ45 ports, including (4) 802.3at PoE+ ports.

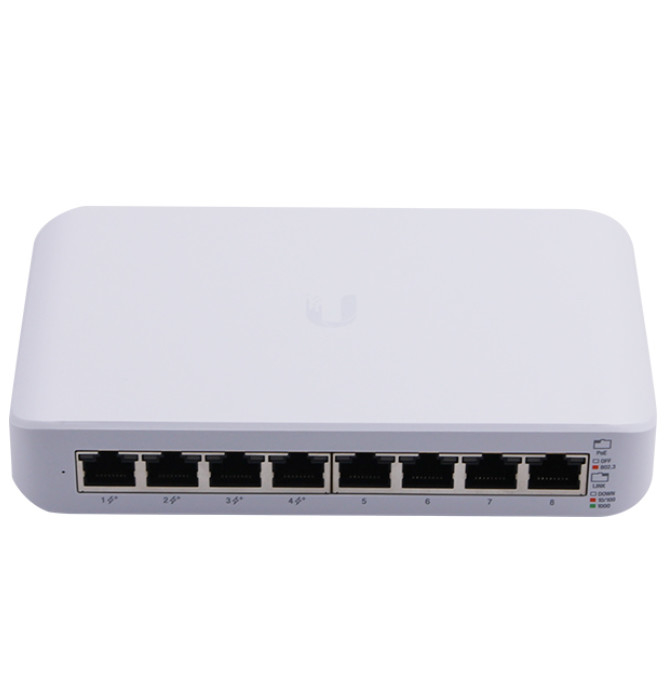

The Switch Lite 8 PoE (USW Lite 8 PoE) is a fully managed switch with (8) GbE RJ45 ports, including (4) 802.3at PoE+ ports, and a 52W total PoE supply for your UniFi access points and other PoE devices. The USW Lite 8 PoE also offers an extensive suite of Layer 2 switching protocols, and can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
- (4) GbE, 802.3at PoE+ ports
- (4) GbE RJ45 ports
- 52W total PoE supply
- Fanless, silent cooling

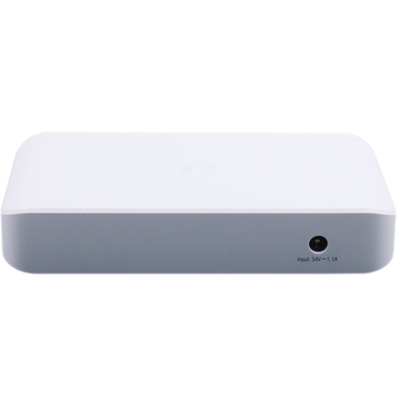

- External, 60W power adapter
- Wall-mountable (kit included)
||99.6 x 163.7 x 31.7 mm (3.92 x 6.44 x 1.25")
||450 g (15.87 oz)
|Total Non-Blocking Line Rate
|Max. Power Consumption
||54VDC, 1.1A Power Adapter
||External 54V/60W Power Adapter
|Supported Voltage Range
||DC 50V to 57V
||(8) 10/100/1000 Mbps Ethernet RJ45 Ports
||(4) PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
|Max. PoE+ Wattage per Port by PSE
||SMB Layer 2 PoE Gigabit Ethernet Switch
||-15 to 40° C (5 to 104° F)
||10 - 90% Noncondensing
||CE, FCC, CCC
||(1) Power, Blue/White
Flashing White: Bootup in Progress
Flashing Blue: Firmware Upgrading
Steady White: Factory Defaults, Awaiting Adoption
Steady Blue: Device is Adopted
||Green: 1G, Amber: 10/100 Mbps
||Amber: IEEE 802.3af/at
