Product Details:
|
Name: | 100G-4*25-1310nm-10km-SM-CFP/TRC5E21FNF-LF420 | Connector: | LC Connector |
---|---|---|---|
Digital Diagnostics: | CFP MSA | Transmission Distance (km): | 10km |
The Type Of Fiber: | SMF | Minimum Extinction Ratio (dB): | 4 |
Working Shell Temperature (C): | 0~70 | Warranty: | 1 Year |
High Light: | HuaWei Fiber SFP Modules,TRC5E21FNF-LF420,03033JRX Fiber SFP Modules |

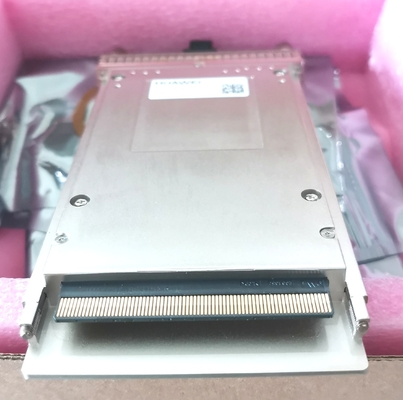

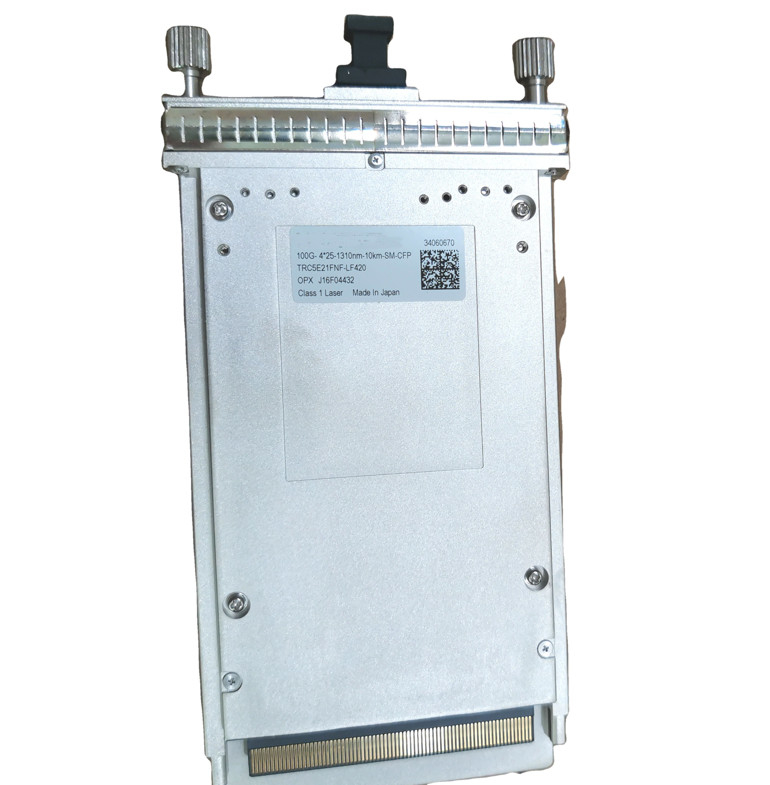

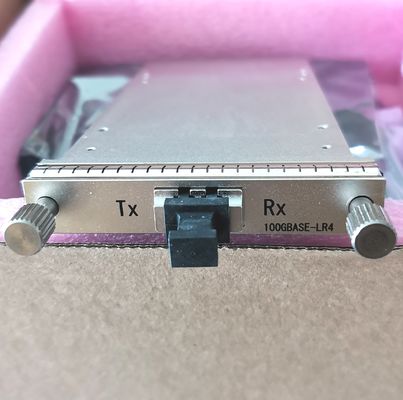

HuaWei 100G-4*25-1310nm-10km-SM-CFP/TRC5E21FNF-LF420 100G optical module Gigabit LC single-mode 03033JRX
Specifications
Project | Description |
BOM | S4017456 |
Model | OSN010N04 |
The encapsulation form | CFP |
Interface standard | IEEE 802.3ba, 100GBASE-LR4 |
Error Rate (BER) | <1x10E–12 |
Working shell temperature (C) | 0~70 |
Digital diagnostics | CFP MSA |
Environmental standards | RoHS |
Safety standards | FCC class B, IEC 60825-1 Class 1 |
ESD(HBM1) (V) | 500 |
Transfer rate (bit/s) | 103.125G |
The connector type | LC |
Transmission distance (km) | 10 |
The type of fiber | SMF |
Center wavelength (nm) |
1295.56 1300.05 1304.58 1309.14 |
Optical transmitter operating wavelength range (nm) |
1294.53-1296.59 1299.02-1301.09 1303.54-1305.63 1308.09-1310.19 |
Maximum transmit optical power (AVG) (dBm) | - |
Maximum Sending Optical Power (OMA) (dBm) | per lane:4.5 |
Minimum transmit optical power (AVG) (dBm) | - |
Minimum sending optical power (OMA) (dBm) | per lane:-1.3 |
Optical receiver operating wavelength range (nm) |
1294.53-1296.59 1299.02-1301.09 1303.54-1305.63 1308.09-1310.19 |
Receive Sensitivity (AVG) (dBm) | - |
Receive Sensitivity (OMA) (dBm) | per lane:-8.6 |
Saturated Optical Power (dBm) | per lane:4.5 |
Minimum extinction ratio (dB) | 4 |
illustrate | 1, the optical module optical power read on the device is the average optical power is not OMA optical power |
FE-SFP optical transceiver
S-SFP-FE-LH40-SM1310 Optical transceiver, eSFP, FE, single-mode module (1310 nm, 40 km, LC)
S-SFP-FE-LH80-SM1550 Optical transceiver, eSFP, FE, single-mode module (1550 nm, 80 km, LC)
GE-SFP optical transceiver
SFP-1000BaseT Copper transceiver, SFP, GE, electrical interface module (100 m, RJ45)
eSFP-GE-SX-MM850 Optical transceiver, eSFP, GE, multimode module (850 nm, 0.5 km, LC)
SFP-GE-LX-SM1310 Optical transceiver, SFP, GE, single-mode module (1310 nm,10 km, LC)
S-SFP-GE-LH40-SM1310 Optical transceiver, eSFP, GE, single-mode module (1310 nm, 40 km, LC)
S-SFP-GE-LH40-SM1550 Optical transceiver, eSFP, GE, single-mode module (1550 nm, 40 km, LC)
S-SFP-GE-LH80-SM1550 Optical transceiver, eSFP, GE, single-mode module (1550 nm, 80 km, LC)
eSFP-GE-ZX100-SM1550 Optical transceiver, eSFP, GE, single-mode module (1550 nm,100 km, LC)
10GE-XFP Optical transceiver
XFP-SX-MM850 Optical transceiver, XFP, 10G, multimode module (850 nm, 0.3km, LC)
XFP-STM64-LX-SM1310 Optical transceiver, XFP, 10G, single-mode module (1310 nm,10 km, LC)
XFP-STM64-LH40-SM1550 Optical transceiver, XFP, 10G, single-mode module (1550 nm, 40 km, LC)
XFP-STM64-SM1550-80 km Optical transceiver, XFP, 10G, single-mode module (1550 nm, 80 km, LC)
10GE-SFP+ Optical transceiver
OMXD30000 Optical transceiver, SFP+, 10G, multimode module (850 nm, 0.3km, LC)
OSX010000 Optical transceiver, SFP+, 10G, single-mode module (1310 nm,10 km, LC)
OSX040N01 Optical transceiver, SFP+, 10G, single-mode module (1550 nm, 40 km, LC)
OSXD22N00 Optical transceiver, SFP+, 10G, single-mode module (1310 nm, 0.22km, LC,LRM)
LE2MXSC80FF0 Optical transceiver, SFP+, 10G, single-mode module (1550 nm, 80 km, LC)
SFP-10G-USR Optical transceiver, SFP+, 10G, multimode module (850 nm, 0.1km, LC)
SFP-10G-ZR Optical transceiver, SFP+, 10G, single-mode module (1550 nm, 80 km, LC)
SFP-10G-AOC3M AOC optical transceiver, SFP+, 850 nm, 1G-10G, 0.003 km
SFP-10G-AOC10M AOC optical transceiver, SFP+, 850 nm, 1G-10G, 0.01 km
SFP-10G-BXU1 10GBase, BIDI optical transceiver, SFP, 10G, single-mode module (TX1270 nm/RX1330 nm, 10 km, LC)
SFP-10G-BXD1 10GBase, BIDI optical transceiver, SFP, 10G, single-mode module (TX1330 nm/RX1270 nm, 10 km, LC)
SFP-10G-ZCW1511 Optical transceiver, SFP+, 10G, single-mode module (CWDM,1511nm,70 km, LC)
SFP-10G-ZCW1471 Optical transceiver, SFP+, 10G, single-mode module (CWDM,1471nm,70 km, LC)
SFP-10G-ZCW1491 Optical transceiver, SFP+, 10G, single-mode module (CWDM,1491nm,70 km, LC)
SFP-10G-ZCW1531 Optical transceiver, SFP+, 10G, single-mode module (CWDM,1531nm,70 km, LC)
SFP-10G-ZCW1551 Optical transceiver, SFP+, 10G, single-mode module (CWDM,1551nm,70 km, LC)
SFP-10G-ZCW1571 Optical transceiver, SFP+, 10G, single-mode module (CWDM,1571nm,70 km, LC)
SFP-10G-ZCW1591 Optical transceiver, SFP+, 10G, single-mode module (CWDM,1591nm,70 km, LC)
SFP-10G-ZCW1611 Optical transceiver, SFP+, 10G, single-mode module (CWDM,1611nm,70 km, LC)
FAQ
1. what's the way to pay?
We support T/T, WESTERN UNION,Paypal
2. What's your shipping way?
Shopped by air sea express
3. What is the product used for packing?
We always use catron, Unless you have different packing needs
